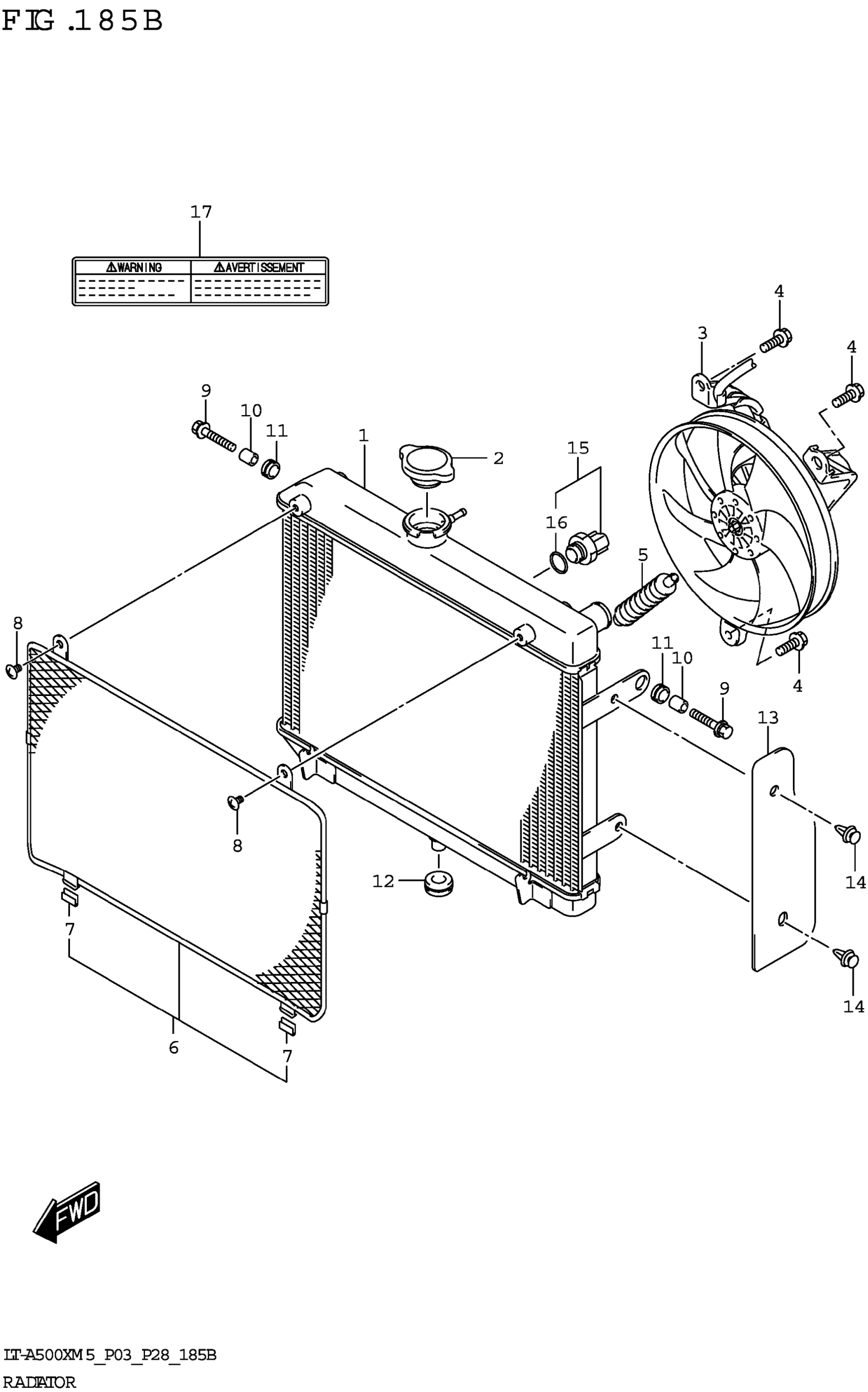

Suzuki LT-A500XM2 (2025) RADIATOR (P28) Diagram

#

Description
Price

1

RADIATOR ASSY This part replaces 17710-31G51.

17710-31G52

$313.40

2

CAP,RADIATOR (1.1)

17730-14G00

$39.21

3

FAN ASSY, RADIATOR

17800-31G20

$218.95

4

BOLT

01550-0610B

$2.43

5

.BOOT,RDTR FAN MOTOR

17820-07G10

$7.04

6

COVER,RADIATOR

17760-09F10

$69.87

7

.PROTECTOR, CTR

17765-09F01

$2.80

8

SCREW

02142-0608A

$1.30

9

BOLT (6X25)

09118-06097

$2.50

10

SPACER (6.5X10X12)

09180-06290

$2.01

11

CUSHION

09320-10042

$2.81

12

CUSHION

09320-12036

$2.21

13

GUARD, RADIATOR FAN

17811-31G00

$59.92

14

CLIP (D:2.4,ID:23.7)

09409-07333

$2.29

15

SWITCH, RADIATOR FAN

17680-50F01

$60.84

16

.O RING

17689-50F00

$2.63

17

LABEL, COOLING FAN

17991-02F41

$3.39
