2004 Suzuki LT-A500FB Secondary Drive Diagram

← All diagrams

Find the part on the Secondary Drive diagram for your 2004 Suzuki LT-A500FB, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

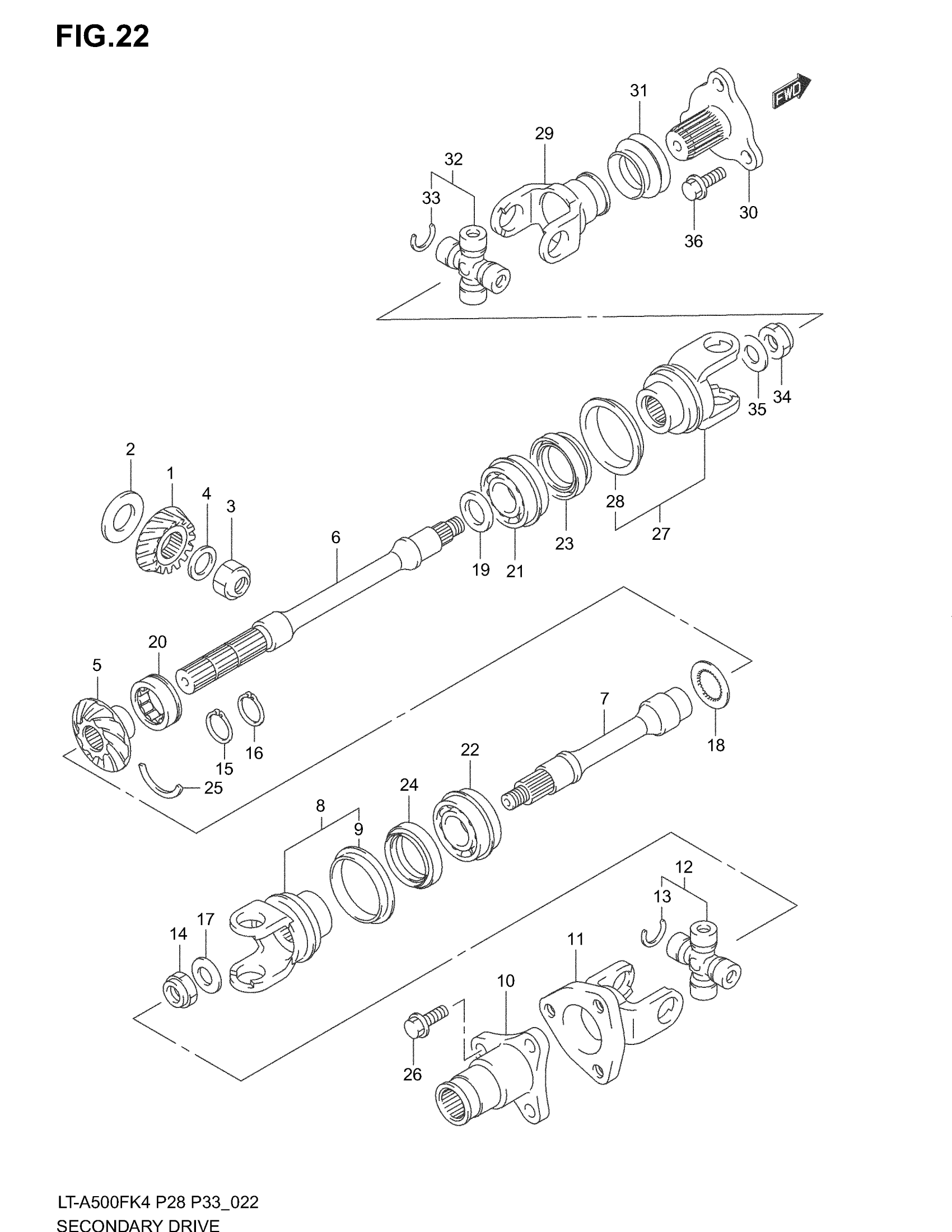

2004 Suzuki LT-A500FB Secondary Drive Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, SEC DRIVE BEVEL | NT:15

24911-44D40

1
Out of stock

2

SHIM SET,SEC DRIVE BEVEL | T:0.25/0.30/0.35/0.90/1.00/ 1.05/1.10/1.15 This part replaces 24935-19810.

24935-03811

1
Out of stock

3

NUT, SEC DRIVE BEVEL GEAR

09140-20012

1
Out of stock

4

WASHER, SEC DRIVE BEVEL GEAR | 20X32X1

09181-20223

1
Out of stock

5

GEAR, SEC DRIVEN BEVEL

24921-09F70

1
Out of stock

6

SHAFT, SEC DRIVEN FRONT

24961-09F70

1
Out of stock

7

SHAFT, SEC DRIVEN OUTPUT REAR

24970-09F52

1
Out of stock

8

YOKE, RR DRIVE OUTPUT | Includes Item(s) 9

27130-03G10

1
Out of stock

9

PLATE, OUTPUT

27592-38F00

1
Out of stock

10

SHAFT, PROPELLER REAR

27150-38F00

1
Out of stock

11

YOKE, PROP SHAFT JOINT REAR

27161-03G00

1
Out of stock

12

JOINT SET, UNIVERSAL RR | Includes Item(s) 13 This part replaces 27200-73813.

27200-73814

1
Out of stock

13

4

$1.81

In stock

14

NUT, REAR DRIVE OUTPUT YOKE

09159-16003

1
Out of stock

17

WASHER, REAR OUTPUT YOKE | 16X30X3

09160-16026

1
Out of stock

18

WASHER, SEC DRIVEN SHAFT

09167-24002

1
Out of stock

19

1

$3.80

In stock

19

1

$3.80

In stock

19

1

$3.80

In stock

19

1

$3.72

In stock

19

1

$3.80

In stock

19

WASHER, 5TH DRIVE | 25X34X1.00 This part replaces 09181-25059.

09181-25167

1
Out of stock

19

1

$3.72

In stock

19

1

$4.18

In stock

19

1

$2.30

In stock

19

1

$4.10

In stock

20

BRG, SEC DRIVEN GEAR M | 30X50X17

09263-30050

1
Out of stock

21

BEARING (25X52X20.6) | 25X52X20.6 This part replaces 09267-25006.

09267-25014

1
Out of stock

22

BEARING (25X52X20.6) | 25X52X20.6 This part replaces 09267-25006.

09267-25014

1
Out of stock

23

OIL SEAL, DRIVEN SHAFT FRONT | 34X52X9

09283-34008

1
Out of stock

24

OIL SEAL, DRIVEN SHAFT REAR | 34X52X9

09283-34008

1
Out of stock

25

RING, SEC DRIVEN BEARING M

09390-50002

1
Out of stock

26

BOLT, PROPELLER SHAFT REAR | 10X20

09103-10310

3
Out of stock

27

YOKE, FRONT DRIVE OUTPUT | Includes Item(s) 28

27130-03G00

1
Out of stock

28

PLATE, OUTPUT

27592-38F00

1
Out of stock

29

1

$154.17

In stock

30

SHAFT, PROPELLER

27150-03G10

1
Out of stock

31

BOOT, PROPELLER SHAFT

27153-03G00

1
Out of stock

32

JOINT SET,UNIVERSAL | Includes Item(s) 33 This part replaces 27200-19810.

27200-19811

1
Out of stock

33

CIRCLIP

09380-20016

4
Out of stock

34

NUT, FRONT DRIVE OUTPUT YOKE

09159-16003

1
Out of stock

35

WASHER, FR DRIVE OUTPUT YOKE | 16X30X3

09160-16026

1
Out of stock

36

BOLT, PROPELLER SHAFT (10X20)

09103-10310

3
Out of stock
