Description

Price

1

LEVER ASSY, TRANSMISSION

57810-03G51

$709.38

2

KNOB, T/M LEVER

57830-03G01

$46.16

3

SCREW, KNOB

09139-04007

$2.50

4

BOOT, T/M LEVER

57841-03G00

$33.82

5

COVER, T/M LEVER UPPER This part replaces 57843-03G00.

57843-03G01

$48.50

6

COVER, T/M LEVER LOWER

57844-03G00

$48.50

7

SCREW

09139-06083

$2.24

8

CUSHION, T/M LEVER

57842-03G00

$8.80

9

PLATE, T/M LEVER

57820-03G51

Unavailable

10

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.31

11

ROD, DETENT

57863-03G00

$8.80

12

CABLE, T/M GEAR SHIFT

58680-03G50

$107.18

13

WASHER This part replaces 08322-01083.

08322-0108A

$2.18

14

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.43

15

BUSH, REAR

58821-03G00

$3.79

16

BRACKET, T/M CABLE

58870-03G50

Unavailable

17

CABLE, INTER LOCK

58650-03G01

$77.75

18

SPRING,INTER LO This part replaces 58658-38F00.

58658-38F01

$11.40

19

E RING

09383-19005

$5.88

20

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.76

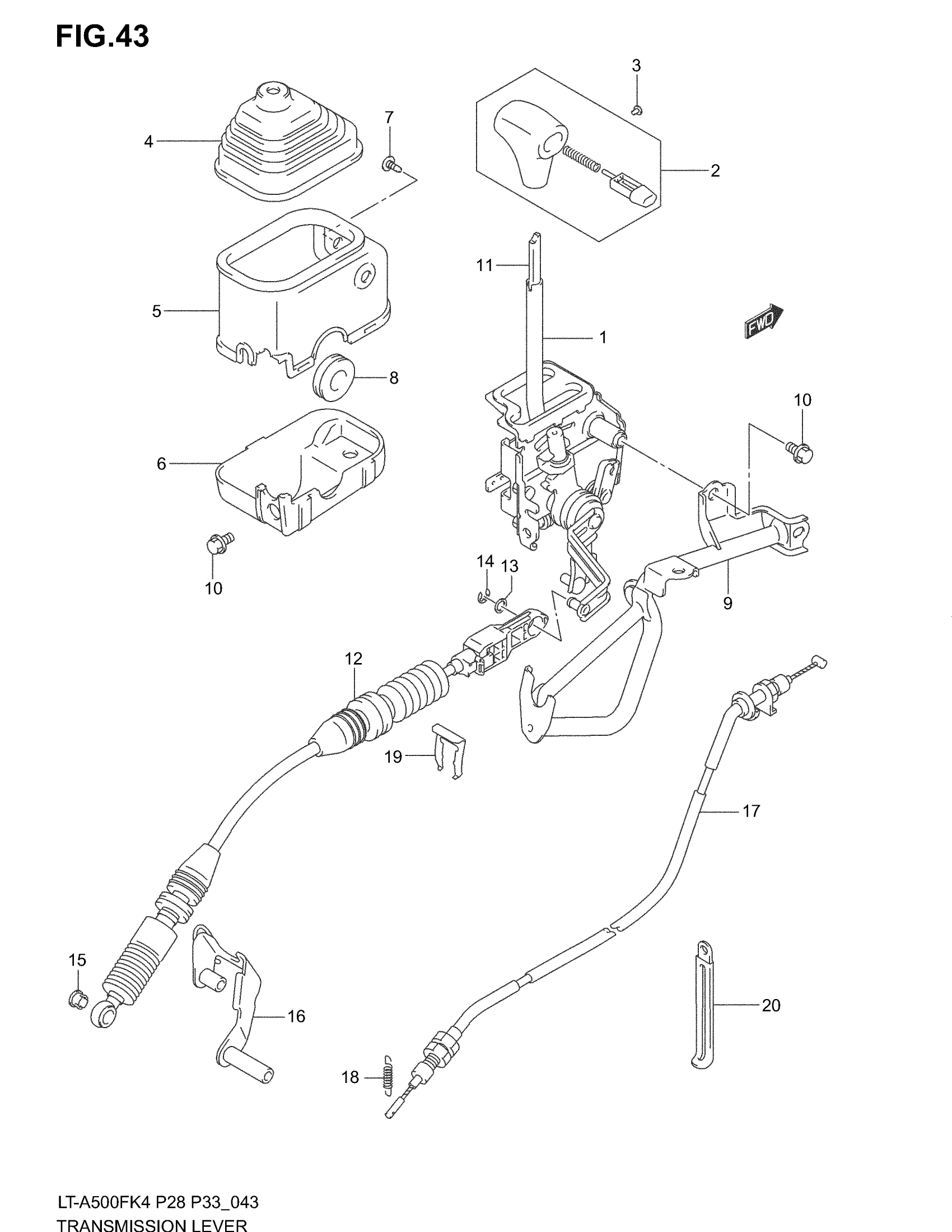

Suzuki LT-A500FB (2004) SHIFT LEVER Diagram
