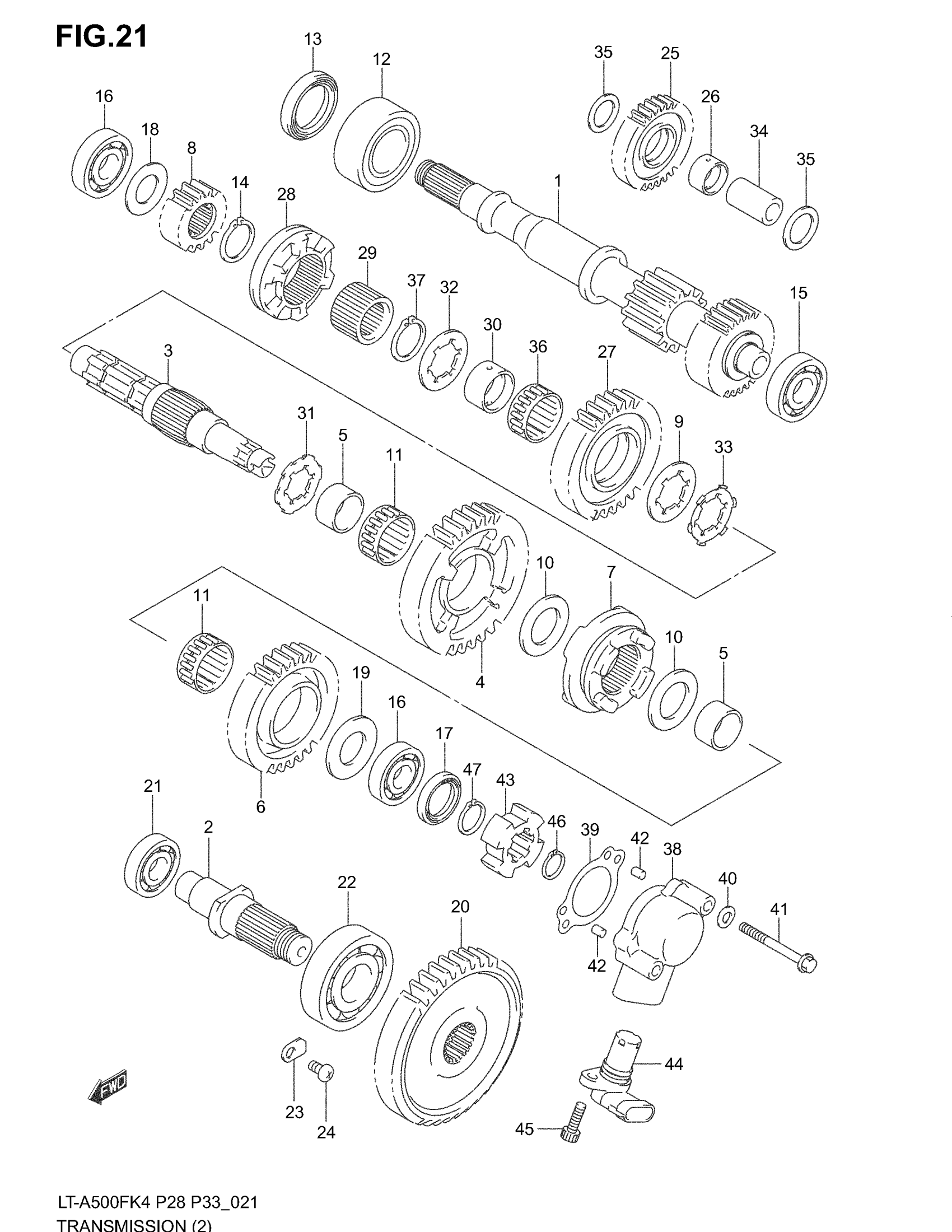

Suzuki LT-A500FB (2004) TRANSMISSION (2) Diagram

#

Description
Price

1

SHAFT, DRIVE | NT:16/25

29111-03G00

Unavailable

2

SHAFT, SUB T/M OUTPUT

29121-03G00

Unavailable

3

SHAFT, SUB T/M COUNTER

29131-03G10

Unavailable

4

GEAR, SUB T/M DRIVEN | NT:40

29311-03G20

Unavailable

5

BUSH, SUB T/M DRIVEN

29315-09F51

$31.70

6

GEAR, SUB T/M DRIVEN HI | NT:30

29321-03G01

Unavailable

7

DOG, SLIDING

29331-03G20

Unavailable

8

GEAR, SUB T/M DRIVEN NO.2 | NT:16

29411-09F50

Unavailable

9

WASHER, DRIVEN GEAR

09167-25017

$4.20

10

WASHER, DRIVEN GEAR | 25X40X1.5

09181-25268

$2.90

11

BEARING, SUB T/M GEAR | 30X35X12

09263-30018

$28.45

12

BEARING (30X62X23.8) | 30X62X23.8

09267-30005

$129.92

13

SEAL, DRIVE SHAFT | 30X44X7

12281-87J00

$14.03

14

SNAP RING

09380-25003

$2.80

15

BEARING, DRIVE SHAFT LH | 20X47X14

09262-20069

$21.00

16

BEARING, COUNTER SHAFT | 20X52X15

09262-20073

$21.00

17

SEAL, COUNTER SHAFT RH

09283-20037

$8.90

18

WASHER, DRIVE GEAR RH

08211-20361

Unavailable

19

WASHER, DRIVE GEAR

08211-20401

Unavailable

20

GEAR, SUB T/M DRIVEN NO.2 | NT:41

29421-03G00

$176.47

21

BEARING, OUTPUT SHAFT

08110-63040

$31.12

22

BEARING, OUTPUT SHAFT

29122-03G00

$259.63

23

RETAINER, BEARING

24741-03G00

Unavailable

24

SCREW (6X12)

09125-06086

$3.00

25

GEAR, REVERSE IDLE | NT:28

24561-09F50

Unavailable

26

BUSH, REVERSE IDLE GEAR

29222-44D00

Unavailable

27

GEAR, REVERSE DRIVEN | NT:32

24571-03G10

Unavailable

28

DOG, REVERSE GEAR

24581-03G10

Unavailable

29

SPACER, REVERSE SELECT

24582-03G00

Unavailable

30

BUSH, REVERSE DRIVEN GEAR

29315-09F51

$31.70

31

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.58

32

WASHER, REVERSE DRIVEN GEAR

09167-25017

$4.20

33

WASHER, LOCK

09169-25001

$2.95

34

SHAFT, REVERSE IDLE | 14X20X34

09180-14014

$19.02

35

WASHER, REVERSE IDLE GEAR | 20X30X1.0

09181-20195

$2.68

36

BEARING, REVERSE DRIVEN GEAR | 30X35X12.8

09263-30018

$28.45

37

SNAP RING

09380-25003

$2.80

38

HOUSING, ODOMETER GEAR

26441-03G00

Unavailable

39

GASKET

26451-03G00

Unavailable

40

GASKET (5.8X13X1.2)

09168-06023

$2.01

41

BOLT This part replaces 01547-06453.

01547-0645B

$2.73

42

PIN

04221-06129

$1.87

43

ROTOR, SPEED

34981-03G00

Unavailable

44

SENSOR, SPEED

34990-10F00

$178.92

45

BOLT, SENSOR (6X16)

09106-06073

$2.38

46

CIRCLIP This part replaces 08331-31136.

08331-3113A

$2.43

47

CIRCLIP This part replaces 08331-31176.

08331-31179

$1.88
