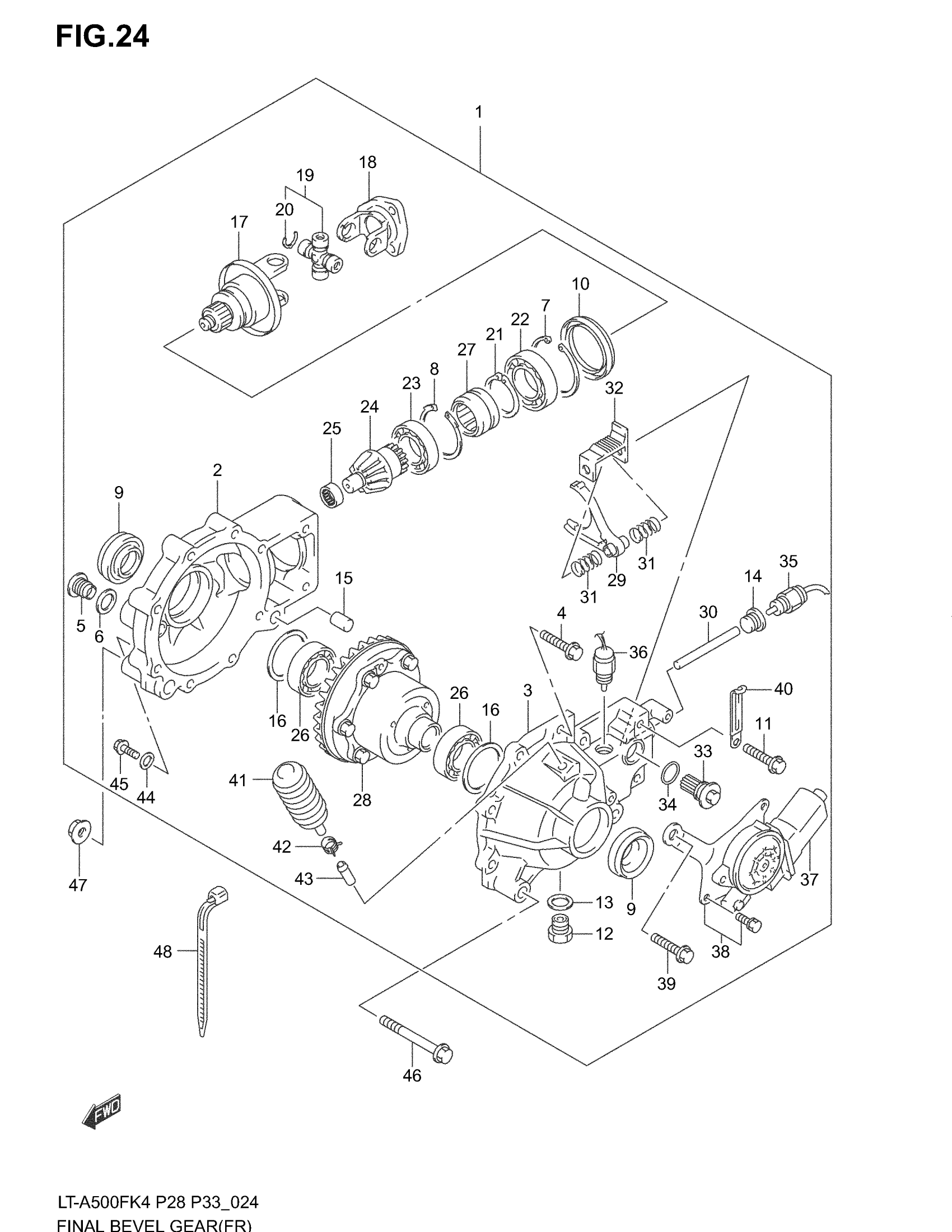

Find the part on the Final Bevel Gear diagram for your 2004 Suzuki LT-A500FB, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Suzuki LT-A500FB Final Bevel Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE ASSY, FRONT DIFFERENTIAL | Includes Item(s) 2 - 37 This part replaces 27400-03G12.

27400-03G13

1
Out of stock

2

HOUSING FINAL DRIVE, FRONT

27451-38FA0

1
Out of stock

3

COVER FINAL DRIVE, FRONT

27461-03GA0

1
Out of stock

4

BOLT (8X25) This part replaces 27401-38FA0.

27401-38FA1

8
Out of stock

5

PLUG

27409-38FA0

1
Out of stock

6

.WASHER This part replaces 27407-38FA0.

27407-31GA0

1
Out of stock

7

RING SNAP

27403-38FA0

1
Out of stock

8

RING SNAP

27403-38FB0

1
Out of stock

9

OIL SEAL

27406-38FD0

2
Out of stock

10

OIL SEAL

27406-38FB0

1
Out of stock

11

BOLT (6X12)

27401-03GC0

2
Out of stock

12

PLUG

27409-38FB0

1
Out of stock

13

WASHER

27407-38FB0

1
Out of stock

14

PLUG This part replaces 27409-03GA0.

27409-03GA1

1
Out of stock

15

COLLAR

27404-38FA0

1
Out of stock

16

SHIM SET | T:0.70/0.75/0.80/0.85/0.90/0.95/ 1.00/1.05/1.10/1.15/1.20/1.25/ 1.30/1.35/1.40/1.45

27445-38FA0

2
Out of stock

17

YOKE ASSY

27130-03GA0

1
Out of stock

18

YOKE, PROP SHAFT JOINT

27161-03GA0

1
Out of stock

19

JOINT SET,UNIVERSAL This part replaces 27200-19810.

27200-19811

1
Out of stock

20

CIRCLIP

09380-20016

4
Out of stock

21

SNAP RING

27403-38FC0

1
Out of stock

22

BEARING

27405-38FA0

1
Out of stock

23

BEARING

27405-38FB0

1
Out of stock

24

PINION, DRIVE

27311-03GA0

1
Out of stock

25

BEARING

27405-38FC0

1
Out of stock

26

BEARING

27405-38FD0

2
Out of stock

27

SLEEVE This part replaces 27371-38FA0.

27371-31GA0

1
Out of stock

28

GEAR ASSY

27320-03GA0

1
Out of stock

29

FORK, SHIFT

27941-03GA0

1
Out of stock

30

ROD, SHIFT

27921-03GA0

1
Out of stock

31

SPRING, SHIFT

27402-03GA0

2
Out of stock

32

BRACKET, ROD

27911-03GA0

1
Out of stock

33

GEAR, SHIFT

27931-03GA0

1
Out of stock

34

SEAL This part replaces 27406-03GA0.

27406-03GA1

1
Out of stock

35

SWITCH ASSY, 2WD

27425-03GA0

1
Out of stock

36

SWITCH ASSY, 4WD

27425-03GB0

1
Out of stock

37

DVC ASSY

27421-03GA0

1
Out of stock

38

BRACKET SET, ACTUATOR | Includes Item(s) 39 - 45

27420-03GA0

1
Out of stock

39

BOLT (6X12)

27401-03GA0

2
Out of stock

40

CLIP

27403-03GA0

1
Out of stock

41

CASE,BREATHER This part replaces 27491-38F00.

27491-38F10

1
Out of stock

42

CLAMP

09401-08411

1
Out of stock

43

UNION

09364-08003

1
Out of stock

44

WASHER, LEVEL PLUG

27407-38FD0

1
Out of stock

45

PLUG, LEVEL

27409-38FC0

1
Out of stock

46

BOLT, FRONT DIFFERENTIAL

09103-10148

2
Out of stock

47

NUT, FRONT DIFFERENTIAL

08319-31107

2
Out of stock

48

CLAMP (L:125)

09407-14403

1
Out of stock
