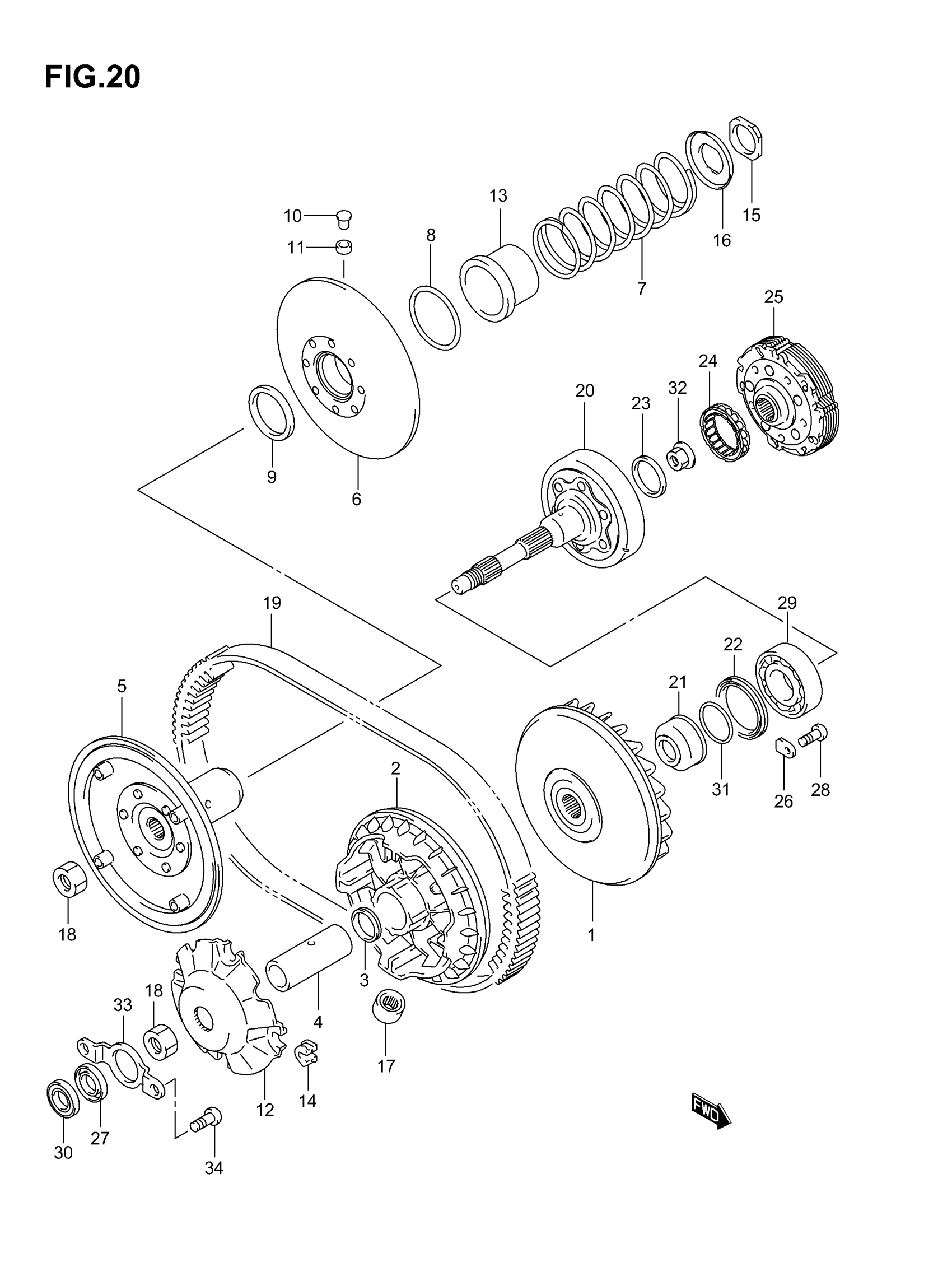

Find the part on the Transmission diagram for your 2007 Suzuki LT-A500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki LT-A500F Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FACE, FIXED DRIVE

21110-09F60

1
Out of stock

2

FACE, MOVABLE DRIVE

21120-09F60

1
Out of stock

3

SEAL, MOVABLE DRIVE

21124-09F50

2
Out of stock

4

SPACER, MOVABLE DRIVE

21125-09F50

1
Out of stock

5

FACE, FIXED DRIVEN

21210-09F70

1
Out of stock

6

FACE, MOVABLE DRIVEN

21240-09F70

1
Out of stock

7

SPRING, MOVABLE DRIVEN

21243-09F52

1
Out of stock

8

O-RING

21245-15F00

2
Out of stock

9

SEAL, MOVABLE DRIVEN

21247-15F00

2
Out of stock

10

PIN,MOVABLE DRIVEN

21248-15F01

4
Out of stock

11

SPACER,MOVABLE DRIVEN PIN

21249-15F00

4
Out of stock

12

PLATE, MOVABLE DRIVE

21431-09F60

1
Out of stock

13

SHEET,MOVABLE DRIVEN

21471-09F60

1
Out of stock

14

DAMPER,MOVABLE DRIVE PLATE

21481-14F00

4
Out of stock

15

NUT, DRIVEN PULLEY

21518-09F50

1
Out of stock

16

HOLDER, MOVABLE DRIVEN

21519-09F52

1
Out of stock

17

ROLLER, MOVABLE DRIVE

21650-09F51

8
Out of stock

18

NUT, FACE

09140-20017

2
Out of stock

19

V BELT, DRIVE

27601-09F60

1
Out of stock

20

HOUSING, CLUTCH

21100-09F60

1
Out of stock

21

SPACER, FIXED DRIVE LH

21102-09F51

1
Out of stock

22

SEAL,CLUTCH HOUSING SPACER OI This part replaces 21104-09F56.

21104-09F60

1
Out of stock

23

SEAL, CLUTCH HOUSING

21105-09F50

1
Out of stock

24

CLUTCH,PRI DRIVE ONE WAY

21273-44D00

1
Out of stock

25

CLUTCH ASSY, SHOE

21500-03G00

1
Out of stock

26

RETAINER, BEARING

24741-21A00

2
Out of stock

27

SEAL, CLUTCH HOUSING RH

24754-09F50

2
Out of stock

28

2

$3.00

In stock

28

SCREW, RETAINER (6X12) | '05/1%

09125-06110

2
Out of stock

29

BEARING (40X80X18)

09262-40010

1
Out of stock

30

BEARING (17X47X11.5)

09262-17048

1
Out of stock

31

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

1
Out of stock

32

NUT This part replaces 09159-18020.

09159-18023

1
Out of stock

33

RETAINER, BEARING

24751-09F60

1
Out of stock

34

SCREW (6X12)

09126-06011

2
Out of stock
