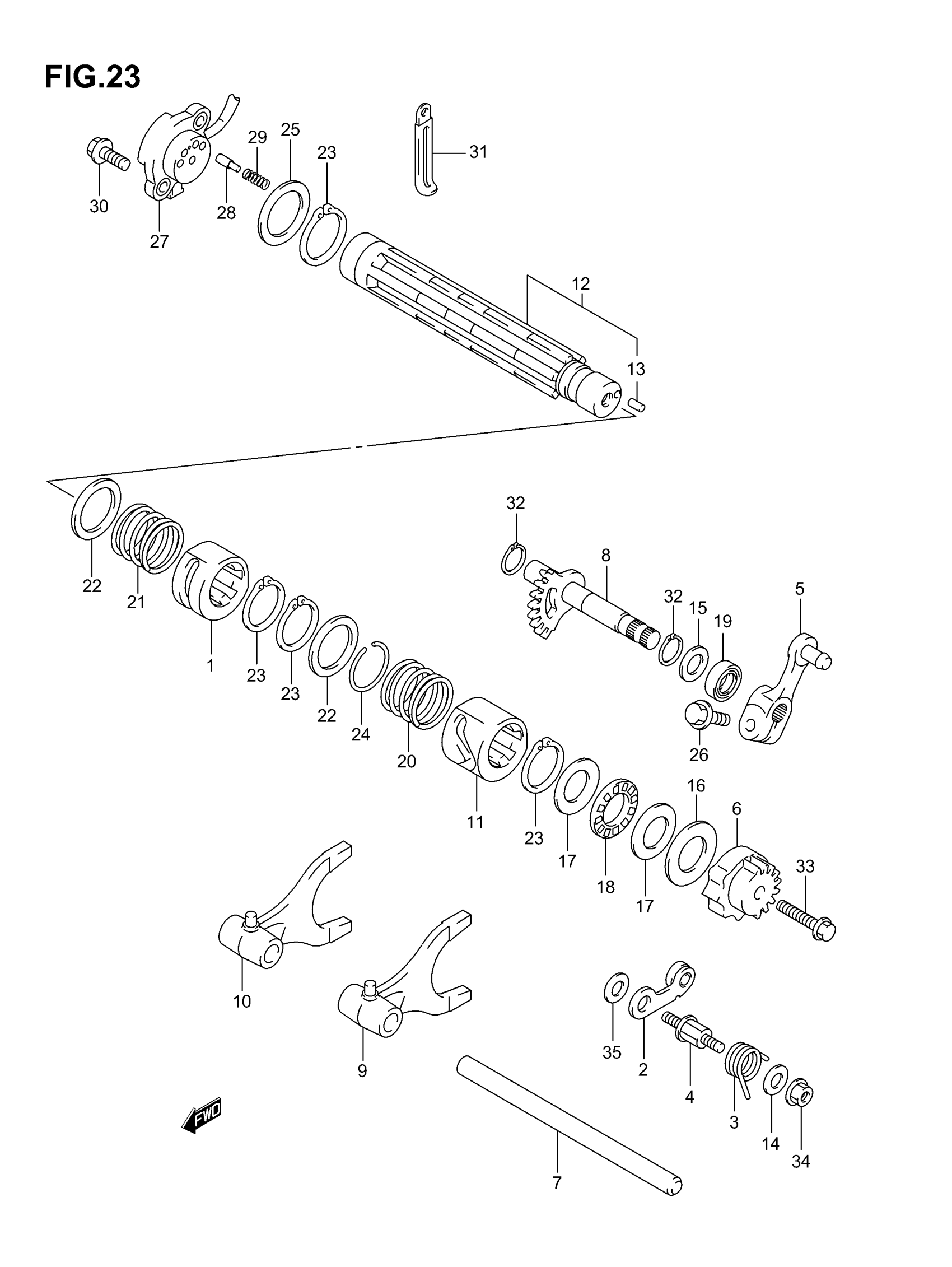

Suzuki LT-A500F (2007) GEAR SHIFTING Diagram

#

Description
Price

1

CAM, GEAR SHIFT REVERSE

25321-03G20

Unavailable

2

STOPPER, SHIFT CAM

25350-24B00

$16.77

3

SPRING, SHIFT CAM STOPPER

25355-03G00

$5.75

4

SUPPORT, SHIFT CAM

25356-12C00

$19.60

5

ARM, SELECT

25360-03G20

Unavailable

6

PLATE, GEAR SHIFT CAM

25381-38F00

Unavailable

7

SHAFT, GEAR SHIFT FORK

25411-30B00

Unavailable

8

SHAFT, SUB T/M GEAR

25510-03G00

Unavailable

9

FORK, GEAR SHIFT

29510-03G20

$118.53

10

FORK, GEAR SHIFT

29510-03G20

$118.53

11

CAM, GEAR SHIFT

29611-03G20

Unavailable

12

SHAFT,SUB T/M G | Includes Item(s) 13 This part replaces 29620-03G10.

29620-03G11

Unavailable

13

PIN (4X13.8)

04221-04089

$1.10

14

WASHER, SPRING STOPPER | 6.5X16X2.3

09160-06022

Unavailable

15

WASHER, SUB T/M SHIFT | 12X20X1.0

09181-12167

$2.24

16

WASHER, SHIFT CAM PLATE | 20X28X0.5

09181-20158

$3.38

17

WASHER, SUB T/M SHIFT | 20X34X1.0

09181-20251

$2.77

18

BEARING (20X35X2.0)

09263-20014

Unavailable

19

OIL SEAL (12X22X9)

09285-12006

$5.70

20

SPRING, SUB T/M SHIFT CAM

29612-38F00

Unavailable

21

SPRING, REVERSE SHIFT CAM

29612-38F00

Unavailable

22

WASHER, SHIFT CAM SPRING | 25X32X1.0

09181-25139

$2.80

23

CIRCLIP, SHIFT CAM SPRING

08331-31256

$1.09

24

C RING, SUB T/M CAM STOP

09380-25012

$2.68

25

WASHER, SHIFT SHAFT | 25X34X1.0

09181-25167

$2.85

26

BOLT, SHIFT LEVER

01550-0620A

$1.97

27

BASE ASSY, GEAR SHIFT TERM

37720-03G00

$164.45

28

CONTACT

09209-05011

$2.02

29

SPRING

09440-04010

$1.52

30

BOLT, GEAR SHIFT SW This part replaces 07120-05163.

07120-0516B

$2.62

31

CLAMP (L:45)

09404-06429

$1.82

32

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.77

33

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

34

NUT

08316-1006A

$2.19

35

WASHER

08211-06141

$1.61
