2007 Suzuki LT-A500F Front Drive Shaft Diagram

← All diagrams

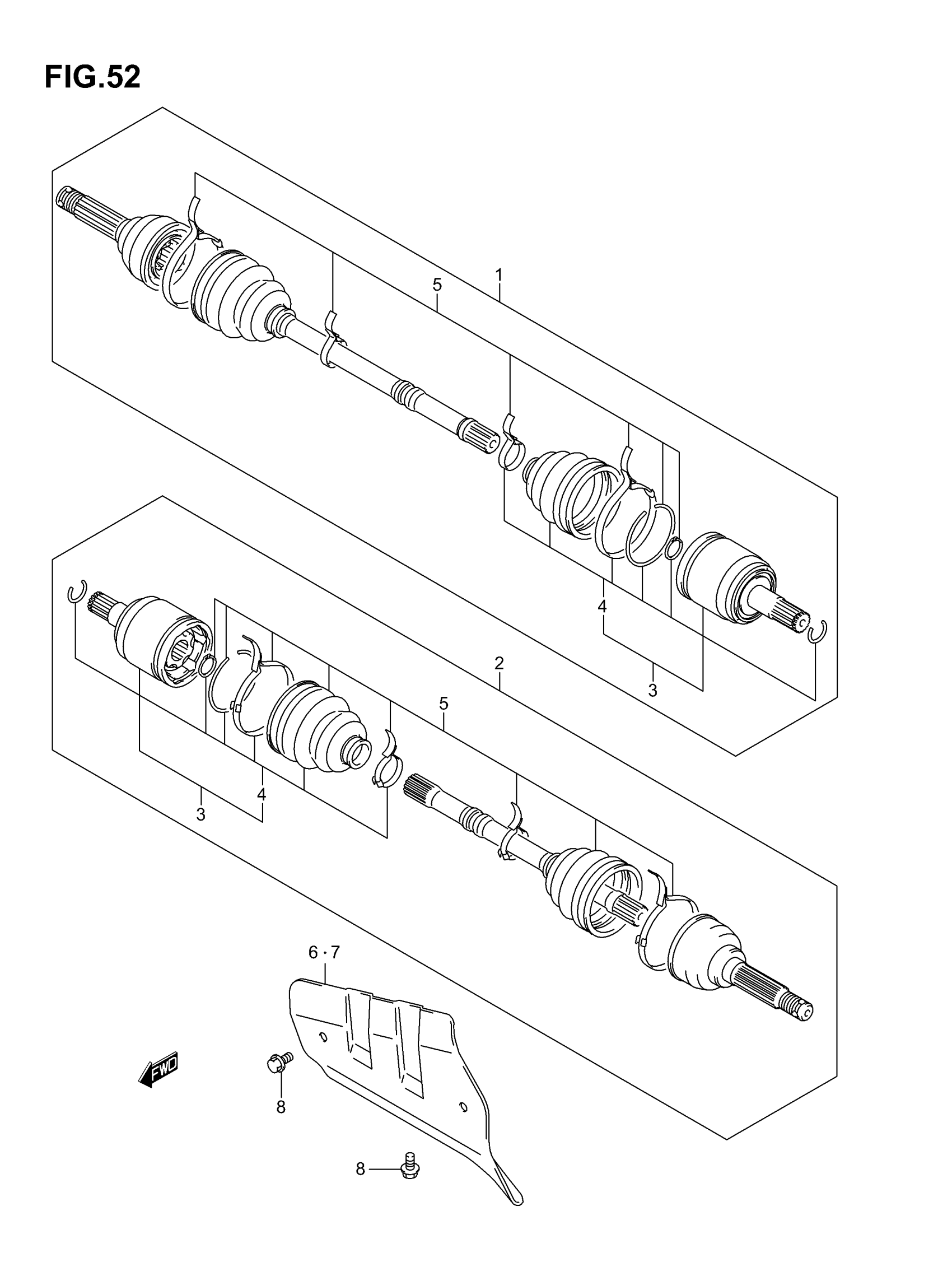

Find the part on the Front Drive Shaft diagram for your 2007 Suzuki LT-A500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki LT-A500F Front Drive Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT ASSY,FRT | MODEL K4/K5/K6 This part replaces 54901-03G20.

54901-03G23

1
Out of stock

1

SHAFT ASSY,FRT | MODEL K7 This part replaces 54901-03G22.

54901-03G23

1
Out of stock

2

SHAFT ASSY,FRT | MODEL K4/K5/K6 This part replaces 54902-03G20.

54902-03G23

1
Out of stock

2

SHAFT ASSY,FRT | MODEL K7; Includes Item(s) 3 - 5 This part replaces 54902-03G22.

54902-03G23

1
Out of stock

3

JOINT SET | MODEL K4/K5/K6 This part replaces 54933-38F10.

54933-38FV0

2
Out of stock

3

JOINT SET | MODEL K7 This part replaces 54933-38F12.

54933-38FV0

2
Out of stock

4

BOOT SET,INNER | MODEL K4/K5/K6 This part replaces 54931-38F10.

54931-38FV0

2
Out of stock

4

BOOT SET,INNER | MODEL K7 This part replaces 54931-38F12.

54931-38FV0

2
Out of stock

5

BOOT SET,OUTER | MODEL K4/K5/K6 This part replaces 54930-03G20.

54930-03GV0

2
Out of stock

5

BOOT SET,OUTER | MODEL K7 This part replaces 54930-03G22.

54930-03G23

2
Out of stock

6

PROTECTOR,FRONT DRIVE SHAFT,R | MODEL K4/K5/K6 This part replaces 54903-38F10.

54903-27H01

1
Out of stock

6

PROTECTOR,FRONT DRIVE SHAFT,R | MODEL K7 This part replaces 54903-38F20.

54903-27H01

1
Out of stock

7

PROTECTOR,FR D/ | MODEL K4/K5/K6 This part replaces 54904-38F10.

54904-27H00-291

1
Out of stock

7

PROTECTOR,FR D/ | MODEL K7 This part replaces 54904-38F20.

54904-27H00-291

1
Out of stock

8

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

6
Out of stock
