2003 Suzuki LT-A500F Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2003 Suzuki LT-A500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

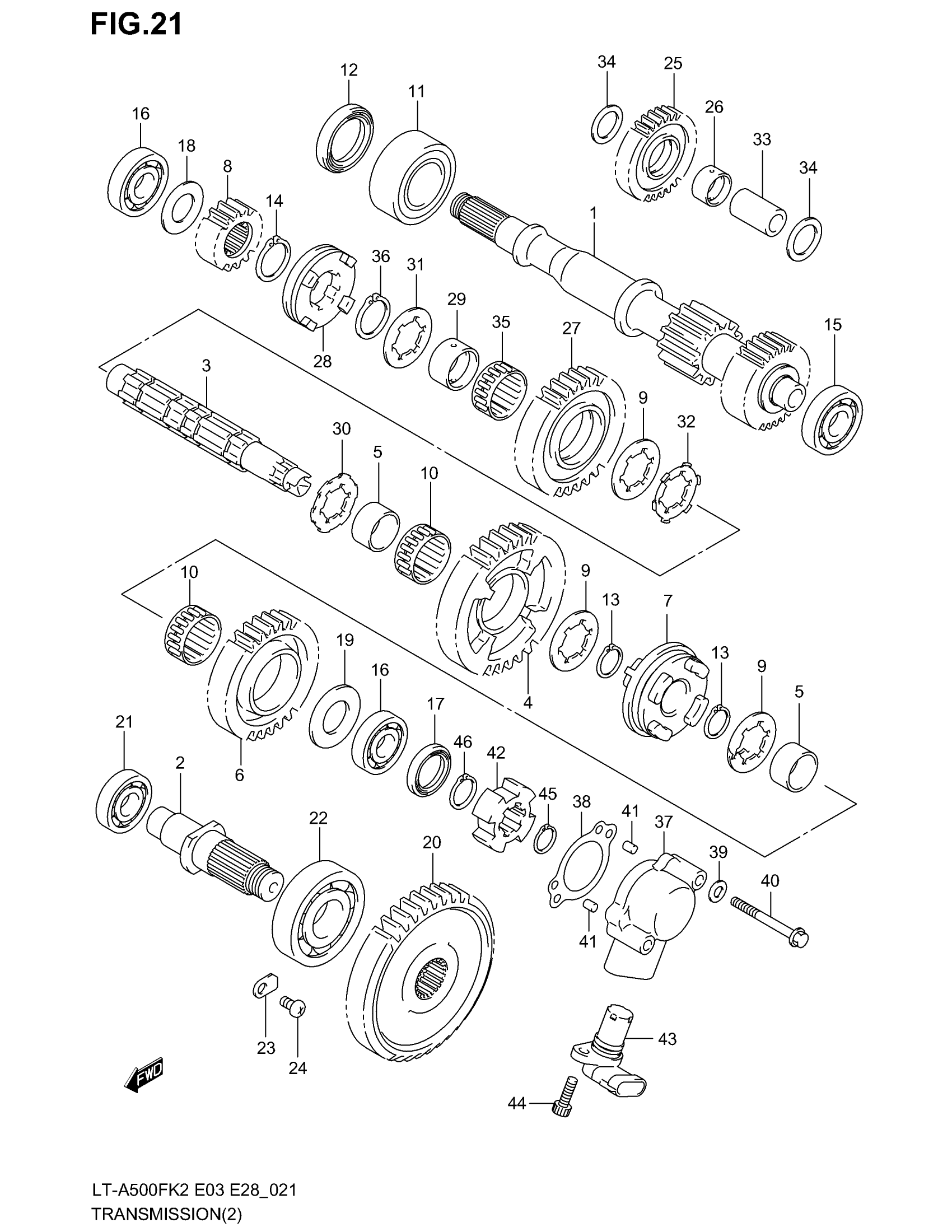

2003 Suzuki LT-A500F Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, DRIVE | NT:16/25

29111-03G00

1
Out of stock

2

SHAFT, SUB T/M OUTPUT

29121-09F50

1
Out of stock

3

SHAFT, SUB T/M COUNTER

29131-03G00

1
Out of stock

4

GEAR, SUB T/M DRIVEN LOW | NT:40

29311-09F51

1
Out of stock

5

BUSH, SUB T/M DRIVEN

29315-09F51

2
Out of stock

6

GEAR, SUB T/M DRIVEN HI | NT:33

29321-03G01

1
Out of stock

7

DOG, SLIDING

29331-03G00

1
Out of stock

8

GEAR, SUB T/M DRIVE NO.2 | NT:16

29411-09F50

1
Out of stock

9

WASHER, DRIVEN GEAR

09167-25017

3
Out of stock

10

BEARING, SUB T/M GEAR | 30X35X12

09263-30018

2
Out of stock

11

1

$129.92

In stock

12

SEAL, DRIVE SHAFT | 30X44X7

12281-87J00

1
Out of stock

13

SNAP RING

09380-25003

2
Out of stock

14

SNAP RING

09380-25003

1
Out of stock

15

BEARING, DRIVE SHAFT LH | 20X47X14

09262-20069

1
Out of stock

16

BEARING, COUNTER SHAFT | 20X52X15

09262-20073

2
Out of stock

17

1

$8.90

In stock

18

WASHER, DRIVE GEAR RH

08211-20361

1
Out of stock

19

WASHER, DRIVE GEAR

08211-20401

1
Out of stock

20

1

$170.02

In stock

21

BEARING, OUTPUT SHAFT | 20X52X15

09262-20073

1
Out of stock

22

1

$110.43

In stock

23

RETAINER, BEARING

24741-21A00

2
Out of stock

24

SCREW This part replaces 02112-06123.

02112-0612A

2
Out of stock

25

GEAR, REVERSE IDLE | NT:28

24561-09F50

1
Out of stock

26

BUSH, REVERSE IDLE GEAR

29222-44D00

1
Out of stock

27

GEAR, REVERSE DRIVEN | NT:32

24571-03G00

1
Out of stock

28

DOG, REVERSE GEAR

24581-03G00

1
Out of stock

29

BUSH, REVERSE DRIVEN GEAR

29315-09F51

1
Out of stock

30

WASHER,LOCK (25.1X41X1.5)

09167-25013

1
Out of stock

31

WASHER, REVERSE DRIVEN GEAR

09167-25017

1
Out of stock

32

WASHER, LOCK

09169-25001

1
Out of stock

33

1

$19.02

In stock

34

WASHER, REVERSE IDLE GEAR | 20X30X1.0

09181-20195

2
Out of stock

35

BEARING, REVERSE DRIVEN GEAR | 30X35X12.8

09263-30018

1
Out of stock

36

SNAP RING

09380-25003

1
Out of stock

37

HOUSING, ODOMETER GEAR

26441-03G00

1
Out of stock

38

GASKET

26451-03G00

1
Out of stock

39

GASKET

09168-06023

2
Out of stock

40

BOLT This part replaces 01547-06453.

01547-0645B

2
Out of stock

41

PIN

04221-06129

2

$1.87

In stock

42

ROTOR, SPEED

34981-03G00

1
Out of stock

43

SENSOR, SPEED

34990-10F00

1

$178.92

In stock

44

BOLT, SENSOR (6X16)

09106-06073

1
Out of stock

45

CIRCLIP This part replaces 08331-31136.

08331-3113A

1
Out of stock

46

CIRCLIP This part replaces 08331-31176.

08331-31179

1
Out of stock
