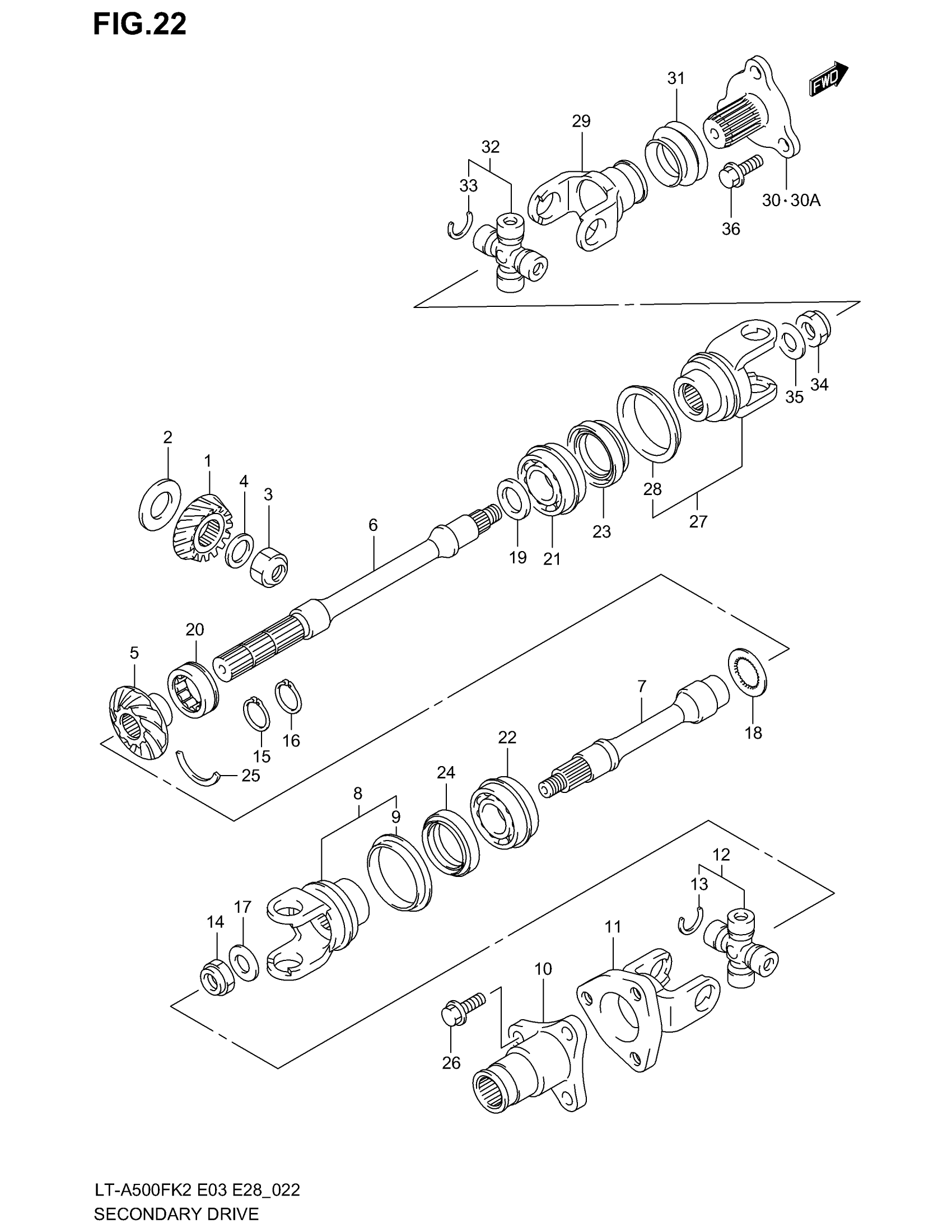

Suzuki LT-A500F (2003) SECONDARY DRIVE Diagram

#

Description
Price

1

GEAR, SEC DRIVE BEVEL | NT:15

24911-44D40

$253.12

2

SHIM SET,SEC DRIVE BEVEL | T:0.25/0.30/0.35/0.90/1.00/ 1.05/1.10/1.15 This part replaces 24935-19810.

24935-03811

$150.17

3

NUT, SEC DRIVE BEVEL GEAR

09140-20012

$4.70

4

WASHER, SEC DRIVE BEVEL GEAR | 20X32X1

09181-20223

$2.80

5

GEAR, SEC DRIVEN BEVEL

24921-09F70

$314.08

6

SHAFT, SEC DRIVEN FRONT

24961-09F70

Unavailable

7

SHAFT, SEC DRIVEN OUTPUT REAR

24970-09F52

Unavailable

8

YOKE, RR DRIVE OUTPUT | Includes Item(s) 9

27130-03G10

Unavailable

9

PLATE, OUTPUT

27592-38F00

$12.80

10

SHAFT, PROPELLER REAR

27150-38F00

$150.43

11

YOKE, PROP SHAFT JOINT REAR

27161-03G00

Unavailable

12

JOINT SET, UNIVERSAL RR | Includes Item(s) 13 This part replaces 27200-73813.

27200-73814

$46.36

13

CIRCLIP, UNIVERSAL OUTPUT RR

09380-25005

$1.68

14

NUT, REAR DRIVE OUTPUT YOKE

09159-16003

$4.33

15

CIRCLIP, ENGINE SPROCKET This part replaces 08331-31246.

08331-3124A

$2.06

16

CIRCLIP, ENGINE SPROCKET This part replaces 08331-31246.

08331-3124A

$2.06

17

WASHER, REAR OUTPUT YOKE | 16X30X3

09160-16026

$5.43

18

WASHER, SEC DRIVEN SHAFT

09167-24002

$3.17

19

SHIM, SEC DRIVEN | 25X34X0.6

09181-25051

$3.80

19

SHIM, SEC DRIVEN | 25X34X0.65

09181-25052

$3.80

19

SHIM (25X34X0.7) | 25X34X0.70 This part replaces 09181-25053.

09181-25160

$3.03

19

SHIM, SEC DRIVEN | 25X34X0.75

09181-25054

$3.80

19

SHIM 0.8 | 25X34X0.80 This part replaces 09181-25055.

09181-25162

$2.50

19

SHIM, SEC DRIVEN | 25X34X0.85

09181-25056

$3.72

19

SHIM 0.9 | 25X34X0.90 This part replaces 09181-25057.

09181-25164

$2.50

19

SHIM, SEC DRIVEN | 25X34X0.95

09181-25058

$3.80

19

WASHER, 5TH DRIVE | 25X34X1.00 This part replaces 09181-25059.

09181-25167

$2.85

19

SHIM, SEC DRIVEN | 25X34X1.05

09181-25060

$3.72

19

SHIM, SEC DRIVEN | 25X34X1.10

09181-25061

$4.18

19

SHIM, SEC DRIVEN | 25X34X1.15

09181-25062

$2.30

19

SHIM, SEC DRIVEN | 25X34X1.20

09181-25063

$4.10

20

BRG, SEC DRIVEN GEAR M | 30X50X17

09263-30050

$62.02

21

BEARING (25X52X20.6) | 25X52X20.6 This part replaces 09267-25006.

09267-25014

$135.30

22

BEARING (25X52X20.6) | 25X52X20.6 This part replaces 09267-25006.

09267-25014

$135.30

23

OIL SEAL, DRIVEN SHAFT FRONT | 34X52X9

09283-34008

$18.71

24

OIL SEAL, DRIVEN SHAFT REAR | 34X52X9

09283-34008

$18.71

25

RING, SEC DRIVEN BEARING M

09390-50002

$3.30

26

BOLT, PROP SHAFT REAR This part replaces 01550-10203.

01550-1020A

$2.80

27

YOKE, FRONT DRIVE OUTPUT | Includes Item(s) 28

27130-03G00

$205.45

28

PLATE, OUTPUT

27592-38F00

$12.80

29

YOKE, PROPELLER SHAFT JOINT

27140-03G00

$154.17

30

SHAFT, PROPELLER | MODEL K2

27151-03G00

Unavailable

30A

SHAFT, PROPELLER | MODEL K3

27150-03G10

Unavailable

31

BOOT, PROPELLER SHAFT

27153-03G00

$9.59

32

JOINT SET,UNIVERSAL | Includes Item(s) 33 This part replaces 27200-19810.

27200-19811

$54.50

33

CIRCLIP

09380-20016

$2.34

34

NUT, FRONT DRIVE OUTPUT YOKE

09159-16003

$4.33

35

WASHER, FR DRIVE OUTPUT YOKE | 16X30X3

09160-16026

$5.43

36

BOLT, PROPELLER SHAFT (10X20)

09103-10310

$2.84
