2003 Suzuki LT-A500F Gear Shifting Diagram

← All diagrams

Find the part on the Gear Shifting diagram for your 2003 Suzuki LT-A500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

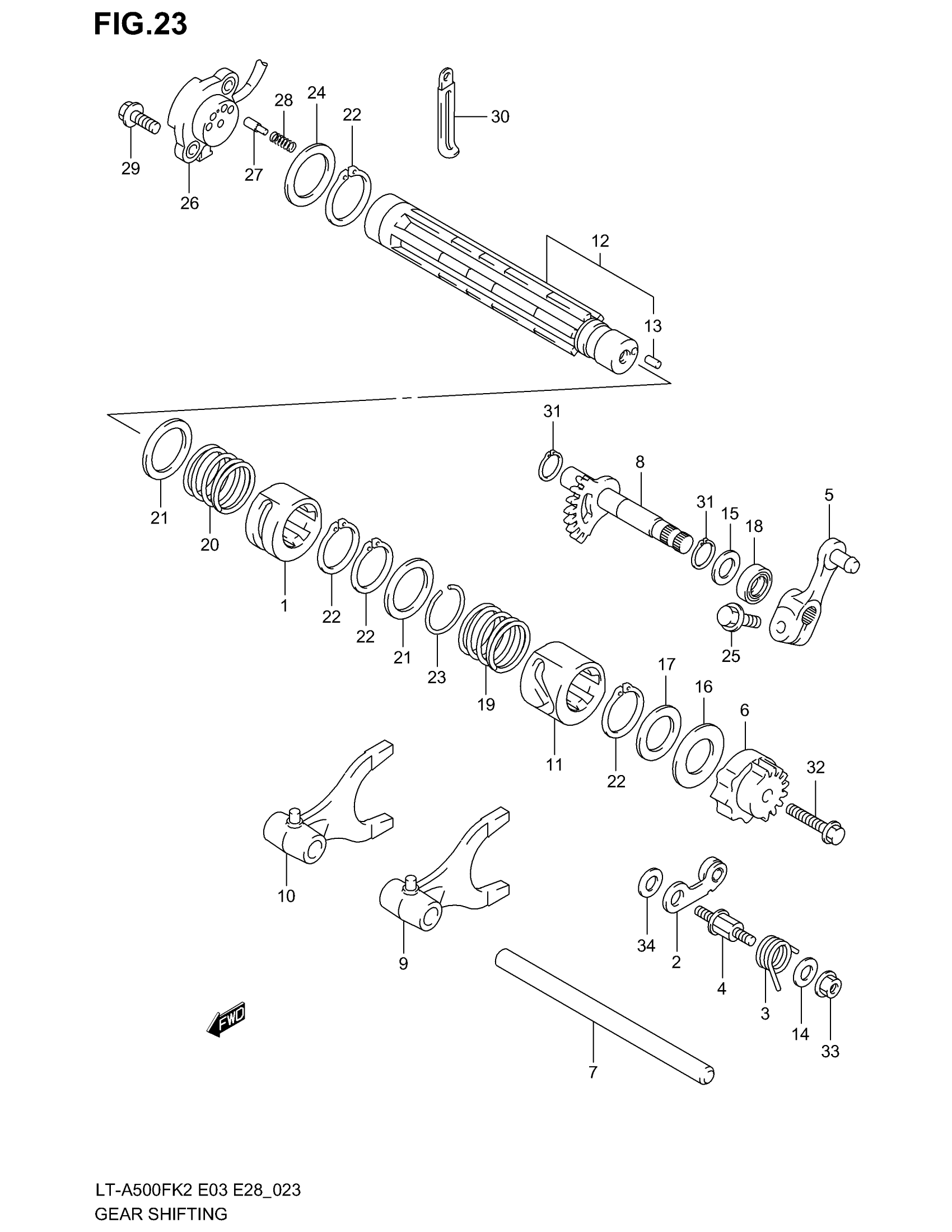

2003 Suzuki LT-A500F Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAM, GEAR SHIFT REVERSE

25321-03G01

1
Out of stock

2

STOPPER, SHIFT CAM

25350-24B00

2
Out of stock

3

SPRING, SHIFT CAM STOPPER

25355-03G00

1
Out of stock

4

SUPPORT, SHIFT CAM

25356-12C00

1
Out of stock

5

ARM, SELECT

25360-03G01

1
Out of stock

6

PLATE, GEAR SHIFT CAM

25381-38F00

1
Out of stock

7

SHAFT, GEAR SHIFT FORK

25411-30B00

1
Out of stock

8

SHAFT, SUB T/M GEAR

25510-03G00

1
Out of stock

9

FORK, GEAR SHIFT

29511-44D00

1
Out of stock

10

FORK, GEAR SHIFT

29511-44D00

1
Out of stock

11

CAM, GEAR SHIFT

29611-03G00

1
Out of stock

12

SHAFT, GEAR SHIFT | Includes Item(s) 13

29620-03G00

1
Out of stock

13

PIN (4X13.8)

04221-04089

1
Out of stock

14

WASHER, SPRING STOPPER | 6.5X16X2.3

09160-06022

2
Out of stock

15

WASHER, SUB T/M SHIFT | 12X20X1.0

09181-12167

2
Out of stock

16

WASHER, SHIFT CAM PLATE | 20X28X0.5

09181-20158

1
Out of stock

17

WASHER, SUB T/M SHIFT | 20X30X1.0

09181-20195

1
Out of stock

18

OIL SEAL (12X22X9)

09285-12006

1
Out of stock

19

SPRING, SUB T/M SHIFT CAM

29612-38F00

1
Out of stock

20

SPRING, REVERSE SHIFT CAM

29612-38F00

1
Out of stock

21

WASHER, SHIFT CAM SPRING | 25X32X1.0

09181-25139

2
Out of stock

22

CIRCLIP, SHIFT CAM SPRING

08331-31256

4
Out of stock

23

C RING, SUB T/M CAM STOP

09380-25012

1
Out of stock

24

WASHER, SHIFT SHAFT | 25X34X1.0

09181-25167

1
Out of stock

25

BOLT This part replaces 01550-06203.

01550-0620A

1
Out of stock

26

1

$164.45

In stock

27

CONTACT

09209-05011

2
Out of stock

28

SPRING

09440-04010

2
Out of stock

29

BOLT, GEAR SHIFT SW This part replaces 07120-05163.

07120-0516B

2
Out of stock

30

CLAMP This part replaces 09404-06432.

09404-06039

1
Out of stock

31

CIRCLIP This part replaces 08331-31126.

08331-3112A

2
Out of stock

32

BOLT This part replaces 01550-06253.

01550-0625A

1
Out of stock

33

NUT This part replaces 08316-10063.

08316-1006B

1
Out of stock

34

WASHER

08211-06141

1
Out of stock
