2003 Suzuki LT-A500F Final Bevel Gear Diagram

← All diagrams

Find the part on the Final Bevel Gear diagram for your 2003 Suzuki LT-A500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

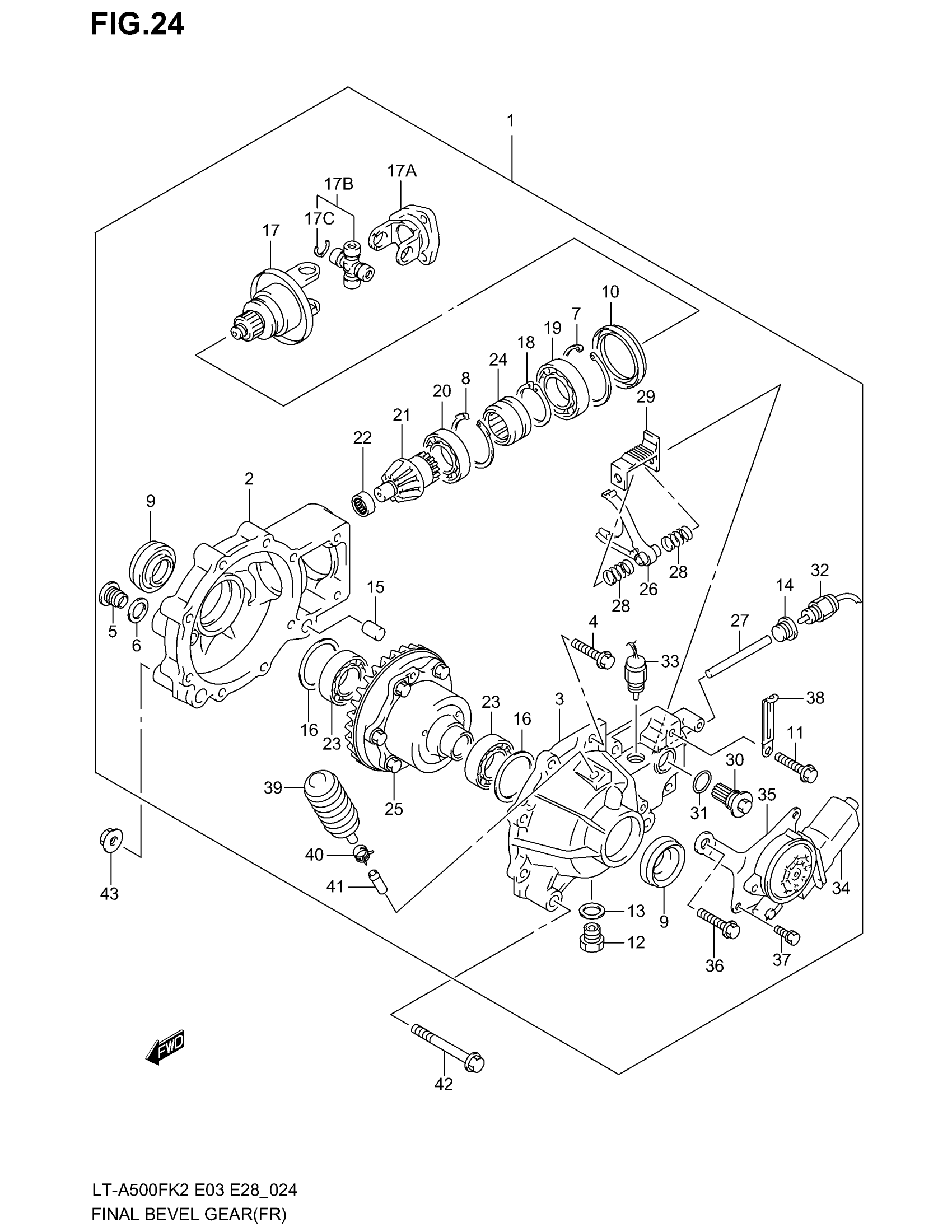

2003 Suzuki LT-A500F Final Bevel Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE ASSY, FRONT DIFFERENTIAL | Includes Item(s) 2 - 41

27400-03G00

1
Out of stock

2

HOUSING FINAL DRIVE, FRONT

27451-38FA0

1
Out of stock

3

COVER FINAL DRIVE, FRONT

27461-03GA0

1
Out of stock

4

BOLT (8X25) This part replaces 27401-38FA0.

27401-38FA1

8
Out of stock

5

PLUG

27409-38FA0

1
Out of stock

6

.WASHER This part replaces 27407-38FA0.

27407-31GA0

1
Out of stock

7

RING SNAP

27403-38FA0

1
Out of stock

8

RING SNAP

27403-38FB0

1
Out of stock

9

OIL SEAL

27406-38FA0

2

$20.72

In stock

10

OIL SEAL

27406-38FB0

1
Out of stock

11

BOLT (6X12)

27401-03GC0

2

$3.17

In stock

12

PLUG

27409-38FB0

1
Out of stock

13

WASHER

27407-38FB0

1
Out of stock

14

PLUG This part replaces 27409-03GA0.

27409-03GA1

1
Out of stock

15

COLLAR

27404-38FA0

1
Out of stock

16

SHIM SET | T:0.70/0.75/0.80/0.85/0.90/0.95/ 1.00/1.05/1.10/1.15/1.20/1.25/ 1.30/1.35/1.40/1.45

27445-38FA0

2
Out of stock

17

YOKE ASSY

27130-03GA0

1
Out of stock

17B

JOINT SET,UNIVERSAL This part replaces 27200-19810.

27200-19811

1
Out of stock

17C

CIRCLIP

09380-20016

4
Out of stock

18

SNAP RING

27403-38FC0

1
Out of stock

19

BEARING

27405-38FA0

1
Out of stock

20

BEARING

27405-38FB0

1
Out of stock

21

PINION, DRIVE

27311-03GA0

1
Out of stock

22

BEARING

27405-38FC0

1
Out of stock

23

BEARING

27405-38FD0

2
Out of stock

24

SLEEVE This part replaces 27371-38FA0.

27371-31GA0

1
Out of stock

25

GEAR ASSY

27320-03GA0

1
Out of stock

26

FORK, SHIFT

27941-03GA0

1

$98.98

In stock

27

ROD, SHIFT

27921-03GA0

1
Out of stock

28

SPRING, SHIFT

27402-03GA0

2
Out of stock

29

BRACKET, ROD

27911-03GA0

1

$46.80

In stock

30

GEAR, SHIFT

27931-03GA0

1

$68.13

In stock

31

1

$2.83

In stock

32

SWITCH ASSY, 2WD

27425-03GA0

1

$126.22

In stock

33

SWITCH ASSY, 4WD

27425-03GB0

1

$126.22

In stock

34

DVC ASSY

27421-03GA0

1

$577.73

In stock

36

BOLT (6X12)

27401-03GA0

2
Out of stock

37

SCREW (5X12)

27401-03GB0

3
Out of stock

38

CLIP

27403-03GA0

1
Out of stock

39

CASE,BREATHER This part replaces 27491-38F00.

27491-38F10

1
Out of stock

40

CLAMP

09401-08411

1
Out of stock

41

PIPE, BREATHER

09364-08003

1
Out of stock

42

BOLT, FRONT DIFFERENTIAL

09103-10148

2
Out of stock

43

2

$2.92

In stock
