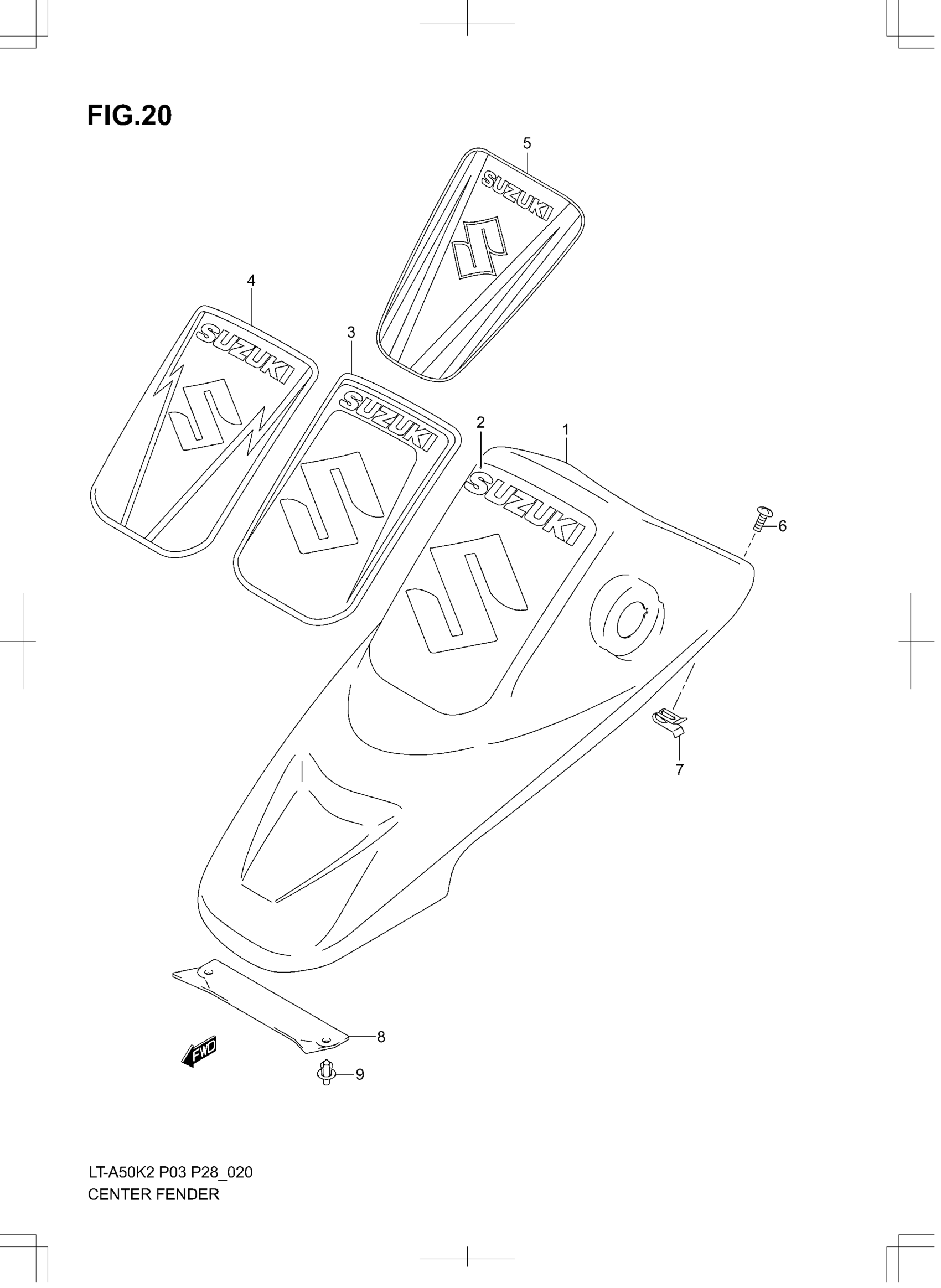

2005 Suzuki LT-A50 Center Fender Diagram

← All diagrams

Find the part on the Center Fender diagram for your 2005 Suzuki LT-A50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki LT-A50 Center Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, CENTER (BLACK)

53118-43F00-291

1
Out of stock

2

EMBLEM | MODEL K2

68151-43F00-GB6

1
Out of stock

3

EMBLEM | MODEL K3

68151-43F10-M6K

1
Out of stock

4

TAPE | MODEL K4 FOR YT9

68155-43F00-LY9

1
Out of stock

4

TAPE | MODEL K4 FOR YU1

68155-43F00-LY8

1
Out of stock

5

EMBLEM | MODEL K5 FOR YT9

68155-43F10-ANP

1
Out of stock

5

EMBLEM | MODEL K5 FOR YU1

68155-43F10-NN2

1
Out of stock

6

SCREW | MODEL K2 This part replaces 02142-15163.

02142-1516A

2
Out of stock

6

SCREW, REAR | MODEL K3/K4/K5 This part replaces 02142-05203.

02142-0520B

2
Out of stock

7

NUT COWL

94484-24F00

2

$3.95

In stock

8

COVER, FRONT FENDER (BLACK)

53119-43F00-291

1
Out of stock

9

CLIP (BLACK)

09409-08308-5ES

2
Out of stock
