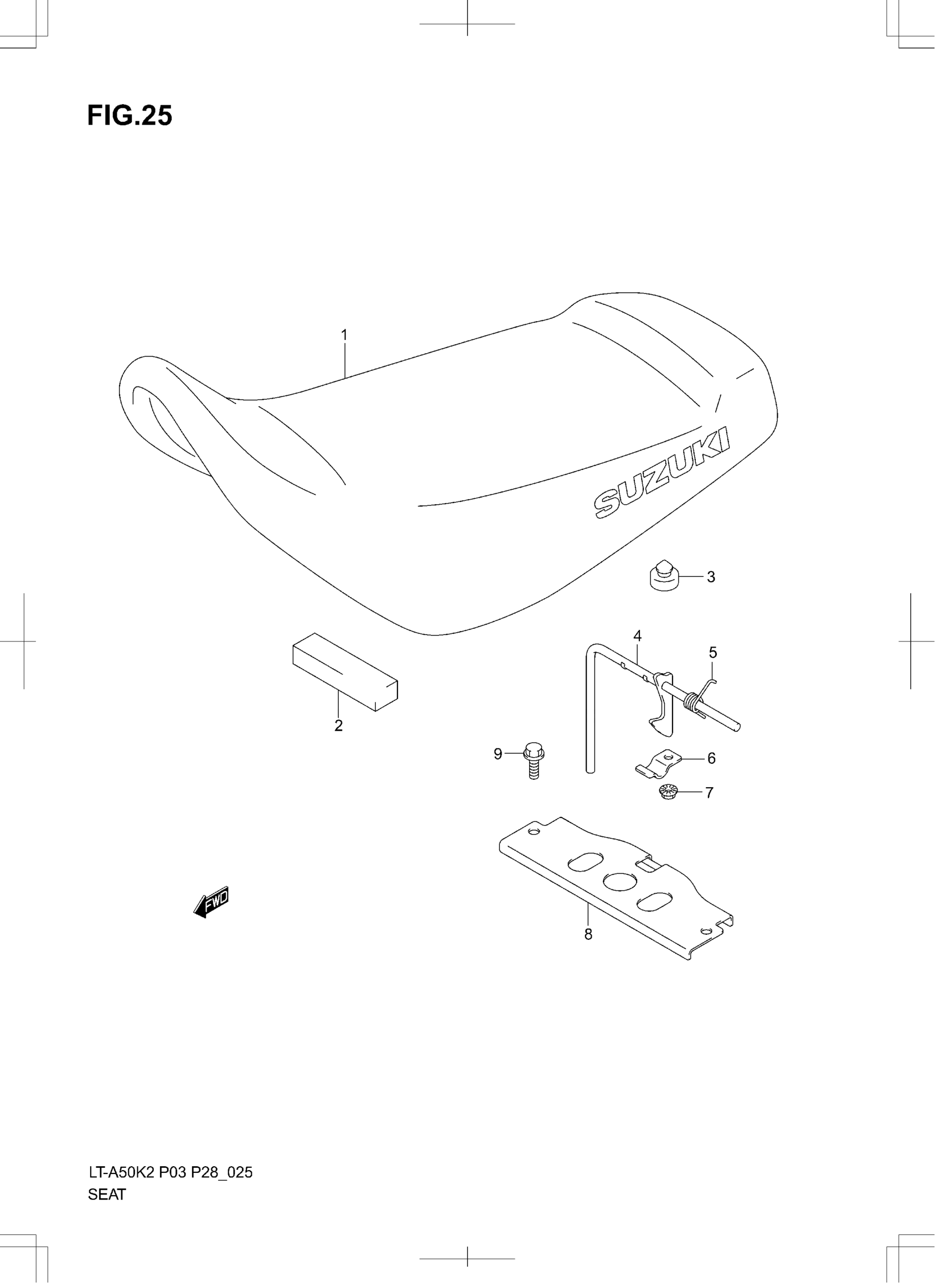

Suzuki LT-A50 (2005) SEAT Diagram

#

Description

Price

1

SEAT ASSY (BLACK) | P3

45100-43F00-6BY

$490.82

1

SEAT ASSY (BLACK) | P28; Includes Item(s) 2 - 7

45100-43F10-6BY

Unavailable

2

CUSHION

45255-43F00

Unavailable

3

CUSHION

45149-43F00

Unavailable

4

CLAMP, SEAT LOCK

45210-43F00

Unavailable

5

SPRING, SEAT LOCK

45135-43F00

$6.83

6

PLATE, SEAT LOCK RH

45222-43F00

Unavailable

7

NUT This part replaces 08316-10063.

08316-1006B

$2.57

8

PLATE, SEAT

45190-43F00

$22.62

9

BOLT This part replaces 01550-06163.

01550-0616A

$2.01
