2005 Suzuki LT-A50 Reflector Assy Diagram

← All diagrams

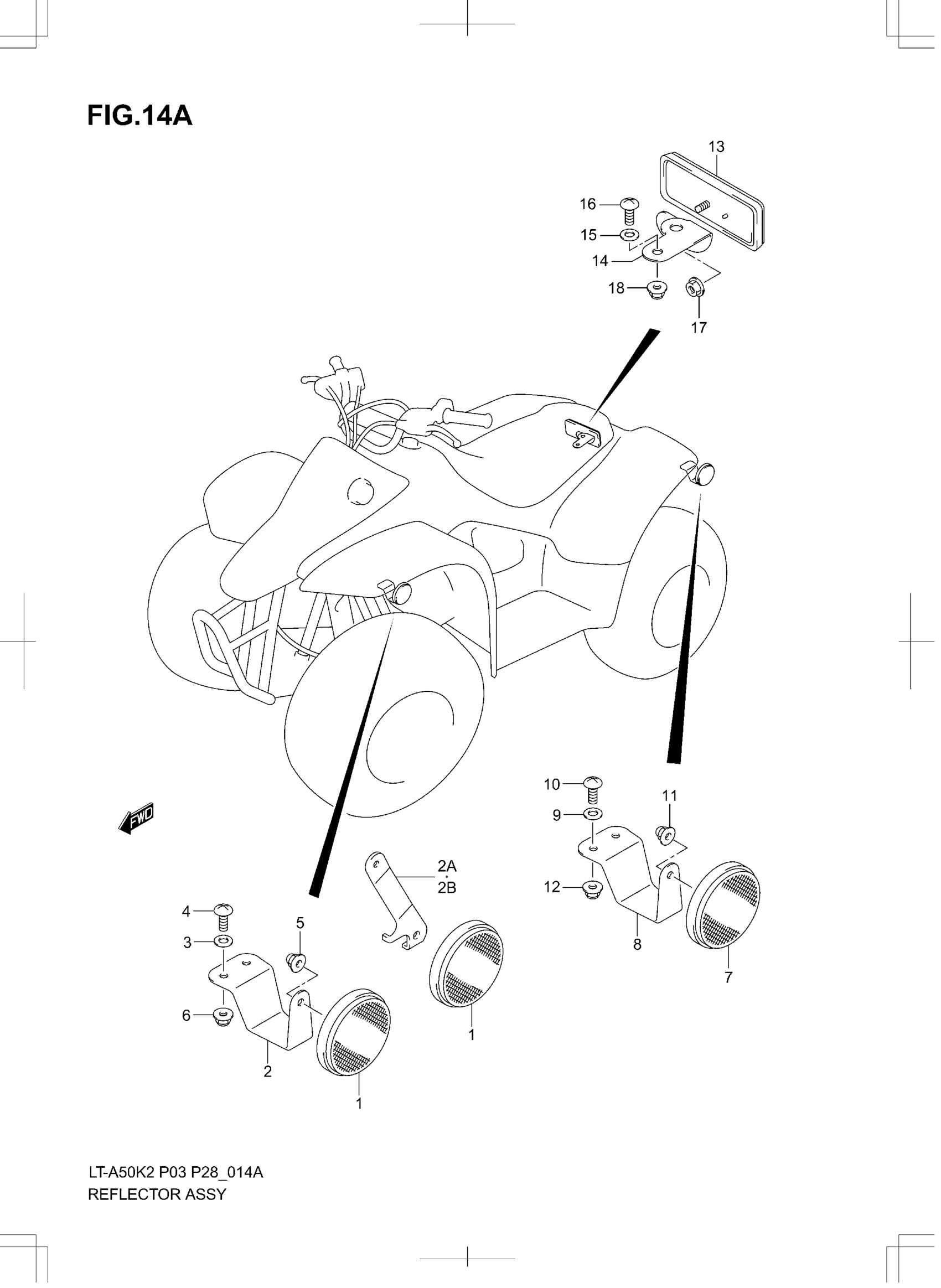

Find the part on the Reflector Assy diagram for your 2005 Suzuki LT-A50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki LT-A50 Reflector Assy Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REFLECTOR ASSY, FRONT

35950-14A00

2
Out of stock

2

BRACKET, FR SIDE | MODEL K2

35956-43F00

—
Out of stock

2A

BRACKET, FR SIDE, RH | MODEL K3/K4/K5

35956-43F10

—
Out of stock

2B

BRACKET, FR SIDE, LH | MODEL K3/K4/K5

35957-43F10

—
Out of stock

3

WASHER, CLUTCH RLSE NO.2 | MODEL K2 This part replaces 09160-06079.

09160-06052

4
Out of stock

4

SCREW | MODEL K2 This part replaces 02142-06163.

02142-0616A

4
Out of stock

5

NUT | MODEL K2 This part replaces 08313-20053.

08313-2005A

2
Out of stock

6

NUT | MODEL K2 This part replaces 08319-31063.

08319-3106A

4
Out of stock

7

REFLECTOR ASSY, RR SIDE

35970-14A10

2
Out of stock

8

BRACKET, RR SIDE | MODEL K2

35956-43F00

—
Out of stock

9

WASHER, CLUTCH RLSE NO.2 | MODEL K2 This part replaces 09160-06079.

09160-06052

4
Out of stock

10

SCREW | MODEL K2 This part replaces 02142-06163.

02142-0616A

4
Out of stock

11

NUT This part replaces 08316-10053.

08316-1005A

2
Out of stock

12

NUT | MODEL K2 This part replaces 08319-31063.

08319-3106A

4
Out of stock

13

REFLECTOR ASSY, RR SIDE This part replaces 35970-07F00.

35970-07F01

1
Out of stock

14

BRACKET, REAR

35974-43F00

1
Out of stock

15

WASHER, CLUTCH RLSE NO.2 This part replaces 09160-06079.

09160-06052

1
Out of stock

16

SCREW This part replaces 02142-06163.

02142-0616A

1
Out of stock

17

NUT This part replaces 08316-10053.

08316-1005A

1
Out of stock

18

NUT This part replaces 08319-31063.

08319-3106A

1
Out of stock
