2010 Suzuki LT-A450XK7 OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 2010 Suzuki LT-A450XK7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

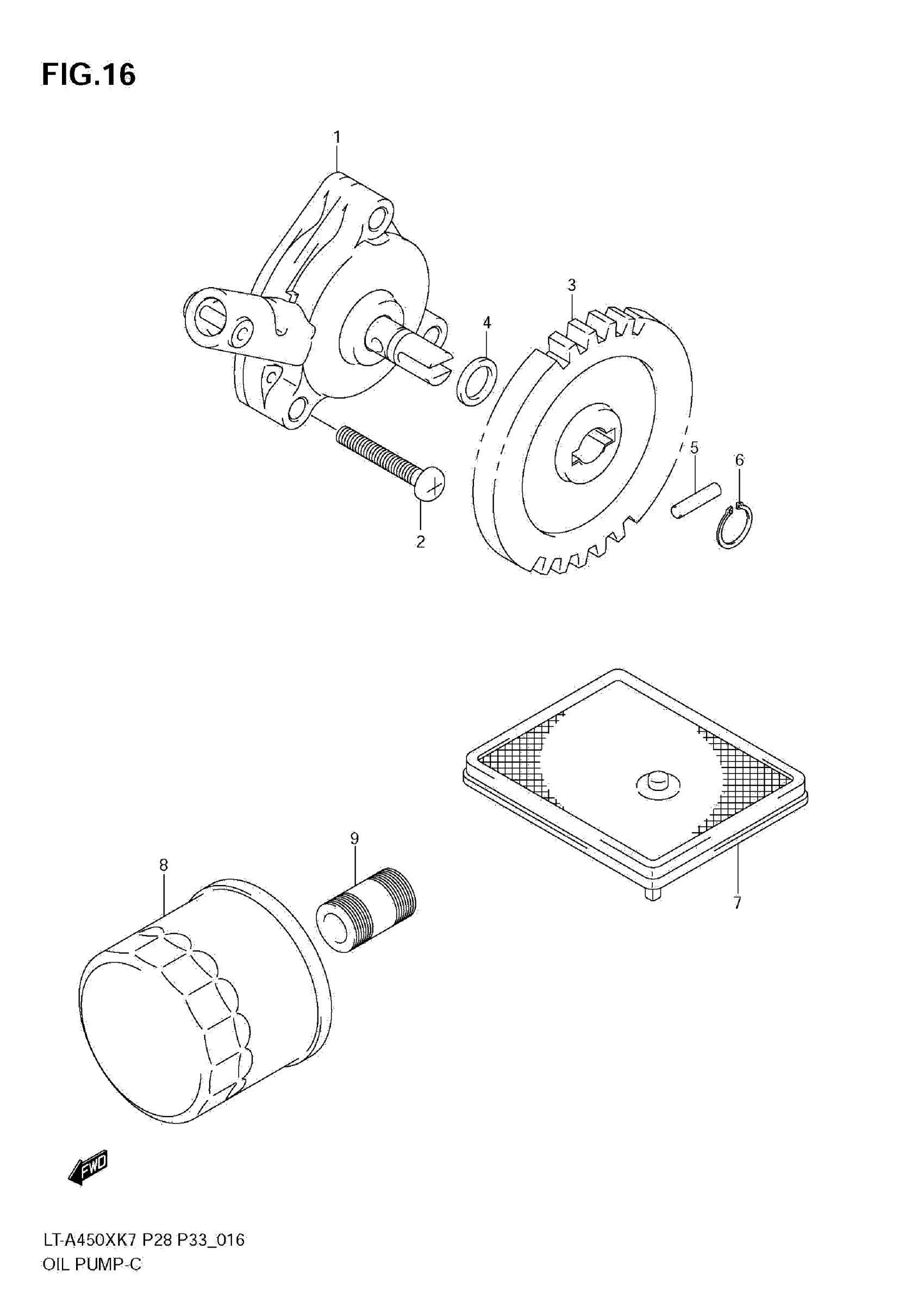

2010 Suzuki LT-A450XK7 OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY, ENG OIL

16400-11H00

1
Out of stock

2

SCREW (6X30)

09125-06119

—
Out of stock

3

SPROCKET, OIL PUMP DRIVE

16331-11H00

1
Out of stock

4

WASHER, 10X18X0.5

09181-10158

1
Out of stock

5

PIN, 4X15.8

09261-04009

1
Out of stock

6

CIRCLIP This part replaces 08331-31106.

08331-31109

1
Out of stock

7

STRAINER,ENG OIL This part replaces 16520-32E00.

16520-32E01

1
Out of stock

8

FILTER, ENGINE OIL This part replaces 16510-03G00-X07.

16510-07J00

1
Out of stock

9

UNION,OIL STAND

16591-06B01

1
Out of stock
