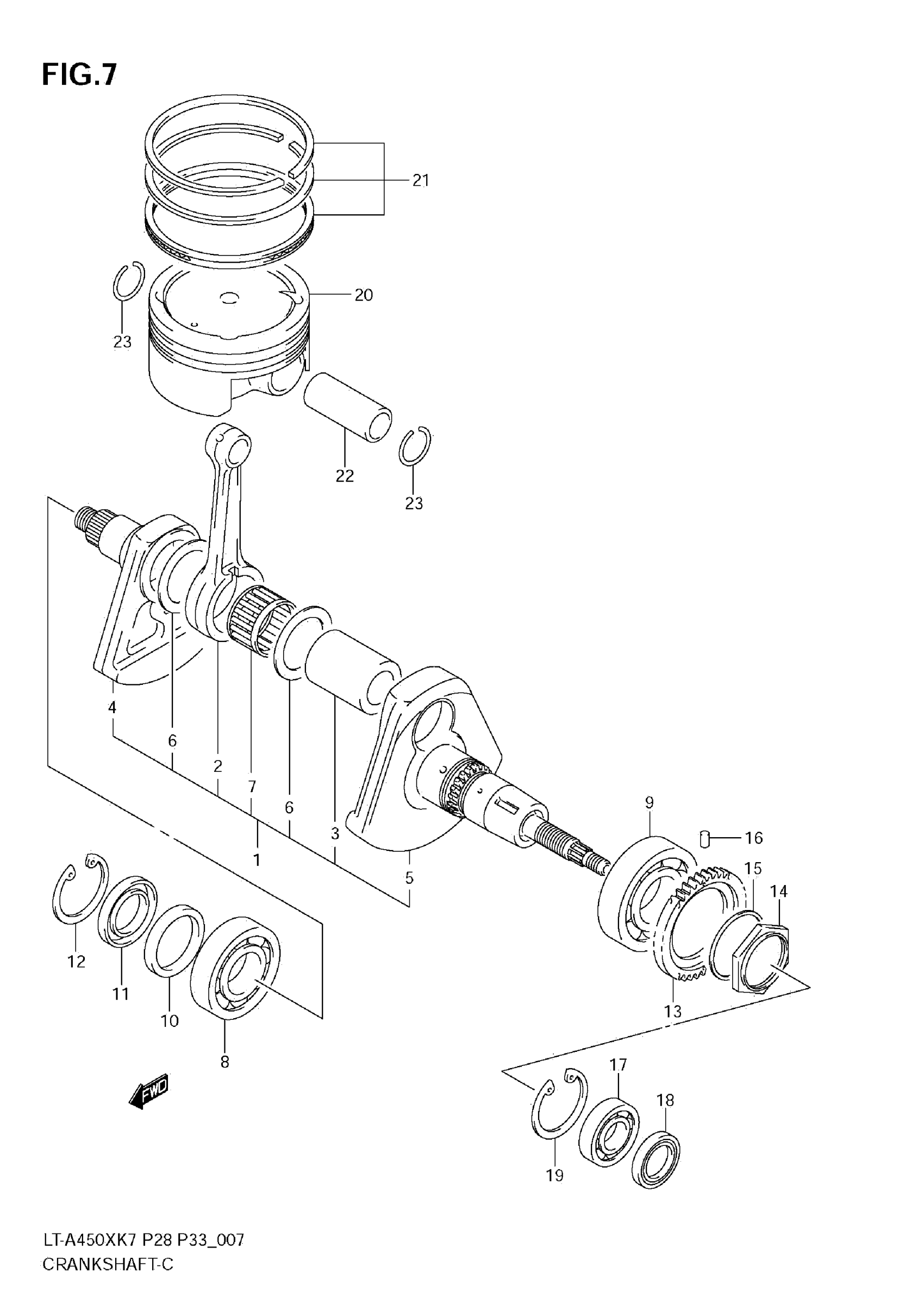

Find the part on the Crankshaft diagram for your 2010 Suzuki LT-A450XK7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Suzuki LT-A450XK7 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSY

12200-11H00

1

$1,046.63

In stock

2

CONNROD

12161-11H00

1

$183.72

In stock

3

PIN, CRANK

12210-11H00

1

$81.27

In stock

4

CRANKSHAFT, R

12220-11H00

—
Out of stock

5

CRANKSHAFT, L

12261-11H00

—
Out of stock

6

WASHER

09160-35005

2

$6.55

In stock

7

BEARING

09263-35043

1

$107.57

In stock

8

BEARING, R

09262-40008

1

$87.28

In stock

9

BEARING, L

09262-45007

1

$113.63

In stock

10

SEAL, OIL

09282-34003

1

$48.43

In stock

11

SEAL, OIL

09282-34001

1
Out of stock

12

1

$4.83

In stock

13

1

$170.68

In stock

14

1

$27.13

In stock

15

WASHER

09160-45006

1

$7.03

In stock

16

PIN

09261-05005

1
Out of stock

17

BEARING

09262-25006

1
Out of stock

18

SEAL, OIL

09283-25095

1
Out of stock

19

CIRCLIP

08331-41479

1
Out of stock

20

PISTON

12111-11H00-0F0

1

$151.30

In stock

21

RING SET, PISTON

12140-11H00

1

$112.35

In stock

22

PIN,PISTON

12151-05A00

1

$15.56

In stock

23

CIRCLIP

09381-20004

2
Out of stock
