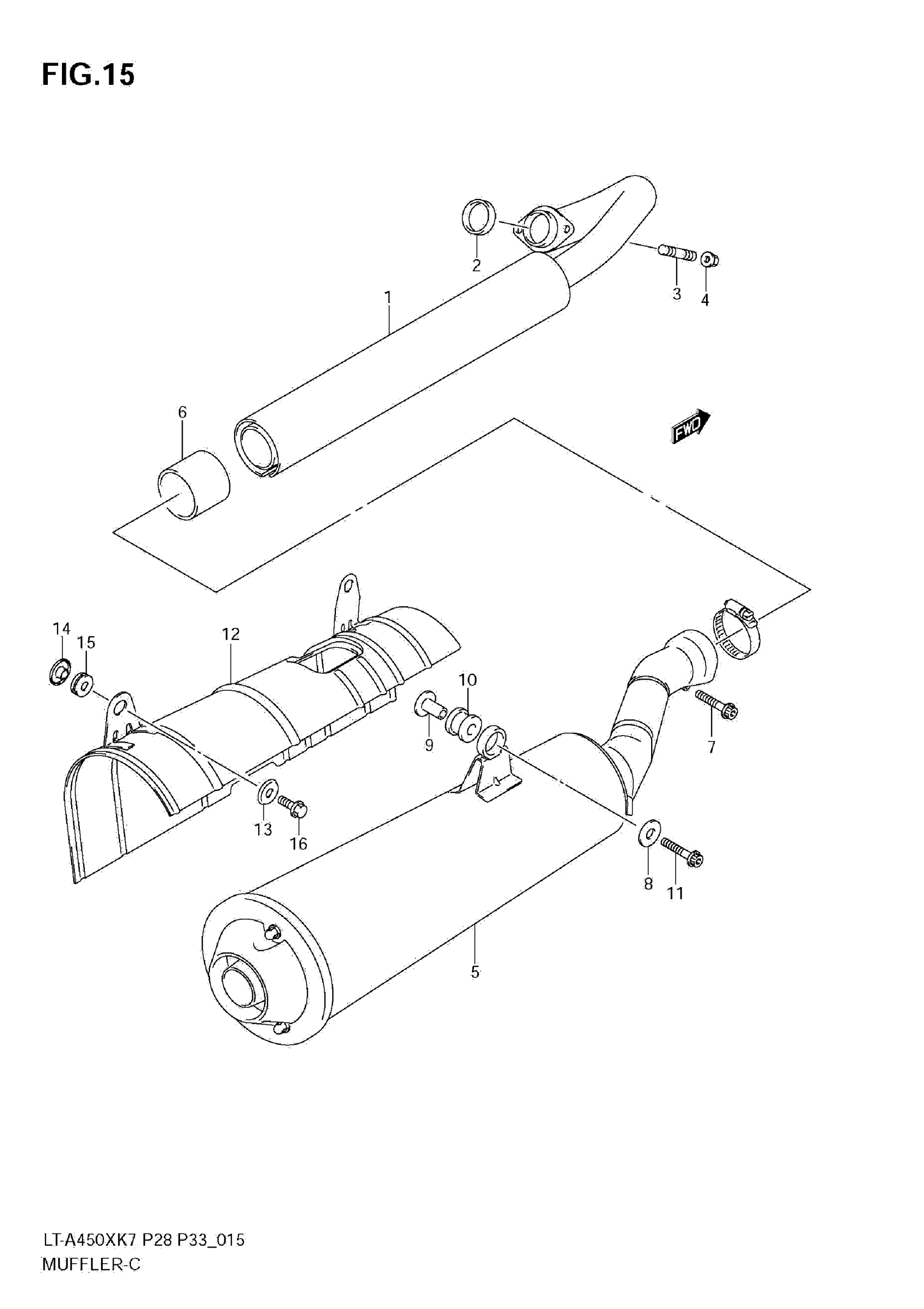

Suzuki LT-A450XK7 (2010) MUFFLER Diagram

#

Description
Price

1

PIPE ASSY, EXH This part replaces 14100-11H00.

14100-11H30

$196.27

2

.GASKET,EXHAUST

14181-18C00

$6.91

3

BOLT, STUD

01421-0820B

$1.98

4

NUT

08319-3108A

$2.38

5

BODY,MUFFLER This part replaces 14310-11H00.

14310-11H21

$557.53

6

CONNECTOR, MUF This part replaces 14771-13E00.

14771-13E10

$14.91

7

BOLT

07120-0835B

$4.98

8

WASHER, 8.5X30X2.3

09160-08503

$2.61

9

SPACER, 8.6X12X24.2

09180-08152

$5.42

10

CUSHION, MUF SPRT

09320-12071

$8.67

11

BOLT

07120-0840B

$3.62

12

COVER, MUFFLER

14880-31G00

$215.27

13

WASHER, MUF COVER

14184-07G00

$1.93

14

SPACER, MUF COVER

14185-07G00

$3.70

15

CUSHION

09320-08069

$7.93

16

BOLT

01550-0616A

$2.01
