2010 Suzuki LT-A450XK7 Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 2010 Suzuki LT-A450XK7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

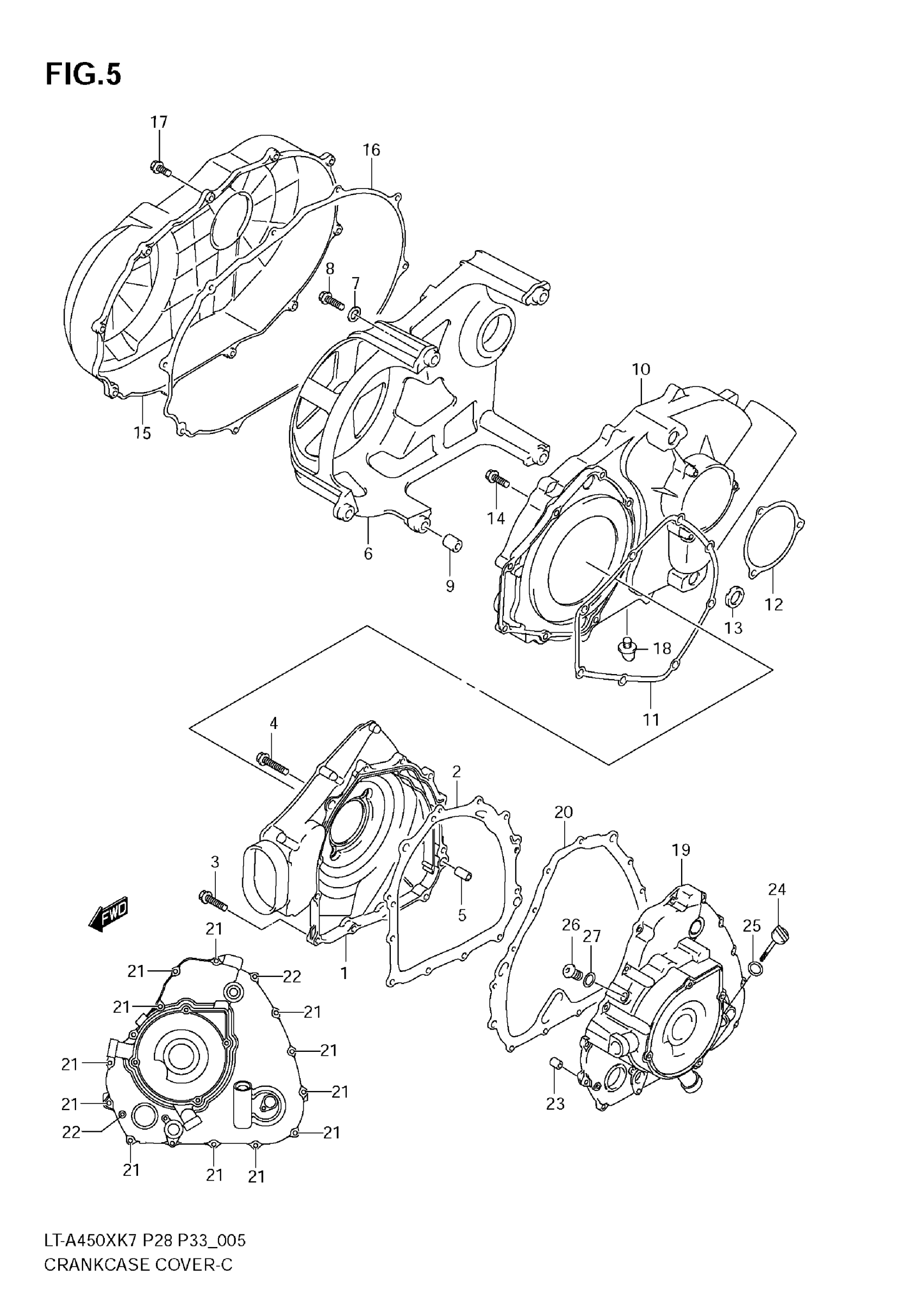

2010 Suzuki LT-A450XK7 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH

11341-11H00

1

$258.63

In stock

2

GASKET

11482-11H00

1

$13.99

In stock

3

BOLT

01547-0625B

11
Out of stock

4

BOLT

01547-0635B

1

$2.92

In stock

5

PIN

04211-11169

2

$1.90

In stock

6

HOUSING, BELT BEARING

11342-11H00

1

$258.44

In stock

8

BOLT

01547-0635B

5

$2.92

In stock

9

PIN

04211-09149

2
Out of stock

10

COVER, BELT INNER

11370-11H00

1

$213.10

In stock

12

GASKET

11485-31G00

1

$7.83

In stock

14

BOLT

01547-0625B

11
Out of stock

15

COVER, BELT OUTER

11380-11H00

1

$194.95

In stock

17

BOLT

01547-0625B

10
Out of stock

18

PLUG, WATER DRAIN

11375-31G00

1

$4.13

In stock

19

COVER, MAGNETO

11350-11H00

1
Out of stock

20

GASKET

11483-11H00

1

$28.77

In stock

21

BOLT

01547-0625B

12
Out of stock

22

BOLT

01547-0635B

2

$2.92

In stock

23

PIN

04211-11169

2

$1.90

In stock

24

GAUGE,OIL LEVEL

11971-09F50

1

$9.75

In stock

25

O RING

09280-17003

1
Out of stock

26

PLUG, SHAFT This part replaces 09248-14012.

09248-14011

1
Out of stock

27

GASKET

09168-14014

1

$2.23

In stock
