2009 Suzuki LT-A450X Cylinder Diagram

← All diagrams

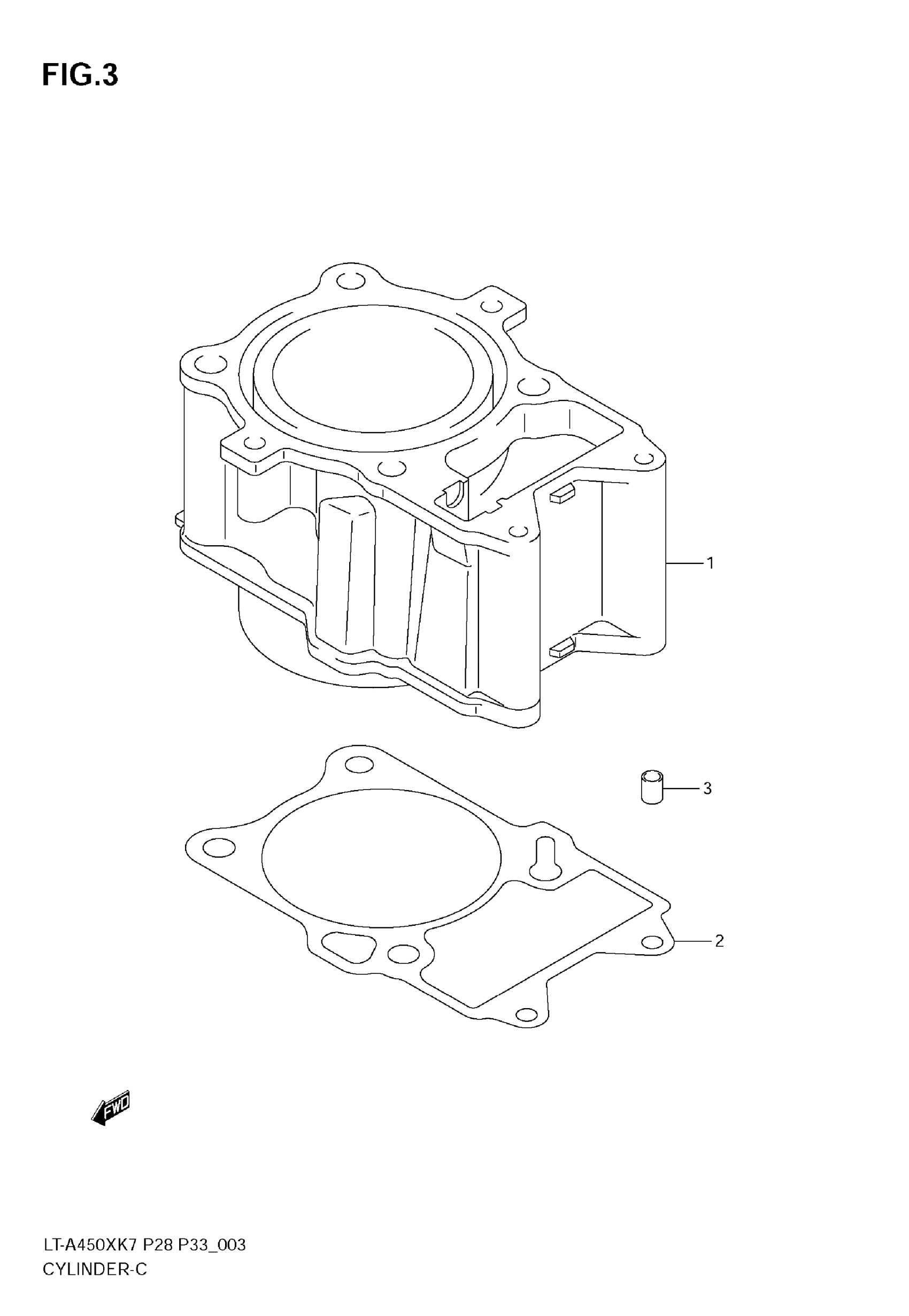

Find the part on the Cylinder diagram for your 2009 Suzuki LT-A450X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki LT-A450X Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER

11211-11H00-0F0

1
Out of stock

2

GASKET, CYLINDER

11241-11H00

1
Out of stock

3

PIN

04211-13189

2
Out of stock
