2009 Suzuki LT-A450X Crank Balancer Diagram

← All diagrams

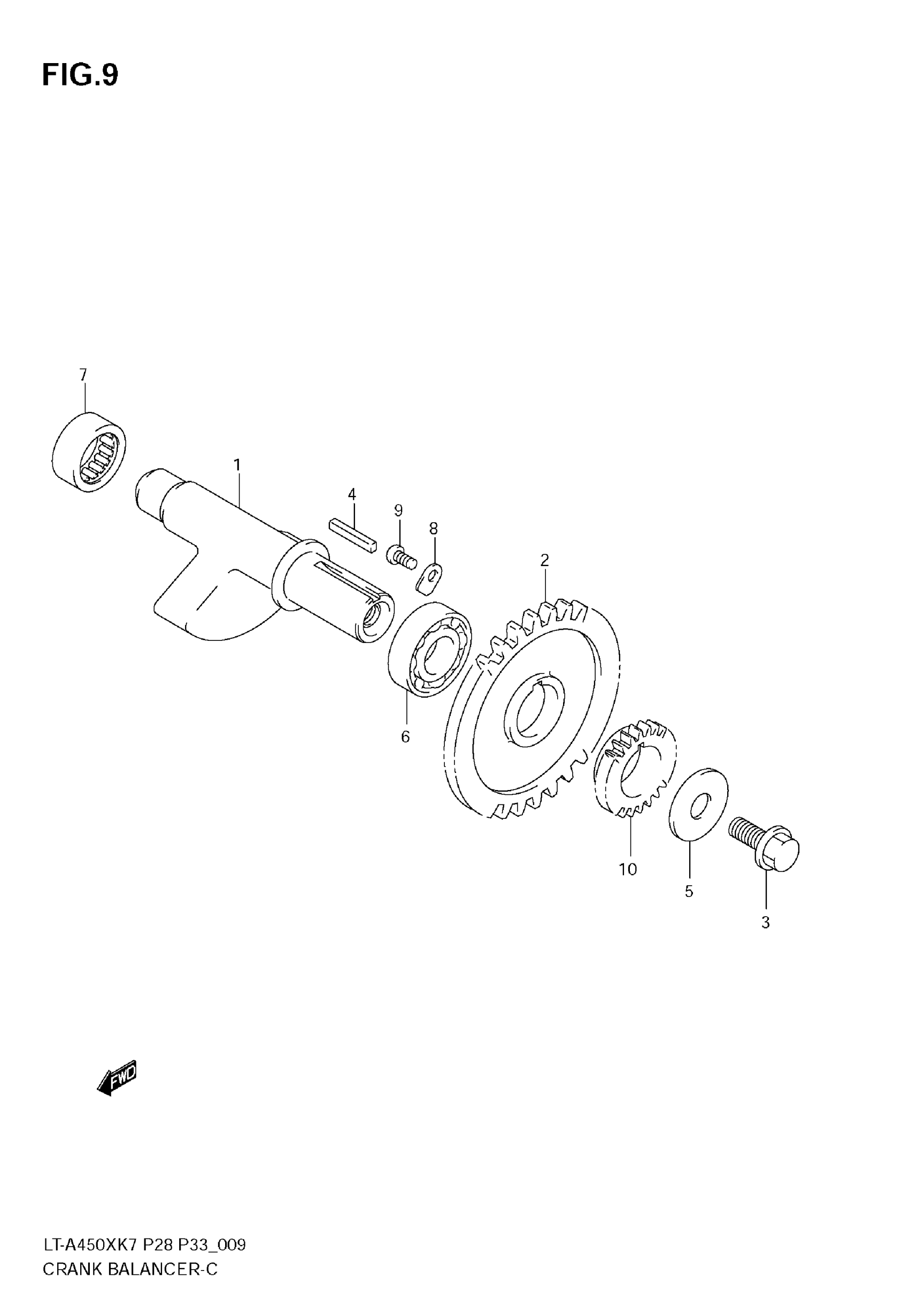

Find the part on the Crank Balancer diagram for your 2009 Suzuki LT-A450X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki LT-A450X Crank Balancer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BALANCER, CRANK

12650-11H00

1
Out of stock

2

GEAR, CRANK BALANCER DRIVEN

12666-11H00

1
Out of stock

3

BOLT, 10X20

09103-10290

1
Out of stock

4

KEY

09421-04004

1
Out of stock

5

WASHER

08211-10305

1
Out of stock

6

BEARING, 20X42X12

09262-20137

1
Out of stock

7

BEARING, 20X28X16

09263-20091

1
Out of stock

8

RETAINER, CRANK GAL BRG

24741-21A00

2
Out of stock

9

BOLT, 6X12

09125-06110

2
Out of stock

10

GEAR, OIL PUMP DRIVE

16321-11H00

1
Out of stock
