2009 Suzuki LT-A450X Cylinder Head Diagram

← All diagrams

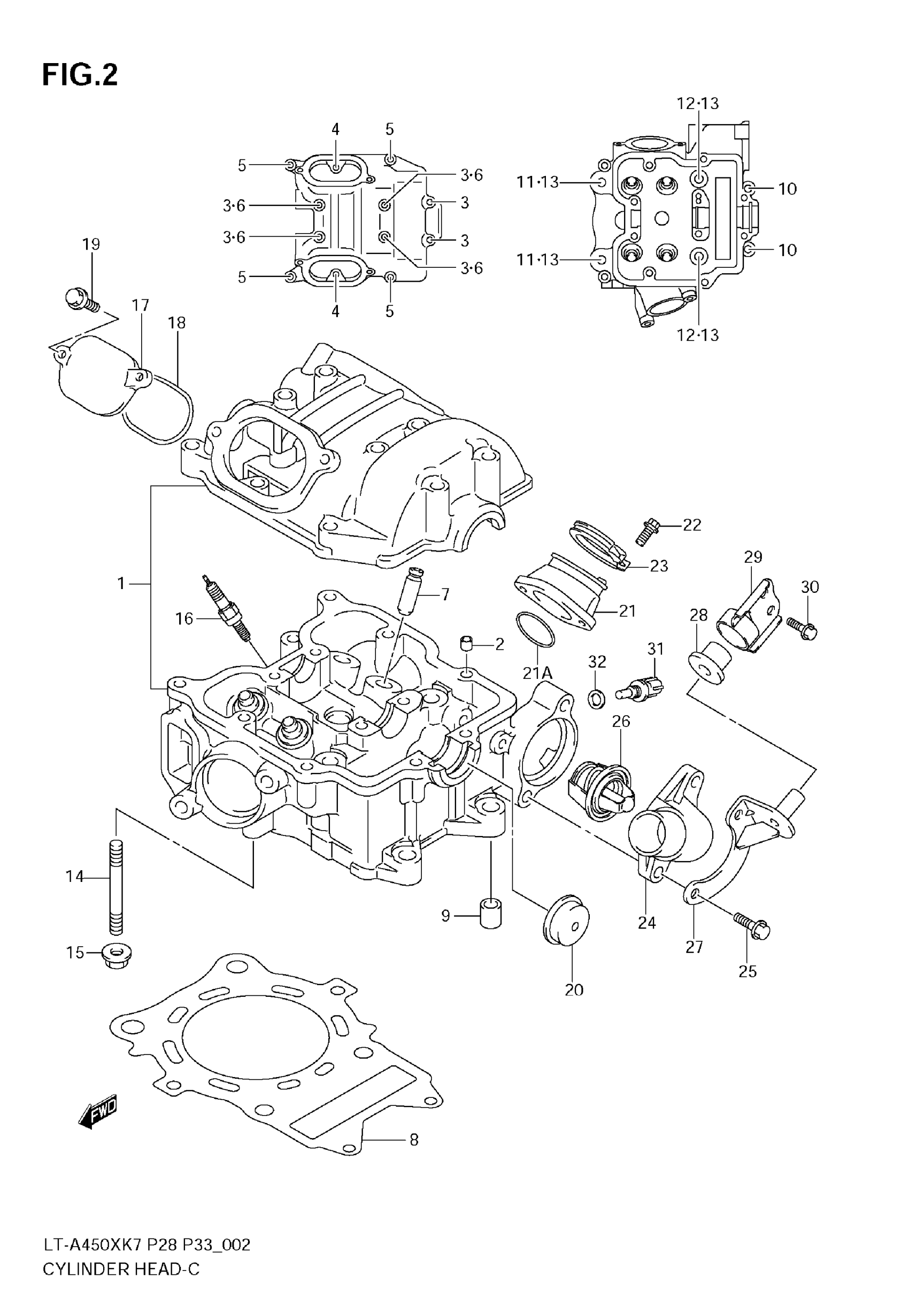

Find the part on the Cylinder Head diagram for your 2009 Suzuki LT-A450X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki LT-A450X Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

2

PIN

09206-08001

2
Out of stock

3

BOLT (6X60)

09103-06064

6

$2.31

In stock

4

BOLT

01550-0625B

2
Out of stock

5

BOLT

01550-0635B

4

$2.92

In stock

6

GASKET (5.8X13X1.2)

09168-06023

4
Out of stock

7

GUIDE,VALVE (OS:0.3) | OPT

11115-14D71

4
Out of stock

8

GASKET, CYLINDER HEAD

11141-11H00

1

$44.55

In stock

9

PIN

04211-13189

2
Out of stock

10

BOLT (8X135)

09103-08212

2

$8.12

In stock

11

BOLT (10X190)

09103-10179

2

$15.12

In stock

12

BOLT (L:200)

09103-10180

2

$15.12

In stock

13

.GASKET (10.2X20X2.3)

09168-10031

4

$2.18

In stock

14

STUD BOLT

01421-0850B

—
Out of stock

15

NUT

08316-1008B

2

$2.85

In stock

16

SPARK PLUG (NGK,CR6E)

09482-00528

1

$6.17

In stock

16

1

$7.93

In stock

16

SPARK PLUG (NGK,CR6EIA-9) | OPT

09482-00590

1
Out of stock

16

1

$6.17

In stock

16

1

$5.91

In stock

16

1

$6.43

In stock

16

1

$6.03

In stock

17

CAP,INSPECTION

11175-47D00

2
Out of stock

18

.O RING,INSPECTION CAP

11177-14D01

2
Out of stock

19

BOLT

01550-0620B

4
Out of stock

20

PLUG, HEAD

09241-25007

1
Out of stock

21

1

$57.40

In stock

21A

O-RING, INTAKE

13118-11H00

1

$7.30

In stock

22

BOLT

09106-06105

2

$2.92

In stock

23

CLAMP

09402-52208

1
Out of stock

24

COVER, THERMOSTAT

17661-31G00

1

$53.58

In stock

25

BOLT

07130-0825B

2

$3.26

In stock

26

1

$25.68

In stock

27

PLATE, ENG MTG DAMPER

11653-11H00

—
Out of stock

28

DAMPER, ENG MTG

11654-31G00

1

$3.33

In stock

29

1

$19.68

In stock

30

BOLT

01550-0812B

2
Out of stock

31

SENSOR, WATER TEMP

13650-10G00

1

$86.96

In stock

32

GASKET

09168-12017

1
Out of stock
