2009 Suzuki LT-A450X Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2009 Suzuki LT-A450X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

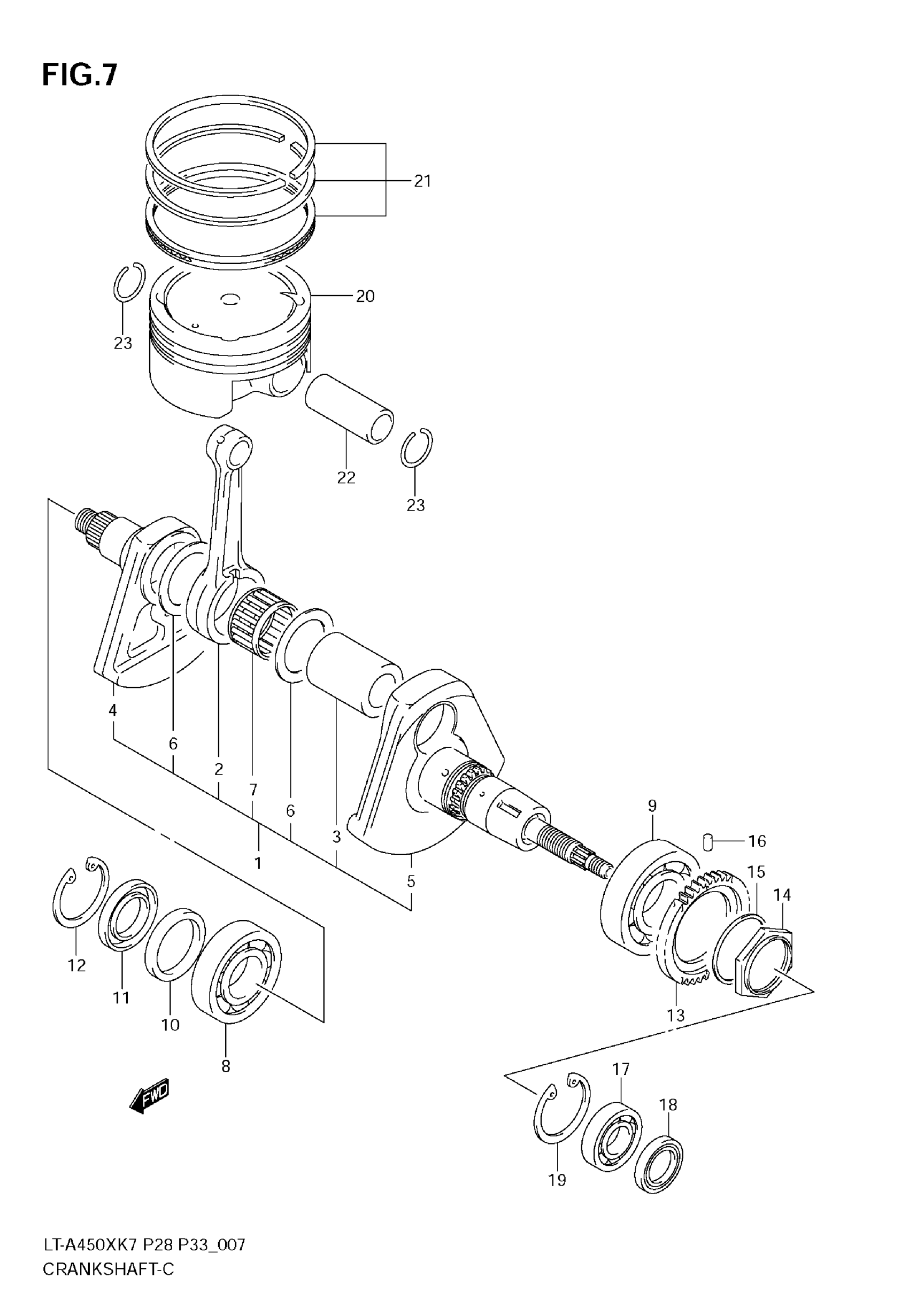

2009 Suzuki LT-A450X Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSY | Includes Item(s) 2 - 7

12200-11H00

1
Out of stock

2

CONNROD

12161-11H00

1
Out of stock

3

PIN, CRANK

12210-11H00

1
Out of stock

4

CRANKSHAFT, R

12220-11H00

—
Out of stock

5

CRANKSHAFT, L

12261-11H00

—
Out of stock

6

WASHER

09160-35005

2
Out of stock

7

BEARING

09263-35043

1
Out of stock

8

BEARING, R

09262-40008

1
Out of stock

9

BEARING, L

09262-45007

1
Out of stock

10

SEAL, OIL

09282-34003

1
Out of stock

11

SEAL, OIL

09282-34001

1
Out of stock

12

CIRCLIP This part replaces 08331-4152A.

08331-41529

1
Out of stock

13

GEAR, CRANK BALANCER DRIVE

12661-31G01

1
Out of stock

14

NUT, CRANK BALANCER DRIVE GEAR

12664-31G00

1
Out of stock

15

WASHER

09160-45006

1
Out of stock

16

PIN

09261-05005

1
Out of stock

17

BEARING

09262-25006

1
Out of stock

18

SEAL, OIL

09283-25095

1
Out of stock

19

CIRCLIP

08331-41479

1
Out of stock

20

PISTON

12111-11H00-0F0

1
Out of stock

21

RING SET, PISTON

12140-11H00

1
Out of stock

22

PIN,PISTON

12151-05A00

1
Out of stock

23

CIRCLIP

09381-20004

2
Out of stock
