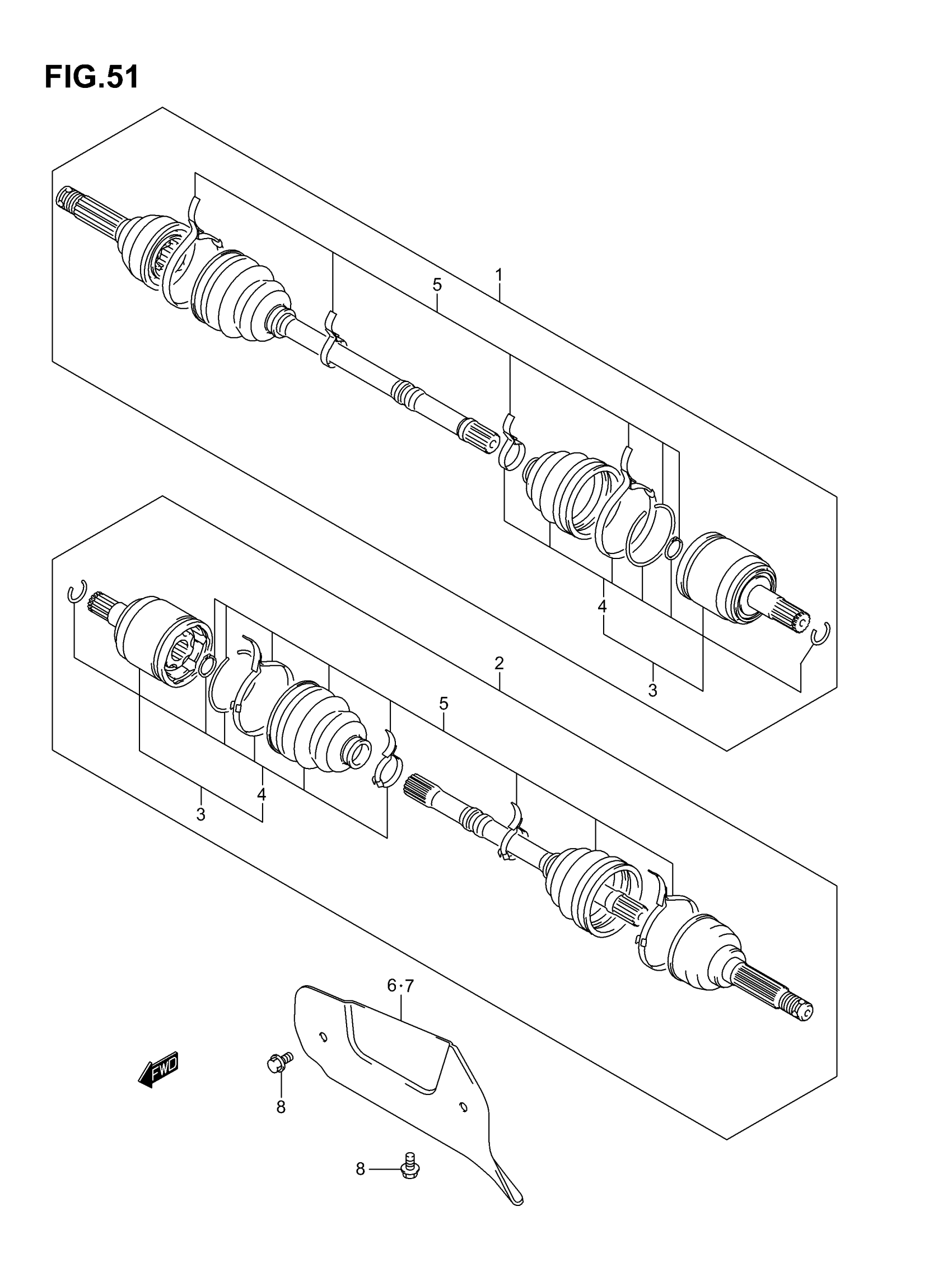

Suzuki LT-A400F (2007) FRONT DRIVE SHAFT (MODEL K3/K4) Diagram

#

Description
Price

1

SHAFT ASSY,FR D | %F.NO.5SAAK46K3X102000 This part replaces 54901-38F00.

54901-38F01

$589.98

1

SHAFT ASSY,FRT | F.NO.5SAAK46K3X102001% This part replaces 54901-38F10.

54901-38F23

$377.12

2

SHAFT ASSY,FRON | %F.NO.5SAAK46K3X102000 This part replaces 54902-38F00.

54902-38F01

Unavailable

2

SHAFT ASSY,FRT | F.NO.5SAAK46K3X102001%; Includes Item(s) 3 - 5 This part replaces 54902-38F10.

54902-38F23

$376.97

3

JOINT SET | %F.NO.5SAAK46K3X102000 This part replaces 54933-38F00.

54933-38F01

Unavailable

3

JOINT SET | F.NO.5SAAK46K3X102001% This part replaces 54933-38F10.

54933-38FV0

Unavailable

4

BOOT SET,INNER | %F.NO.5SAAK46K3X102000 This part replaces 54931-19B20.

54931-19B21

Unavailable

4

BOOT SET,INNER | F.NO.5SAAK46K3X102001% This part replaces 54931-38F10.

54931-38FV0

$77.38

5

BOOT SET,OUTER | %F.NO.5SAAK46K3X102000 This part replaces 54930-19B20.

54930-19B21

Unavailable

5

BOOT SET, OUTER | F.NO.5SAAK46K3X102001%

54930-38F10

$108.60

6

PROTECTOR,FRONT DRIVE SHAFT,R | %F.NO.5SAAK46K3X102000 This part replaces 54903-38F00.

54903-27H01

$15.87

6

PROTECTOR,FRONT DRIVE SHAFT,R | F.NO.5SAAK46K3X102001% This part replaces 54903-38F10.

54903-27H01

$15.87

7

PROTECTOR,FR D/ | %F.NO.5SAAK46K3X102000 This part replaces 54904-38F00.

54904-27H00-291

$18.12

7

PROTECTOR,FR D/ | F.NO.5SAAK46K3X102001% This part replaces 54904-38F10.

54904-27H00-291

$18.12

8

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97
