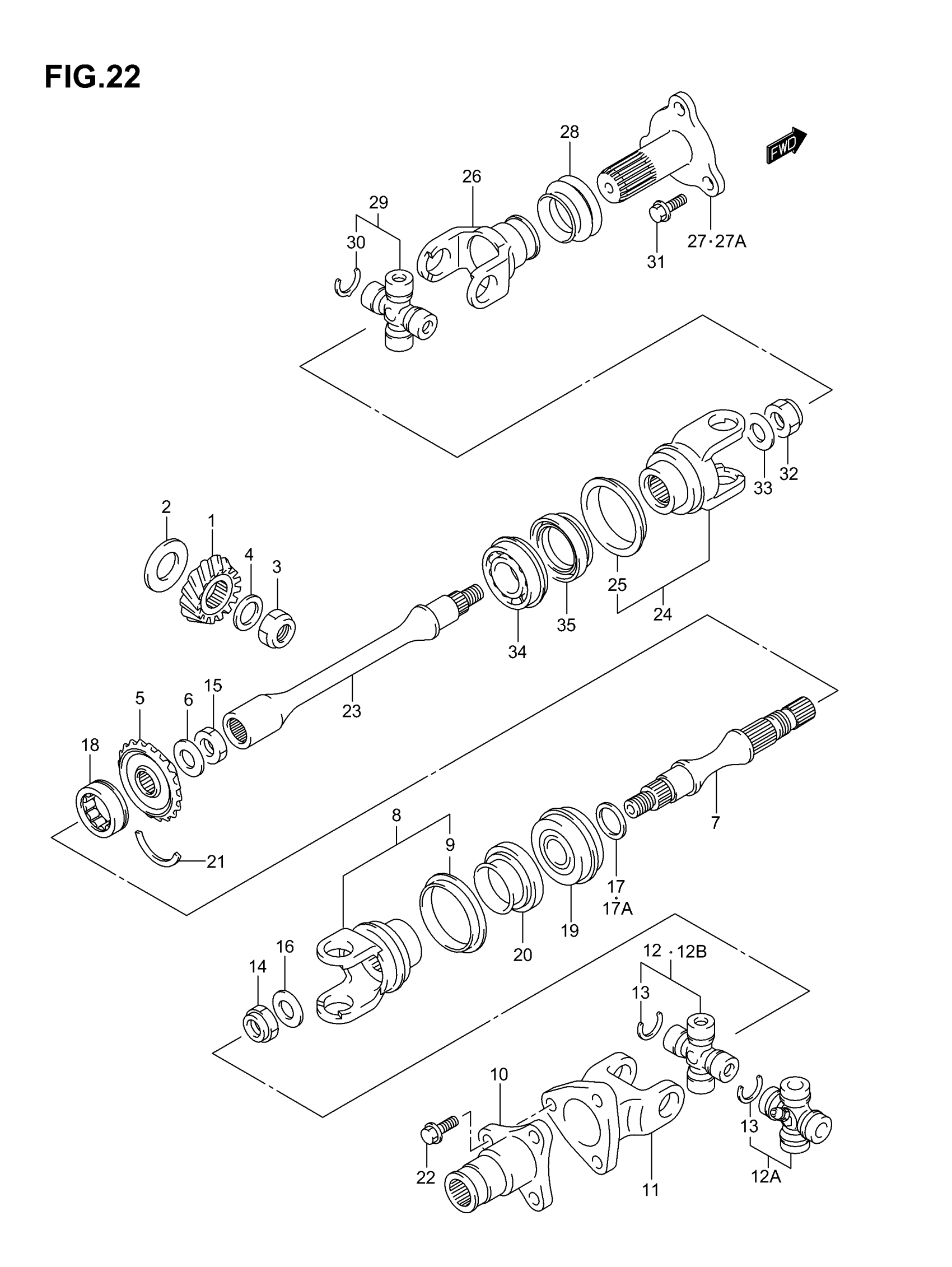

Suzuki LT-A400F (2007) SECONDARY DRIVE Diagram

#

Description
Price

1

GEAR, SEC DRIVE BEVEL | NT:17

24911-38F00

Unavailable

2

SHIM SET,SEC DRIVE BEVEL | MODEL K3/K4/K5 T:0.25/0.30/0.35/0.90/1.00/1.05/ 1.10/1.15 This part replaces 24935-19810.

24935-03811

$150.17

2

SHIM SET,SEC DRIVE BEVEL | MODEL K6/K7 T:0.25/0.30/0.35/0.55/0.58/0.60/ 0.63/0.65/0.68/0.70/0.73/0.75/ 0.78/0.80/0.83/0.85/0.88/0.90/ 0.93/0.95/0.98/1.00/1.03/1.05/ 1.08/1.10/1.13/1.15/1.18/1.20/ 1.23/1.25/1.28/1.30

24935-03811

$150.17

3

NUT, SEC DRIVE BEVEL GEAR

09140-20012

$4.70

4

WASHER, SEC DRIVE BEVEL GEAR | 20X32X1

09181-20223

$2.80

5

GEAR, SEC DRIVEN BEVEL

24921-38F00

Unavailable

6

WASHER, SEC DRIVEN GEAR

08211-22365

$6.48

7

SHAFT, SEC DRIVEN OUTPUT REAR

24971-38F00

Unavailable

8

YOKE, REAR DRIVE OUTPUT | Includes Item(s) 9

27130-03G00

$205.45

9

PLATE, OUTPUT

27592-38F00

$12.80

10

SHAFT, PROPELLER REAR

27150-38F00

$150.43

11

YOKE, PROP SHAFT JOINT RR | MODEL K3/K4/K5 This part replaces 27161-38F20.

27161-38F11

$186.60

11

YOKE, PROP SHAFT JOINT REAR | MODEL K6/K7

27161-38F11

$186.60

12

JOINT SET,UNIVERSAL | MODEL K3 This part replaces 27200-19810.

27200-19811

$54.50

12A

JOINT SET, UNIVERSAL | MODEL K4

27200-38810

$121.57

12B

JOINT SET,UNIVERSAL | MODEL K5/K6/K7; Includes Item(s) 13 This part replaces 27200-19810.

27200-19811

$54.50

13

CIRCLIP

09380-20016

$2.34

14

NUT, REAR DRIVE OUTPUT YOKE

09159-16003

$4.33

15

NUT, SEC DRIVEN GEAR

09159-22005

$30.17

16

WASHER, REAR OUTPUT YOKE | 16X30X3

09160-16026

$5.43

17

SHIM, SEC DRIVEN | 25X34X0.6,MODEL K3/K4/K5

09181-25051

$3.80

17

SHIM, SEC DRIVEN | 25X34X0.65,MODEL K3/K4/K5

09181-25052

$3.80

17

SHIM (25X34X0.7) | 25X34X0.70,MODEL K3/K4/K5 This part replaces 09181-25053.

09181-25160

$3.03

17

SHIM, SEC DRIVEN | 25X34X0.75,MODEL K3/K4/K5

09181-25054

$3.80

17

SHIM 0.8 | 25X34X0.80,MODEL K3/K4/K5 This part replaces 09181-25055.

09181-25162

$2.50

17

SHIM, SEC DRIVEN | 25X34X0.85,MODEL K3/K4/K5

09181-25056

$3.72

17

SHIM 0.9 | 25X34X0.90,MODEL K3/K4/K5 This part replaces 09181-25057.

09181-25164

$2.50

17

SHIM, SEC DRIVEN | 25X34X0.95,MODEL K3/K4/K5

09181-25058

$3.80

17

WASHER, 5TH DRIVE | 25X34X1.00,MODEL K3/K4/K5 This part replaces 09181-25059.

09181-25167

$2.85

17

SHIM, SEC DRIVEN | 25X34X1.05,MODEL K3/K4/K5

09181-25060

$3.72

17

SHIM, SEC DRIVEN | 25X34X1.10,MODEL K3/K4/K5

09181-25061

$4.18

17

SHIM, SEC DRIVEN | 25X34X1.15,MODEL K3/K4/K5

09181-25062

$2.30

17

SHIM, SEC DRIVEN | 25X34X1.20,MODEL K3/K4/K5

09181-25063

$4.10

17A

SHIM SET,SEC DRIVEN BEVEL | MODEL K6/K7 T:0.55/0.58/0.60/0.63/0.65/0.68 /0.70/0.73/0.75/0.78/0.80/0.83 /0.85/0.88/0.90/0.93/0.95/0.98 /1.00/1.03/1.05/1.08/1.10/1.13 /1.15/1.18/1.20/1.23/1.25/1.28 /1.30/1.33/1.35/1.38/1.40

24945-03811

$125.93

18

BEARING, SEC DRIVEN GEAR M | 30X50X17

09263-30050

$62.02

19

BEARING, SEC DRIVEN OUTPUT SHAFT REAR | 25X52X20.6

09267-25014

$135.30

20

OIL SEAL, DRIVEN SHAFT REAR | 34X52X9

09283-34008

$18.71

21

RING, SEC DRIVEN BEARING M

09390-50002

$3.30

22

BOLT, PROP SHAFT REAR

01550-1020A

$2.80

23

SHAFT, SEC DRIVEN OUTPUT FRONT

24961-38F00

Unavailable

24

YOKE, FRONT DRIVE OUTPUT | Includes Item(s) 25

27130-03G00

$205.45

25

PLATE, OUTPUT YOKE

27592-38F00

$12.80

26

YOKE, PROP SHAFT FRONT

27140-03G00

$154.17

27

SHAFT, PROPELLER | MODEL K3

27151-38F50

Unavailable

27A

SHAFT, PROPELLER | MODEL K4/K5/K6/K7

27150-38F60

Unavailable

28

BOOT, PROPELLER SHAFT

27153-03G00

$9.59

29

JOINT SET,UNIVERSAL | Includes Item(s) 30 This part replaces 27200-19810.

27200-19811

$54.50

30

CIRCLIP

09380-20016

$2.34

31

BOLT (10X20)

09103-10310

$2.84

32

NUT, FRONT DRIVE YOKE

09159-16003

$4.33

33

WASHER, FRONT DRIVE YOKE

09160-16026

$5.43

34

BEARING, SEC DRIVEN FRONT | 25X52X15

09262-25131

$55.77

35

OIL SEAL, FRONT | 34X52X14

09283-34008

$18.71
