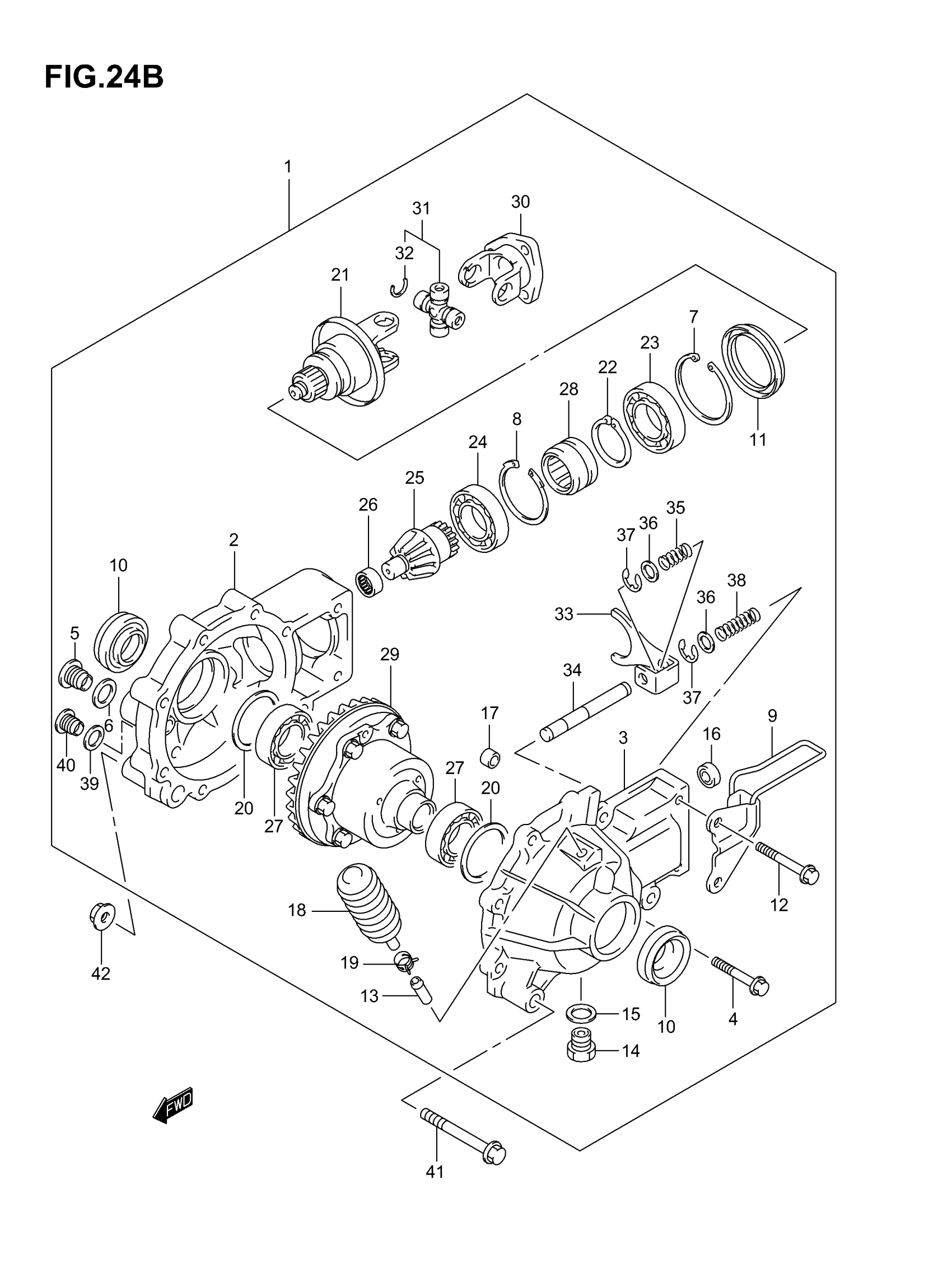

Suzuki LT-A400F (2007) FINAL BEVEL GEAR (FRONT)(MODEL K7) Diagram

#

Description
Price

1

CASE ASSY, FR DIFFERENTIAL | Includes Item(s) 2 - 40

27400-38F22

Unavailable

2

HOUSING, FINAL DRIVE FR

27451-38FB1

Unavailable

3

COVER, FINAL DRIVE FR

27461-38FA1

Unavailable

4

BOLT (8X25)

27401-38FA1

Unavailable

5

PLUG

27409-38FA0

$3.85

6

.WASHER This part replaces 27407-38FA0.

27407-31GA0

$8.37

7

RING SNAP

27403-38FA0

$5.43

8

RING SNAP

27403-38FB0

$5.43

9

BRACKET ASSY, SHIFT

27951-38FA0

$19.13

10

OIL SEAL

27406-38FD0

$7.01

11

OIL SEAL

27406-38FB0

$8.98

12

BOLT (8X50)

27401-38FB0

$3.58

13

PIPE, BRTHR

09364-08003

$3.42

14

PLUG

27409-38FB0

Unavailable

15

WASHER

27407-38FB0

$2.56

16

OIL SEAL

27406-38FC0

Unavailable

17

COLLAR

27404-31GA0

Unavailable

18

CASE,BREATHER This part replaces 27491-38F00.

27491-38F10

$16.94

19

CLIP

09401-08411

$1.77

20

SHIM SET | T:0.70/0.75/0.80/0.85/0.90/0.95/ 1.00/1.05/1.10/1.15/1.20/1.25/ 1.30/1.35/1.40/1.45

27445-38FA0

$127.22

21

YOKE ASSY This part replaces 27130-38FA0.

27130-03GA0

$126.03

22

SNAP RING

27403-38FC0

$3.68

23

BEARING

27405-38FA0

$27.27

24

BEARING

27405-38FB0

$28.69

25

PINION, DRIVE

27311-38FA0

Unavailable

26

BEARING

27405-38FC0

$11.32

27

BEARING

27405-38FD0

$14.94

28

SLEEVE

27371-31GA0

$86.17

29

GEAR ASSY

27320-38FA0

Unavailable

30

YOKE, PROP SHAFT JOINT FR

27161-03GA0

$103.88

31

JOINT SET,UNIVERSAL This part replaces 27200-19810.

27200-19811

$54.50

32

CIRCLIP

09380-20016

$2.34

33

FORK, SHIFT

27941-38FA0

$17.05

34

ROD, SHIFT

27921-38FA0

Unavailable

35

SPRING, SHIFT

27402-38FA0

$3.17

36

WASHER

27407-38FC0

Unavailable

37

E RING

27403-38FD0

$2.90

38

SPRING, RETURN

27402-38FB0

Unavailable

39

WASHER

27407-38FD0

$2.80

40

PLUG

27409-38FC0

$6.03

41

BOLT, FR DIFFERENTIAL

09103-10148

$6.26

42

NUT, FR DIFFERENTIAL

08319-31107

$2.73
