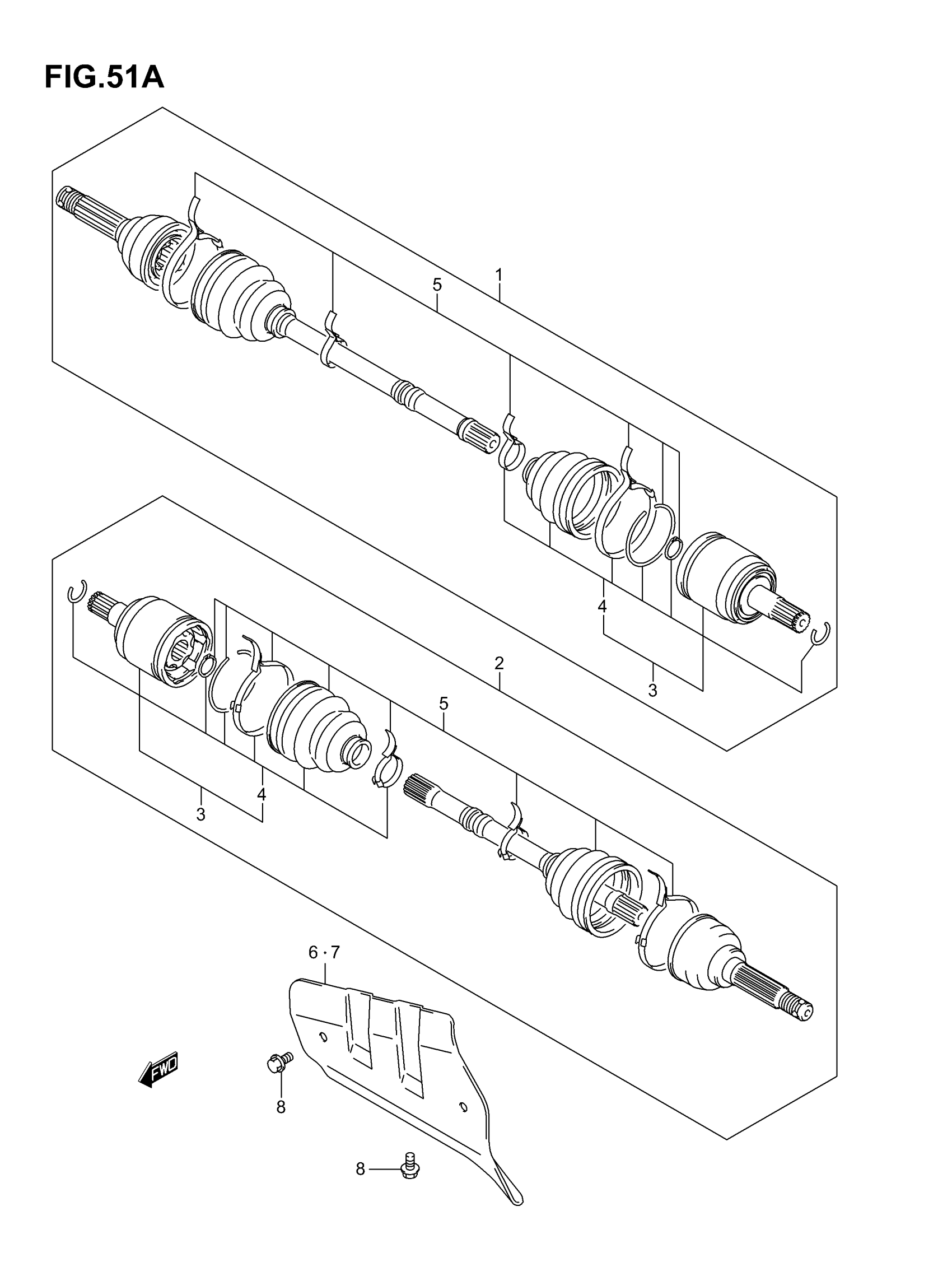

Suzuki LT-A400F (2007) FRONT DRIVE SHAFT (MODEL K5/K6/K7) Diagram

#

Description
Price

1

SHAFT ASSY,FRT | MODEL K5/K6 This part replaces 54901-38F20.

54901-38F23

$377.12

1

SHAFT ASSY,FRT | MODEL K7 This part replaces 54901-38F22.

54901-38F23

$377.12

2

SHAFT ASSY,FRT | MODEL K5/K6 This part replaces 54902-38F20.

54902-38F23

$376.97

2

SHAFT ASSY,FRT | MODEL K7; Includes Item(s) 3 - 5 This part replaces 54902-38F22.

54902-38F23

$376.97

3

JOINT SET | MODEL K5/K6 This part replaces 54933-38F10.

54933-38FV0

Unavailable

3

JOINT SET | MODEL K7 This part replaces 54933-38F12.

54933-38FV0

Unavailable

4

BOOT SET,INNER | MODEL K5/K6 This part replaces 54931-38F10.

54931-38FV0

$77.38

4

BOOT SET,INNER | MODEL K7 This part replaces 54931-38F12.

54931-38FV0

$77.38

5

BOOT SET,OUTER | MODEL K5/K6 This part replaces 54930-03G20.

54930-03GV0

$104.48

5

BOOT SET,OUTER | MODEL K7 This part replaces 54930-03G22.

54930-03G23

Unavailable

6

PROTECTOR,FRONT DRIVE SHAFT,R | MODEL K5/K6 This part replaces 54903-38F10.

54903-27H01

$15.87

6

PROTECTOR,FRONT DRIVE SHAFT,R | MODEL K7 This part replaces 54903-38F20.

54903-27H01

$15.87

7

PROTECTOR,FR D/ | MODEL K5/K6 This part replaces 54904-38F10.

54904-27H00-291

$18.12

7

PROTECTOR,FR D/ | MODEL K7 This part replaces 54904-38F20.

54904-27H00-291

$18.12

8

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97
