2002 Suzuki LT-A400 Front Brake Hose Diagram

← All diagrams

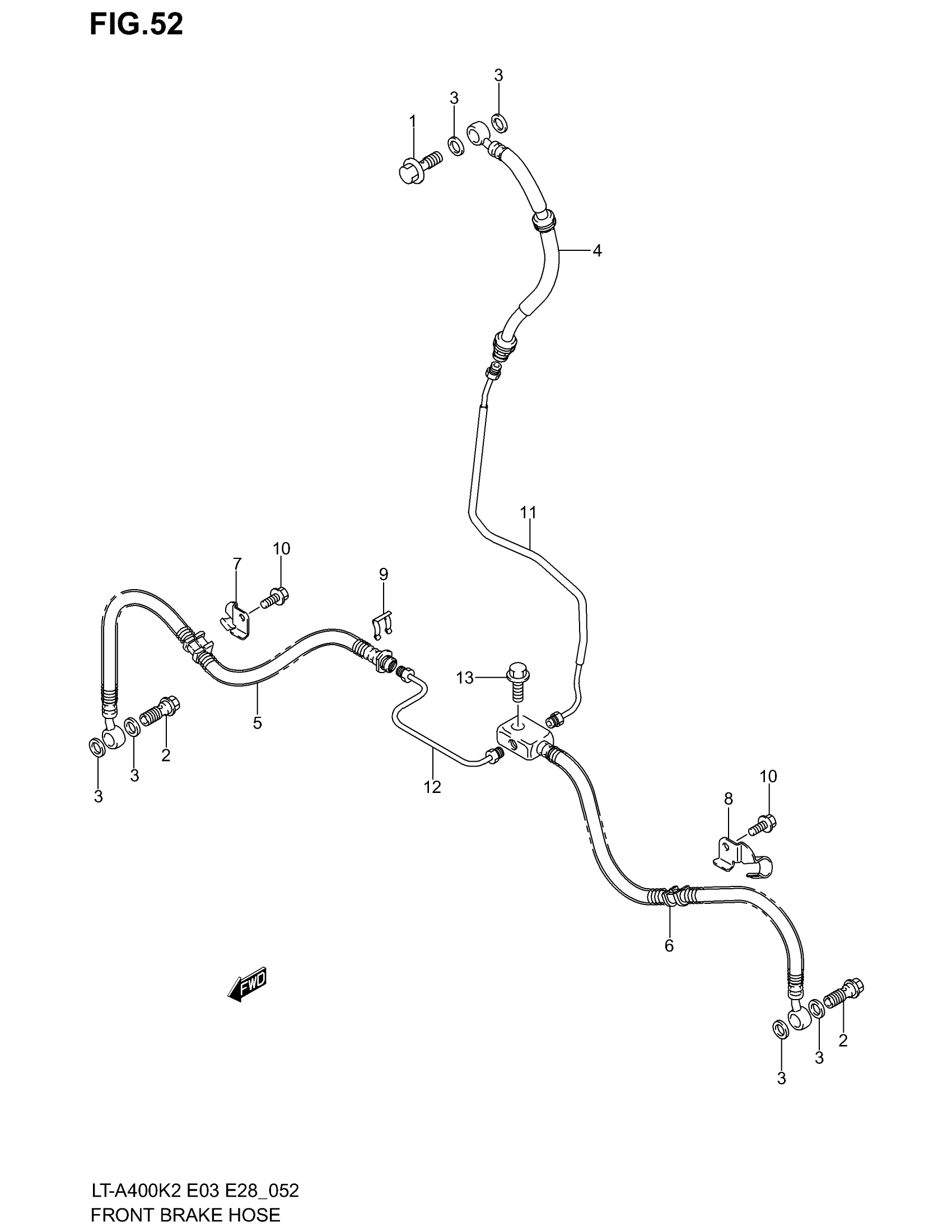

Find the part on the Front Brake Hose diagram for your 2002 Suzuki LT-A400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Suzuki LT-A400 Front Brake Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$6.33

In stock

2

UNION This part replaces 09360-10042.

09360-10062

2
Out of stock

3

WASHER (10X15X1.5)

09161-10009

6
Out of stock

4

HOSE, FRONT BRAKE NO.1 This part replaces 59480-38F00.

59480-38F20

1
Out of stock

5

HOSE, FRONT BRAKE NO.2 RH This part replaces 59240-38F00.

59240-38F20

1
Out of stock

6

HOSE, FRONT BRAKE NO.2 LH This part replaces 59440-38F00.

59440-38F20

1
Out of stock

7

CLAMP, HOSE NO.2 RH

59261-38F00

1
Out of stock

8

CLAMP, HOSE NO.2 LH

59271-38F00

1
Out of stock

9

1

$2.83

In stock

10

BOLT This part replaces 01550-06163.

01550-0616A

2
Out of stock

11

PIPE, FRONT BRAKE RH

59250-38F00

1
Out of stock

12

PIPE, FRONT BRAKE LH

59450-38F00

1
Out of stock

13

BOLT This part replaces 01550-08253.

01550-0825A

1
Out of stock
