Description

Price

1

PEDAL, BRAKE

43110-38F10

Unavailable

2

O RING

09280-17002

$4.62

3

BOLT,BRAKE PEDA This part replaces 07120-06803.

07120-0680B

$5.75

4

WASHER

09160-06136

$1.83

5

NUT This part replaces 08319-31063.

08319-3106A

$2.01

6

SPRING, RETURN

09443-12019

$4.07

7

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.77

8

NUT This part replaces 08310-00063.

08310-0006A

$1.83

9

CABLE, BRAKE PEDAL This part replaces 58510-38F00.

58510-38F01

$77.90

10

CABLE, REAR BRAKE

58810-38F00

$61.91

11

PIN

09200-05001

$1.52

12

COTTER PIN

09385-06012

$1.89

13

.WASHER This part replaces 08322-01063.

08322-0106B

$2.24

14

PIN, ADJUSTER

09209-13006

$4.73

15

SPRING This part replaces 09440-08040.

09440-08040-XC0

$2.61

16

NUT

09150-06012

$3.08

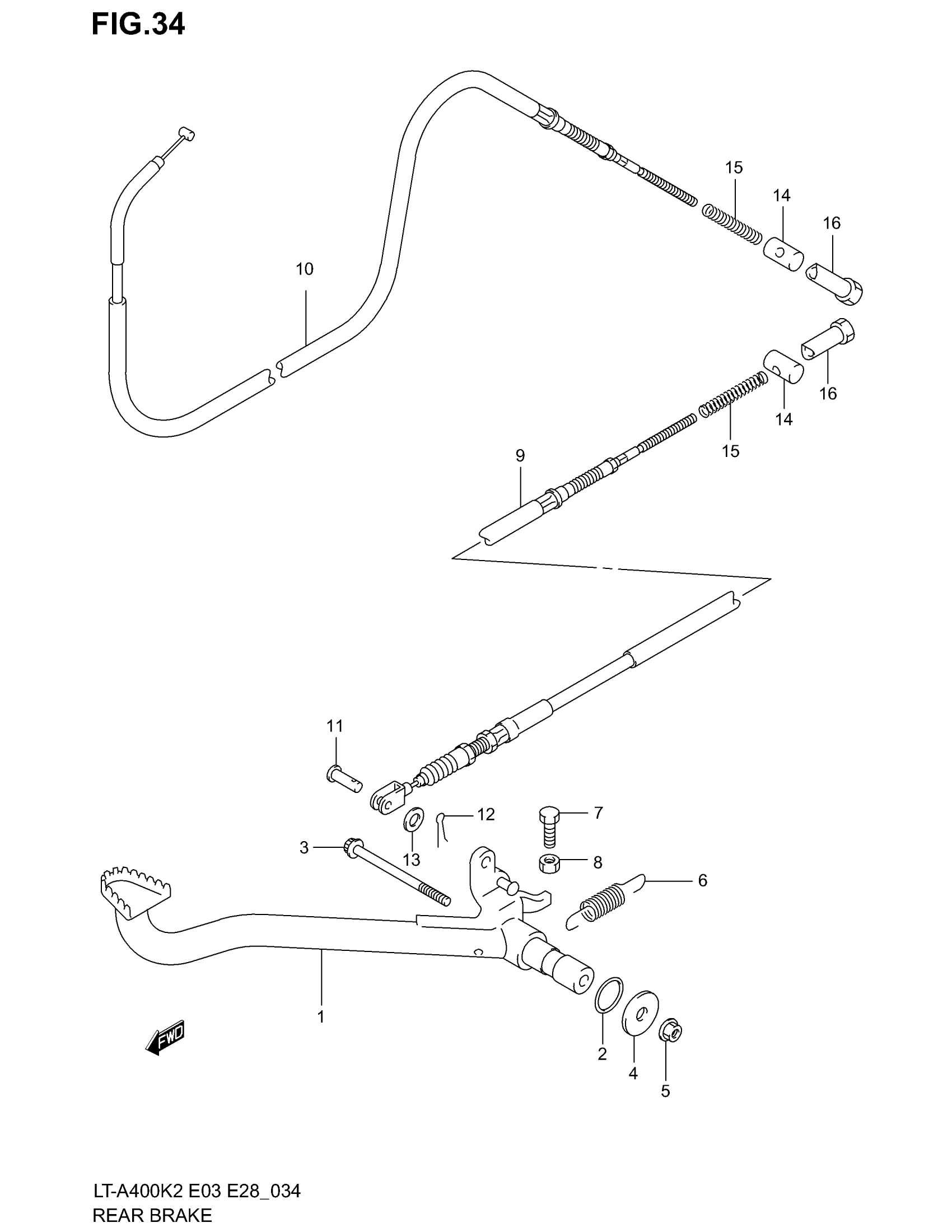

Suzuki LT-A400 (2002) REAR BRAKE Diagram
