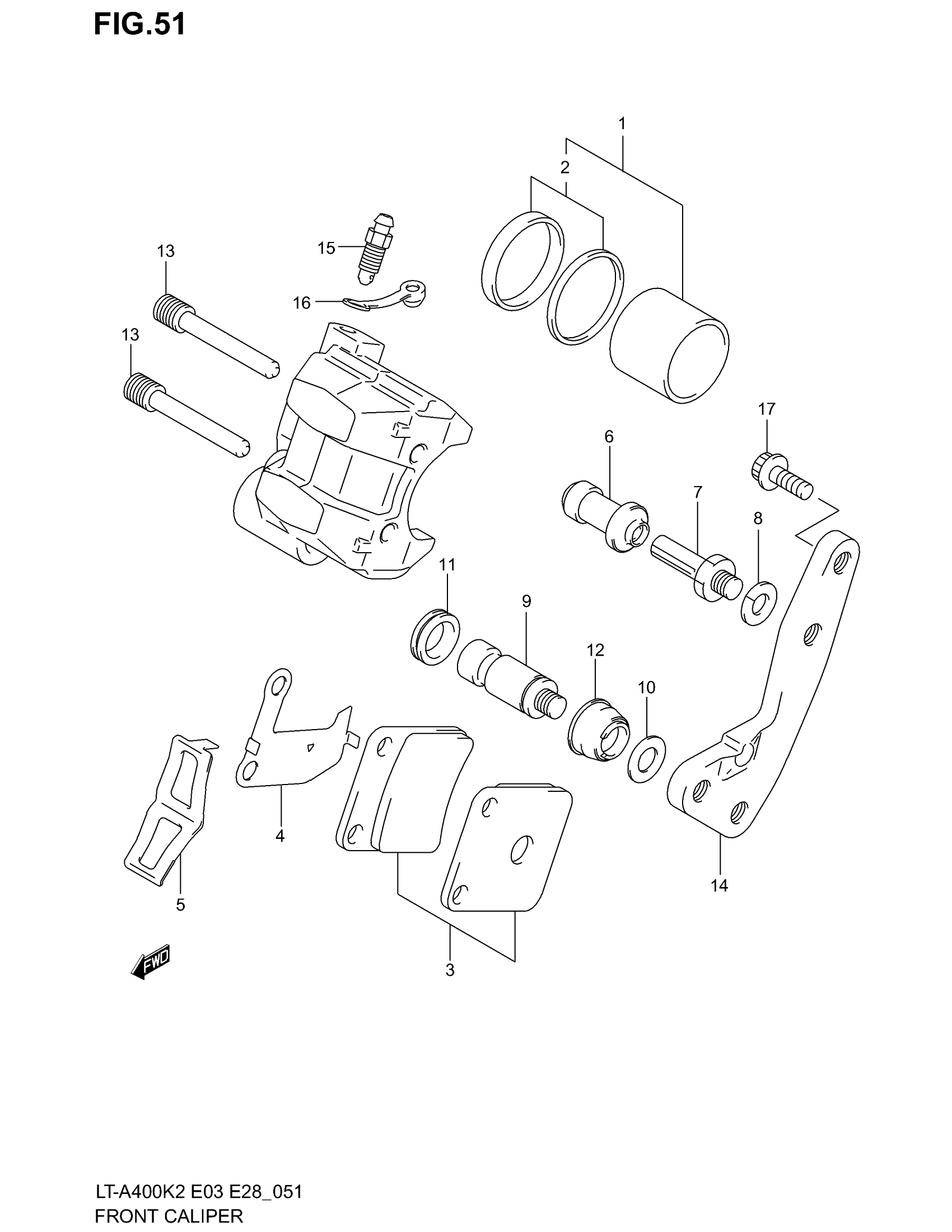

Suzuki LT-A400 (2002) FRONT CALIPER Diagram

#

Description
Price

CALIPER ASSY, FRONT RH This part replaces 59100-38F00.

59100-38F30-999

$263.63

CALIPER ASSY, FRONT LH | Includes Item(s) 1 - 16 This part replaces 59300-38F00.

59300-38F30-999

$263.63

1

PISTON SET

59100-38850

$40.51

2

SEAL SET, PISTON

59100-38860

$15.55

3

PAD SET

59100-38870

$44.52

4

SHIM, RH

59371-13A00

$10.58

4

SHIM, LH

69372-00B20

$12.43

5

SPRING, PAD

59315-13A00

$12.43

6

BOOT

59386-13A00

$7.28

7

PIN

59382-13A00

$7.24

8

WASHER

59314-13A00

$2.28

9

PIN, SLIDE

59105-38F00

$22.32

10

SPRING

59306-13A00

$3.57

11

SEAL, DUST

59384-13A00

$4.93

12

BOOT

59303-13A00

$5.46

13

PIN

59345-00B20

$13.38

14

BRACKET, RH

59151-38F00

$60.38

14

BRACKET, LH

59351-38F00

$60.38

15

BLEEDER

59121-01A00

$7.99

16

CAP

59122-01A00

$3.97

17

BOLT This part replaces 07120-08163.

07120-0816A

$2.80
