Find the part on the Front Wheel diagram for your 1998 Suzuki LT-4WDXW, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

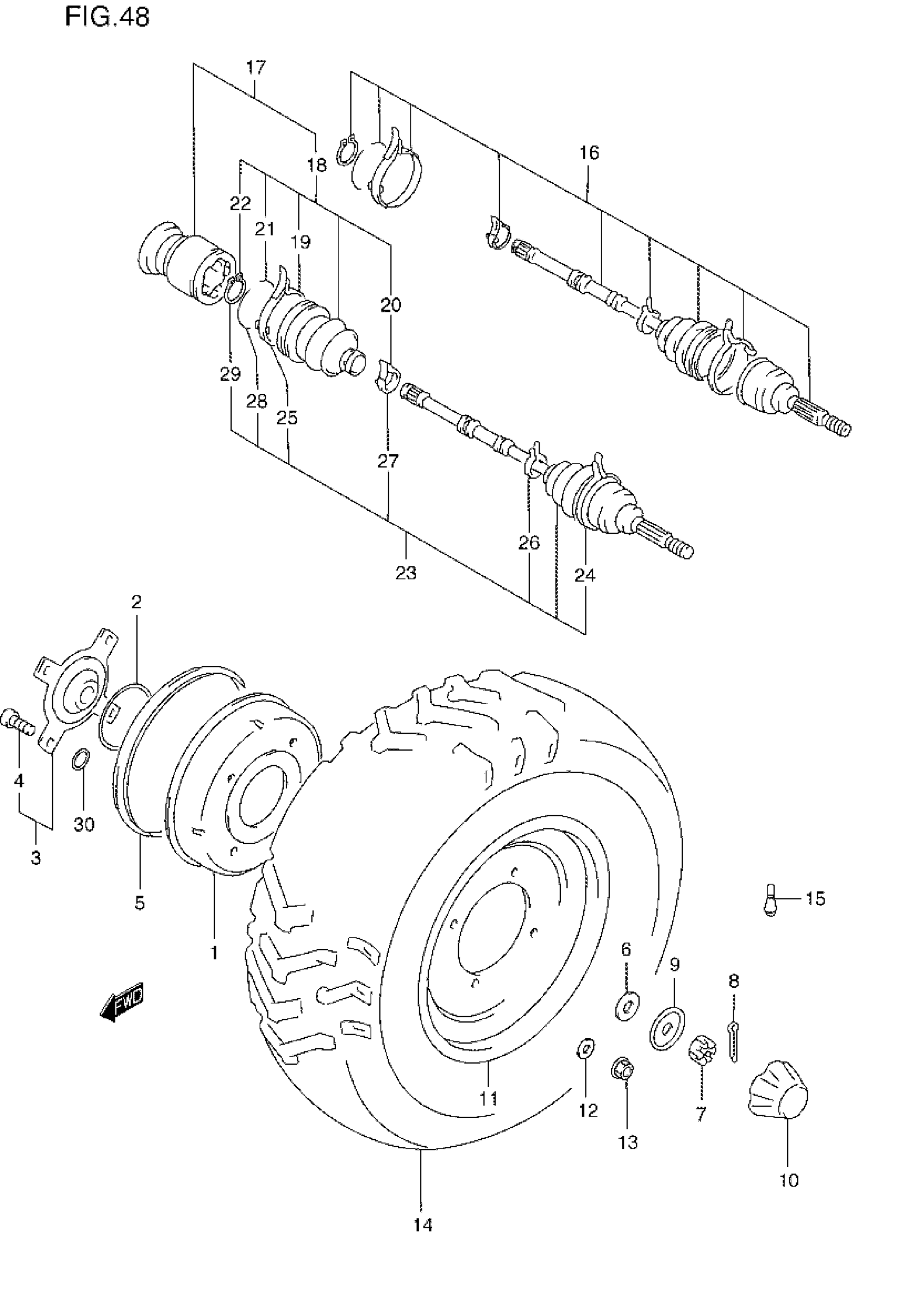

1998 Suzuki LT-4WDXW Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DRUM, BRAKE

54120-39D00

2
Out of stock

2

2

$3.79

In stock

3

HUB, FRONT | Includes Item(s) 4

54110-39D01

2
Out of stock

4

8

$2.23

In stock

5

DUST SEAL, DRUM BRAKE

54124-39D10

2
Out of stock

6

WASHER, HUB

09164-18004

2
Out of stock

7

NUT, HUB

09141-18008

2

$8.27

In stock

8

2

$1.47

In stock

9

HOLDER, CENTER CAP

64726-19B00

2

$3.39

In stock

10

CAP, WHEEL CENTER

54725-39D00

2

$15.15

In stock

11

NO DESCRIPTION AVAILABLE | FOR Y5G This part replaces 55310-19B81-13L.

55310-39D10-13L

2
Out of stock

11

RIM,FRONT WHEEL | FOR Z34 This part replaces 55310-19B81-12R.

55310-39D20-PBV

2
Out of stock

12

WASHER, WHEEL

09160-10126

8
Out of stock

13

NUT This part replaces 08316-10103.

08316-1010B

8
Out of stock

14

TIRE COMP,FRONT This part replaces 55100-19B80.

55110-19BA0

2
Out of stock

15

2

$9.49

In stock

16

1

$662.43

In stock

17

JOINT SET,FRONT This part replaces 54933-19B20.

54933-19B21

2
Out of stock

18

BOOT SET,INNER This part replaces 54931-19B20.

54931-19B21

2
Out of stock

19

BOOT SET,OUTER This part replaces 54930-19B20.

54930-19B21

2
Out of stock

20

O RING (ID:9.8,D:1.90)

09280-10016

8
Out of stock

21

NOTE

SPECIAL NOTE

—
Out of stock
