1998 Suzuki LT-4WDXW Handle Lever Diagram

← All diagrams

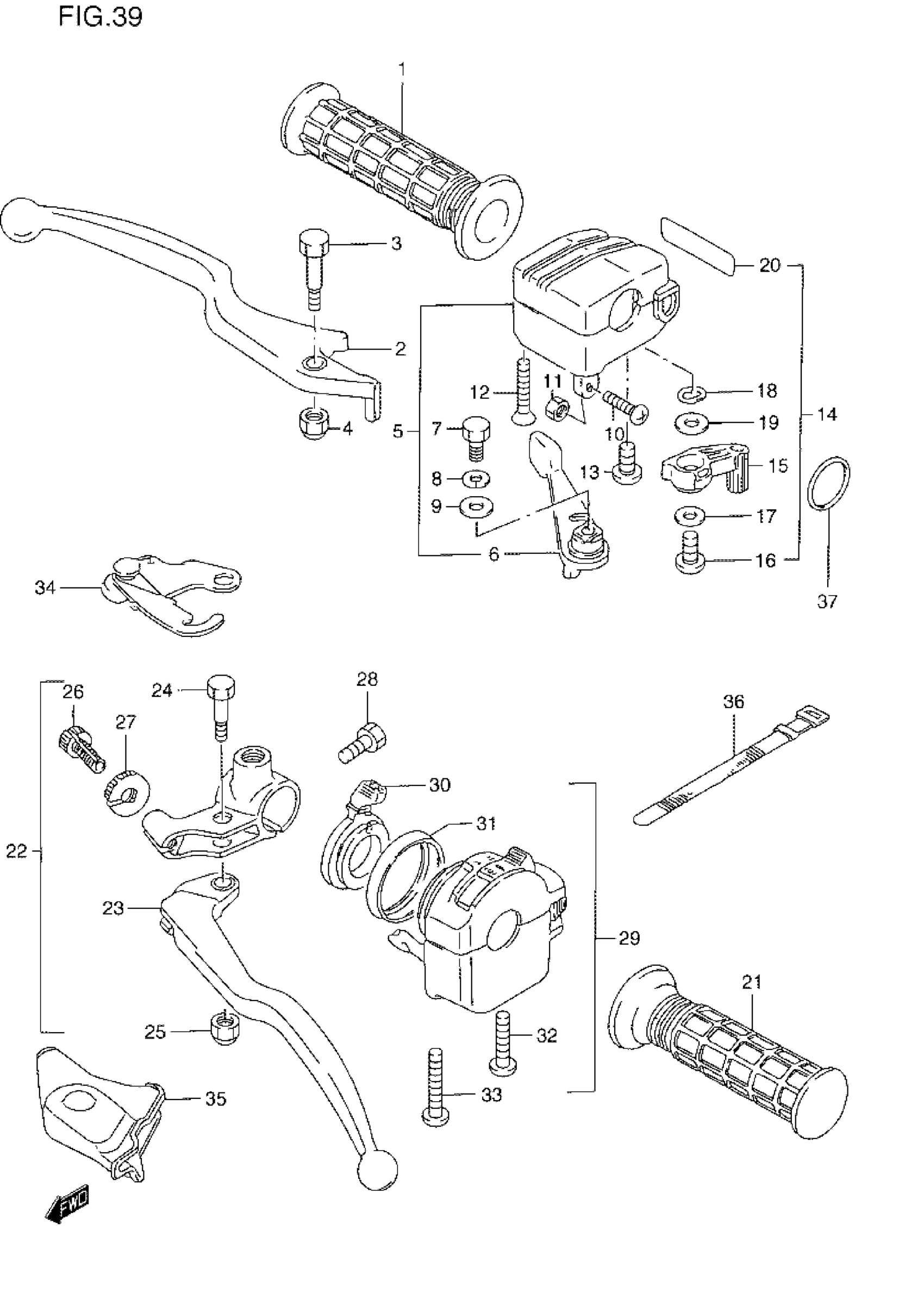

Find the part on the Handle Lever diagram for your 1998 Suzuki LT-4WDXW, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Suzuki LT-4WDXW Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP This part replaces 57211-19A03-291.

57211-19A04-291

1
Out of stock

2

LEVER, BRAKE

57421-39D10

1
Out of stock

3

BOLT This part replaces 57431-13030.

09111-06075

1
Out of stock

4

.NUT This part replaces 08319-21063.

08319-2106B

1
Out of stock

5

CASE ASSY, THROTTLE | Includes Item(s) 6 - 13 This part replaces 57100-19B02.

57100-39DB0

1
Out of stock

6

LEVER

57151-24301

1
Out of stock

7

BOLT This part replaces 01500-06163.

01500-0616A

1
Out of stock

8

LOCK WASHER This part replaces 08321-01063.

08321-0106A

1
Out of stock

9

WASHER

09160-06019

1
Out of stock

10

SCREW

09125-05066

1
Out of stock

11

NUT

09140-05006

1
Out of stock

12

SCREW

02132-05307

2
Out of stock

13

SCREW This part replaces 02112-05123.

02112-0512A

1
Out of stock

14

LEVER SET, THROTTLE POSITION | OPT,E28; Includes Item(s) 15 - 20

57300-19820

—
Out of stock

15

LEVER, STOP | OPT,E28

57155-18B10

1
Out of stock

16

SCREW | OPT,E28 This part replaces 02112-05123.

02112-0512A

1
Out of stock

17

WASHER, FRONT | OPT,E28 This part replaces 08322-01053.

08322-0105A

1
Out of stock

18

WASHER | OPT,E28

57156-24300

1
Out of stock

19

WASHER | OPT,E28

09160-08003

1
Out of stock

20

LABEL | OPT,E28

68628-19B00

—
Out of stock

21

GRIP This part replaces 57211-19A03-291.

57211-19A04-291

1
Out of stock

22

LEVER ASSY, REAR BRAKE | Includes Item(s) 23 - 28

57500-24502

1
Out of stock

23

LEVER

57620-24501

1
Out of stock

24

BOLT

57431-29502

1
Out of stock

25

.NUT This part replaces 08319-21063.

08319-2106B

1
Out of stock

26

ADJUSTER

57441-44400

1
Out of stock

27

NUT This part replaces 57442-44400.

57442-11010

1
Out of stock

28

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

1
Out of stock

29

SWITCH ASSY,HAN | Includes Item(s) 30 - 33 This part replaces 37400-19B11.

37400-19B13

1
Out of stock

30

LEVER, CHOKE

37571-19B01

1
Out of stock

31

COVER, CHOKE

37576-19B01

1
Out of stock

32

SCREW

02112-05407

1
Out of stock

33

SCREW

02112-05457

1
Out of stock

34

STOPPER, BRAKE

57790-19B00

1
Out of stock

35

COVER, BRAKE DUST This part replaces 57541-29500.

57541-29501

1
Out of stock

36

BAND

09407-12402

2
Out of stock

37

O RING

09280-24009

1
Out of stock
