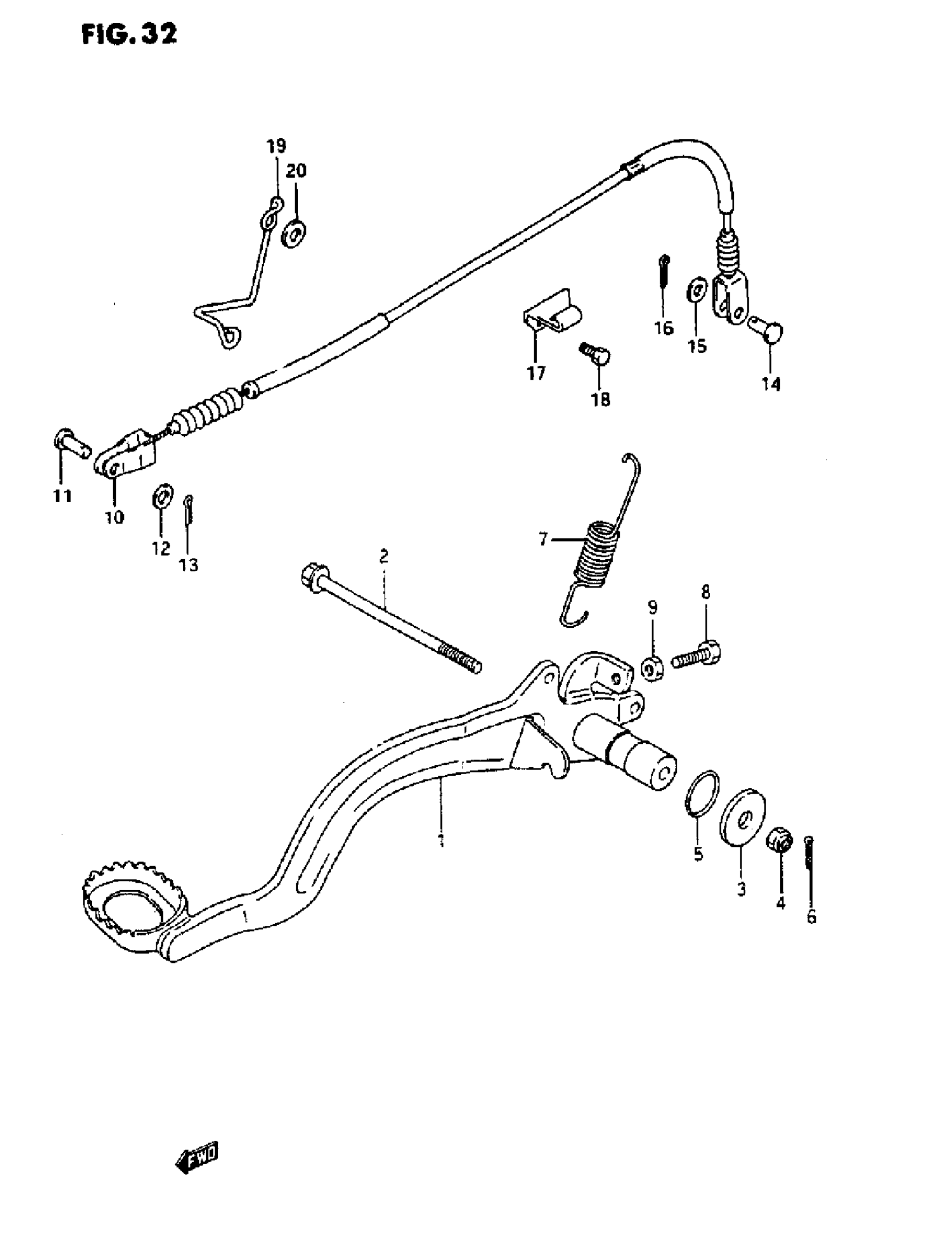

Find the part on the Rear Brake diagram for your 1997 Suzuki LT-4WD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Suzuki LT-4WD Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE

43110-19B20

1
Out of stock

2

BOLT

09103-06L06

—
Out of stock

3

WASHER, INNER This part replaces 09160-06096.

09160-06135

1
Out of stock

4

.NUT This part replaces 08319-21065.

08319-2106B

1
Out of stock

5

0 RING

09280-17002

2
Out of stock

6

.COTTER PIN This part replaces 04111-20158.

04111-2015A

1
Out of stock

7

SPRING

09443-15032

1
Out of stock

8

BOLT This part replaces 09100-06091.

01500-06207

1
Out of stock

9

NUT This part replaces 08310-00063.

08310-0006A

1
Out of stock

10

CABLE ASSY, REAR BRAKE

58510-19B02

1
Out of stock

11

PIN, FRONT

09200-06013

1
Out of stock

12

WASHER

08322-0L063

—
Out of stock

13

COTTER PIN This part replaces 04111-20208.

04111-2020A

1
Out of stock

14

PIN, REAR

09200-08061

1
Out of stock

15

WASHER This part replaces 08322-01083.

08322-0108A

1
Out of stock

16

COTTER PIN This part replaces 04111-20208.

04111-2020A

1
Out of stock

17

BRACKET, CABLE

58575-19B00

1
Out of stock

18

BOLT

01570-06L63

—
Out of stock

19

GUIDE, CABLE

58611-19B02

1
Out of stock

20

.WASHER This part replaces 08322-01063.

08322-0106B

2
Out of stock
