1997 Suzuki LT-4WD Front Suspension ARM Diagram

← All diagrams

Find the part on the Front Suspension ARM diagram for your 1997 Suzuki LT-4WD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

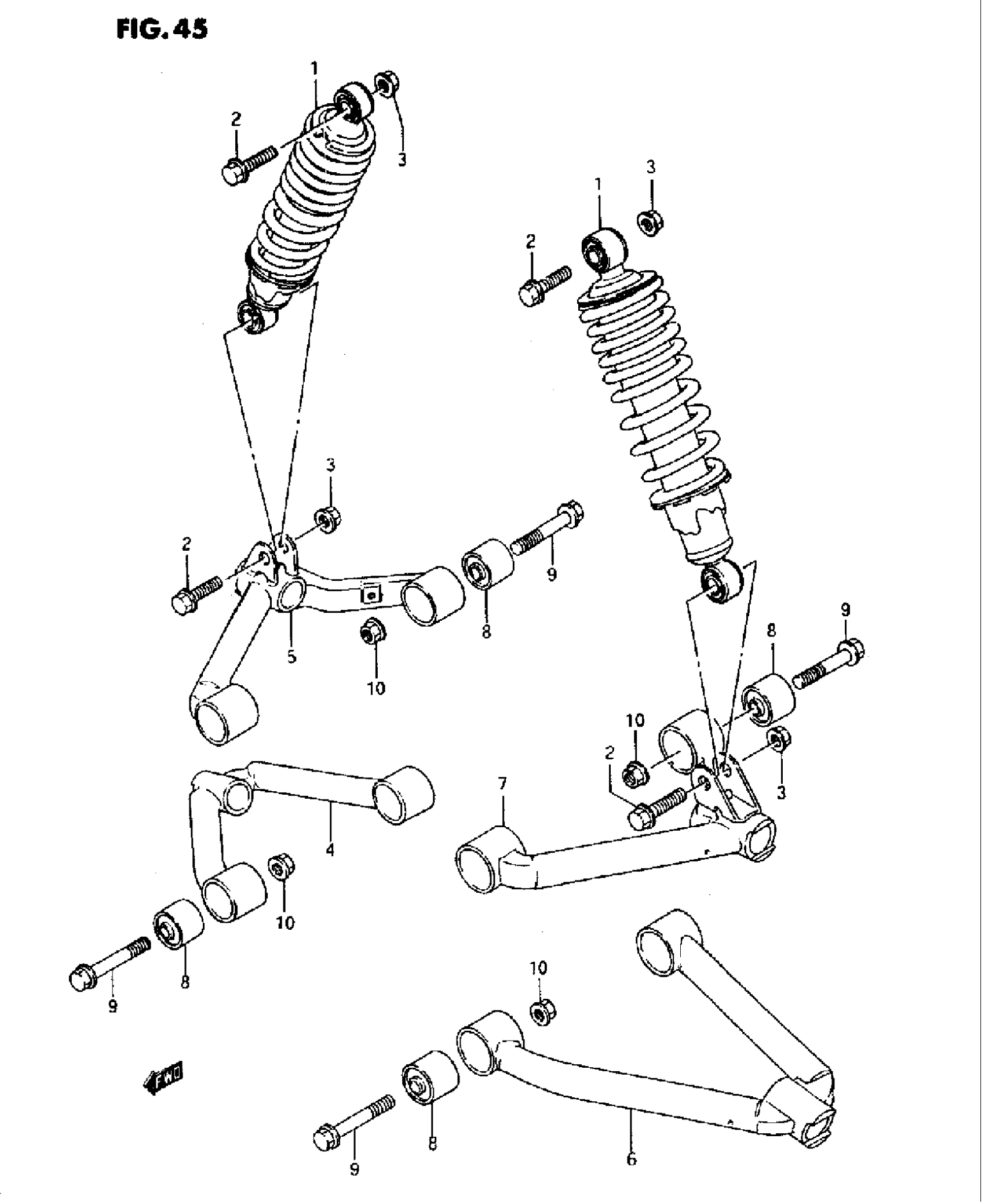

1997 Suzuki LT-4WD Front Suspension ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ABSORBER ASSY, FRONT SHOCK (BLACK) This part replaces 52100-19B10-019.

52100-19B20-019

1
Out of stock

2

BOLT, SHOCK ABSORBER (LOX37)

09103-10019

4
Out of stock

3

NUT This part replaces 08319-31103.

08319-3110A

4
Out of stock

4

ARM,SUSPENSION This part replaces 52410-19B10.

52410-19B11

1
Out of stock

5

NO DESCRIPTION AVAILABLE This part replaces 52430-19B10.

52430-19B11

1
Out of stock

6

NO DESCRIPTION AVAILABLE This part replaces 52420-19B10.

52420-19B11

1
Out of stock

7

NO DESCRIPTION AVAILABLE This part replaces 52440-19B10.

52440-19B11

1
Out of stock

8

BUSH, SUSPENSION ARM

09319-10055

8
Out of stock

9

1

$4.54

In stock

10

NUT This part replaces 08319-31105.

08319-3110A

8
Out of stock
