1997 Suzuki LT-4WD Front Wheel Brake Diagram

← All diagrams

Find the part on the Front Wheel Brake diagram for your 1997 Suzuki LT-4WD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

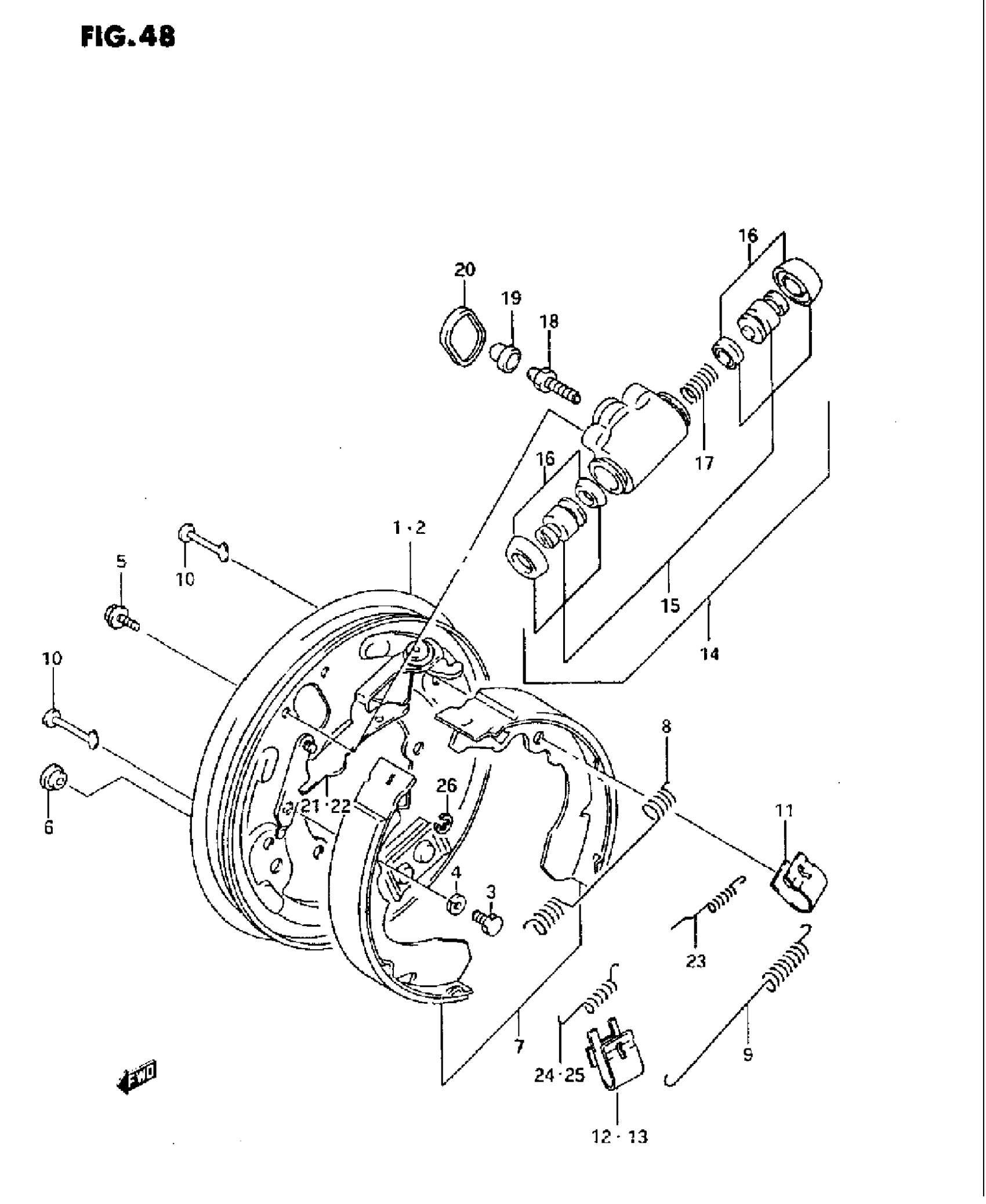

1997 Suzuki LT-4WD Front Wheel Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PLATE, BACKING RH

54510-19B20

1
Out of stock

2

PLATE, BACKING LH

54810-19B20

1
Out of stock

3

8

$2.68

In stock

4

8

$1.99

In stock

5

BOLT This part replaces 01550-06103.

01550-0610A

4
Out of stock

6

PLUG, BACKING PLATE

54515-39D00

2

$3.30

In stock

7

SHOE SET, BRAKE

54400-19830

2
Out of stock

8

SPRING, SHOE RETURN UPPER

54531-19B01

2
Out of stock

9

SPRING SHOE RETURN LOWER

54532-19B01

2
Out of stock

10

PIN, SHOE HOLD DOWN

53241-82030

4

$3.02

In stock

11

2

$5.80

In stock

12

1

$8.37

In stock

13

1

$8.48

In stock

14

CYLINDER ASSY, REAR WHEEL

54540-19810

—
Out of stock

15

PISTON SET

54500-19810

2
Out of stock

16

2

$15.49

In stock

17

2

$4.05

In stock

18

PLUG, BLEEDER

54542-19800

—
Out of stock

19

CAP, BLEEDER PLUG

55156-66310

2
Out of stock

20

2

$3.02

In stock

21

STRUT ASSY, BRAKE RH

54550-19B10

1
Out of stock

22

STRUT ASSY, BRAKE LH

54850-19B10

1
Out of stock

23

2

$3.71

In stock

26

E RING This part replaces 08332-11043.

08332-1104A

2
Out of stock
