1997 Suzuki LT-4WD Oil Pump - Fuel Pump Diagram

← All diagrams

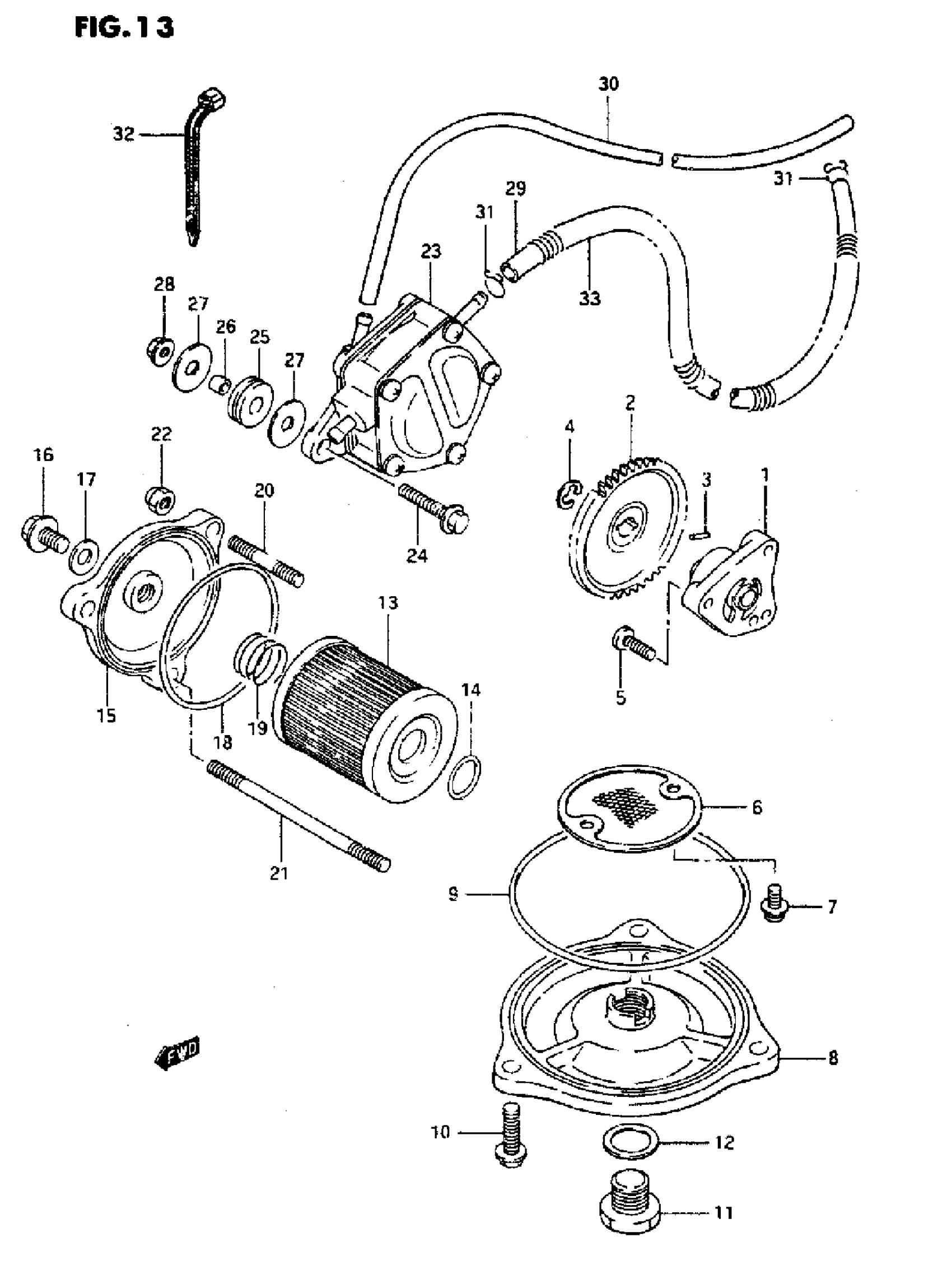

Find the part on the Oil Pump - Fuel Pump diagram for your 1997 Suzuki LT-4WD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Suzuki LT-4WD Oil Pump - Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP, ENGINE OIL

16400-19B00

1
Out of stock

2

GEAR, DRIVEN (NT:47)

16331-20B00

1
Out of stock

3

PIN

09261-02008

1
Out of stock

4

CIRCLIP

18332-11063

—
Out of stock

5

SCREW This part replaces 02112-06203.

02112-0620A

3
Out of stock

6

STRAINER, ENGINE OIL

16520-05202

1
Out of stock

7

SCREW This part replaces 02112-75123.

02112-7512A

2
Out of stock

8

CAP, OIL STRAINER

16523-38200

1
Out of stock

9

0 RING (D:2.4, ID:82)

09280-82001

1
Out of stock

10

..BOLT This part replaces 01547-06203.

01547-0620B

3
Out of stock

11

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

1
Out of stock

12

GASKET (13.8XL8.8X0.4)

09168-14002

1
Out of stock

13

FILTER, ENGINE OIL

16510-25000

—
Out of stock

14

0 RING (0:1.9, 70:13)

09280-13004

1
Out of stock

15

CAP, OIL FILTER

16512-22A00

1
Out of stock

16

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

1
Out of stock

17

GASKET

09168-08015

1
Out of stock

18

0 RING (D:2.4, ID: 52.6)

09200-54001

—
Out of stock

19

SPRING This part replaces 48281-85000.

09440-18002

1
Out of stock

20

BOLT,STUD This part replaces 01421-06168.

01421-0616A

2
Out of stock

21

STUD 6 X 75 This part replaces 01421-06758.

01421-0675A

1
Out of stock

22

NUT This part replaces 08313-10063.

08313-1006A

3
Out of stock

23

PUMP ASSY,FUEL This part replaces 15100-19B10.

15100-19B11

1
Out of stock

24

BOLT This part replaces 01550-06253.

01550-0625A

2
Out of stock

25

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

2
Out of stock

26

SPACER (6.1X9X7.5)

09180-06038

2
Out of stock

27

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

4
Out of stock

28

NUT This part replaces 08316-10063.

08316-1006B

2
Out of stock

29

HOSE, FUEL | L:2000->750

09352-60103-00B

1
Out of stock

30

HOSE(4X7X2000) | L:2000->730 This part replaces 09359-40701-00B.

09359-40703-00B

1
Out of stock

31

CLIP

09401-10401

2
Out of stock

32

CLAMP(L:235)

09407-25401

1
Out of stock

33

SPRING

09440-13042

2
Out of stock
