1997 Suzuki LT-4WD Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1997 Suzuki LT-4WD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

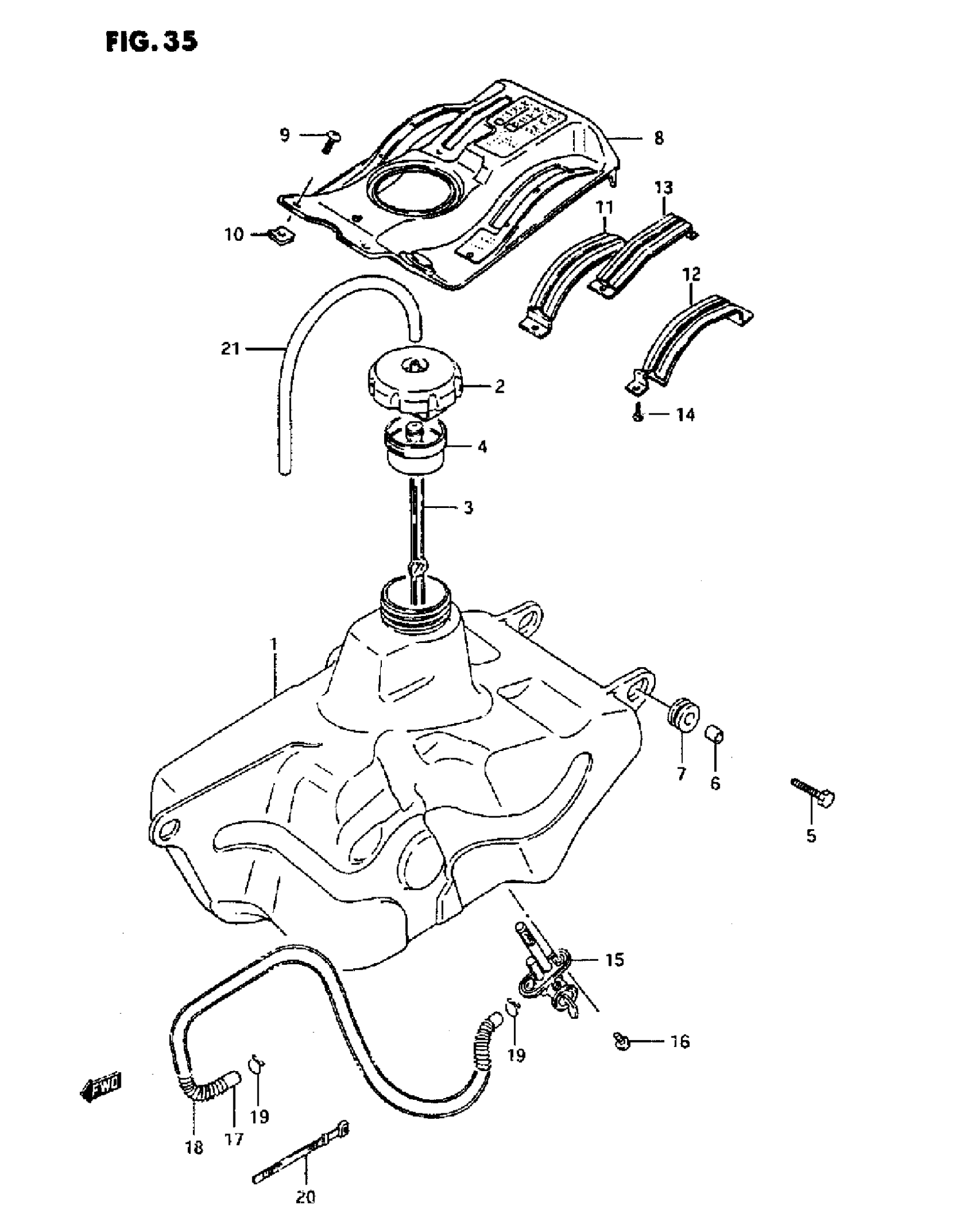

1997 Suzuki LT-4WD Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, FUEL This part replaces 44110-19B00.

44110-19B01

1
Out of stock

2

CAP, FUEL TANK

44200-19B00

1
Out of stock

3

GAGE,FUEL This part replaces 44501-19B00.

44501-19B01

1
Out of stock

4

TUBE, FILLER INLET

44199-19A00

1
Out of stock

5

BOLT

09118-08121

3
Out of stock

6

SPACER | MODEL T This part replaces 09180-08120.

09180-08209

3
Out of stock

6

SPACER | MODEL V

09180-08209

3
Out of stock

7

CUSHION

09320-12016

3
Out of stock

8

COVER, FUEL TANK

44270-19B10

1
Out of stock

9

SCREW This part replaces 09136-06062.

09136-06017

4
Out of stock

10

NUT

53141-19A00

4
Out of stock

11

PLATE, LEVER SEAL RH

57950-19800

—
Out of stock

12

PLATE,LEVER SEA This part replaces 57990-19B00.

57990-19B01

1
Out of stock

13

PLATE, REVERSE LEVER SEAL

44310-19800

—
Out of stock

14

SCREW This part replaces 03511-04103.

03511-0410A

5
Out of stock

15

COCK ASSY,FUEL This part replaces 44300-19B20.

44300-19B23

1
Out of stock

16

SCREW This part replaces 02112-36163.

02112-3616A

2
Out of stock

17

HOSE,5X10X600 | MODEL T This part replaces 09354-50103-600.

44421-13ER0

1
Out of stock

17

HOSE,5X10X600 | MODEL V This part replaces 09355-50105-600.

44421-13ER0

1
Out of stock

18

1

$13.76

In stock

19

CLIP

09401-10403

2
Out of stock

20

CLAW

09407-14403

2
Out of stock

21

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

1
Out of stock
