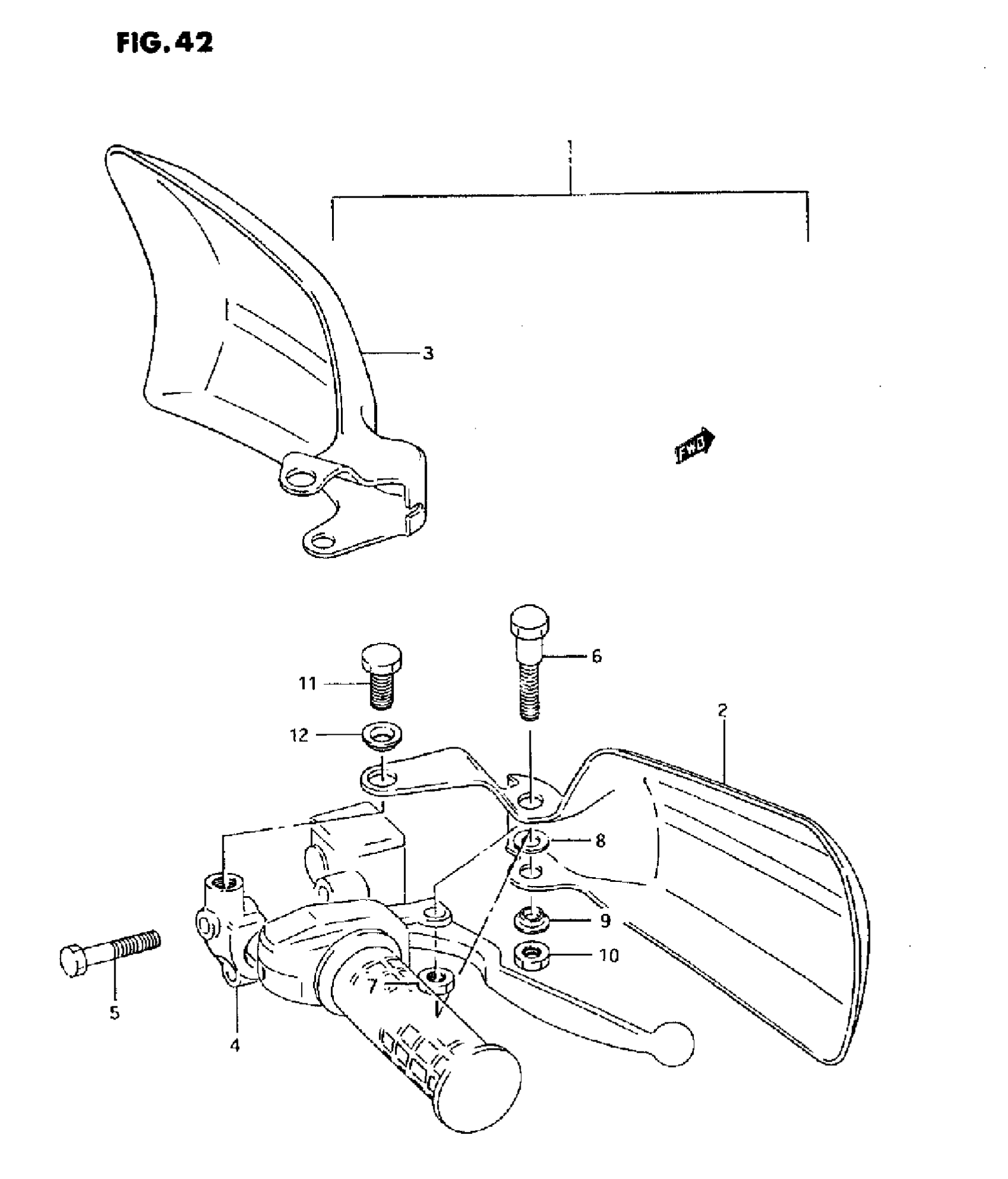

Suzuki LT-4WD (1997) KNUCKLE COVER Diagram

#

Description
Price

1

COVER SET, KNUCKLE (GREEN)

57300-19811-1AT

Unavailable

2

COVER, KNUCKLE RH (GREEN)

57341-19B50-1AT

Unavailable

3

COVER, KNUCKLE L.H (GREEN)

57541-19B50-1AT

Unavailable

4

HOLDER, MASTER CYLINDER

59671-44300

$19.60

5

BOLT This part replaces 01560-06403.

01560-0640B

$2.80

6

BOLT, LEVER PIVOT

09104-10036

$4.20

7

NUT This part replaces 09159-06068.

09159-06015

$2.10

8

WASHER

09160-06019

$1.38

9

WASHER

09169-06033

$1.57

10

NUT This part replaces 09159-06068.

09159-06015

$2.10

11

BOLT, MIRROR STAY

01204-10127

Unavailable

12

WASHER,KNUCKLE COVER UPPER,L This part replaces 09169-10010.

09169-10024

$2.20
