1995 Suzuki LT-4WD Rear Brake Diagram

← All diagrams

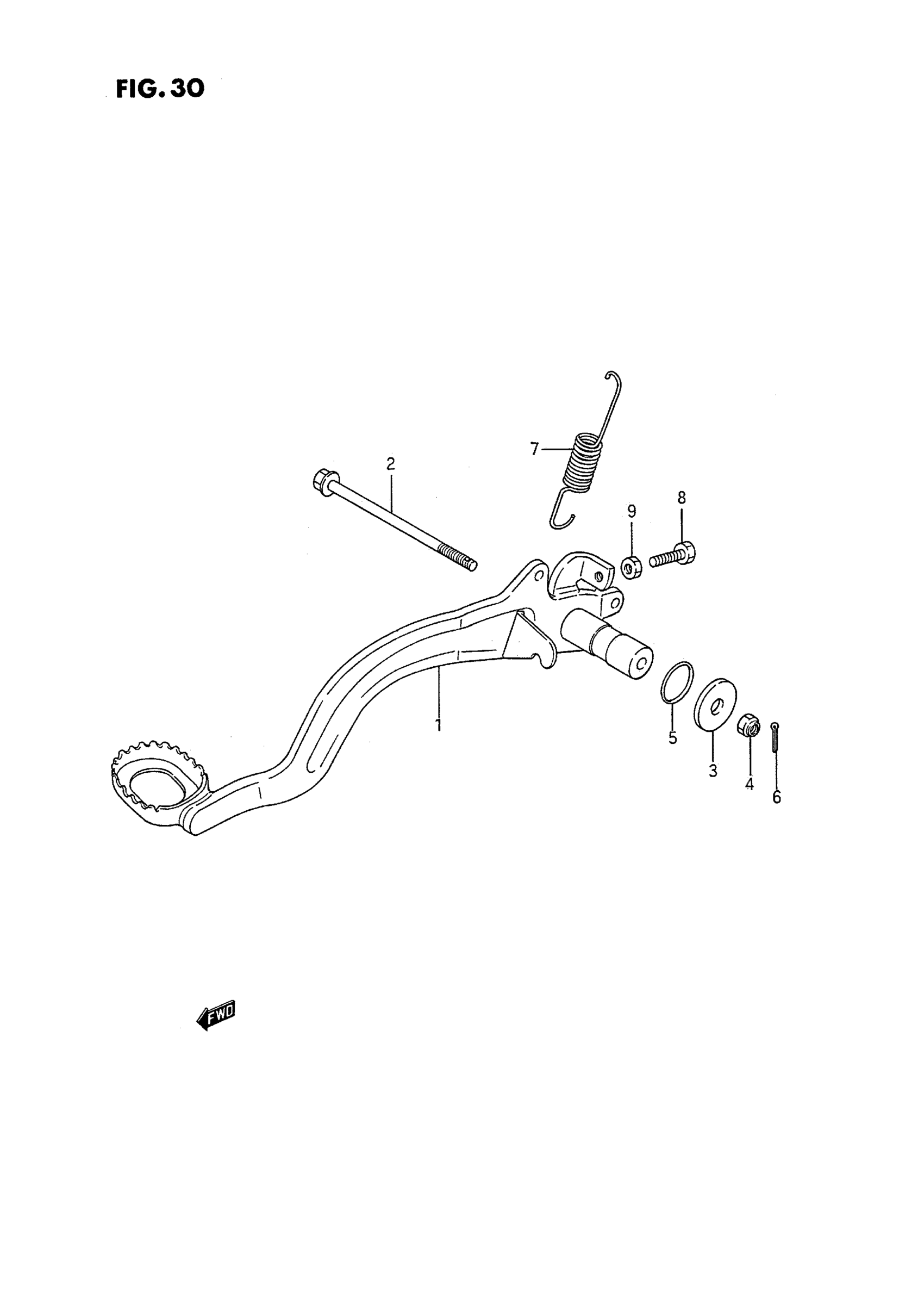

Find the part on the Rear Brake diagram for your 1995 Suzuki LT-4WD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Suzuki LT-4WD Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE | MODEL H/J/K/L

43110-19B00

1
Out of stock

1

PEDAL, BRAKE | MODEL M/N/P/R This part replaces 43110-19B10.

43110-19B20

1
Out of stock

1

PEDAL, BRAKE | MODEL S

43110-19B20

1
Out of stock

2

BOLT

09103-06106

1
Out of stock

3

WASHER, INNER This part replaces 09160-06096.

09160-06135

1
Out of stock

4

.NUT This part replaces 08319-21065.

08319-2106B

1
Out of stock

5

O RING

09280-17002

2
Out of stock

6

.COTTER PIN This part replaces 04111-20158.

04111-2015A

1
Out of stock

7

SPRING

09443-15032

1
Out of stock

8

BOLT

01500-06207

1
Out of stock

9

.NUT | MODEL H/J/K/L/M/N/P This part replaces 08310-11067.

08310-00067

1
Out of stock

9

NUT | MODEL R/S This part replaces 08310-00063.

08310-0006A

1
Out of stock
