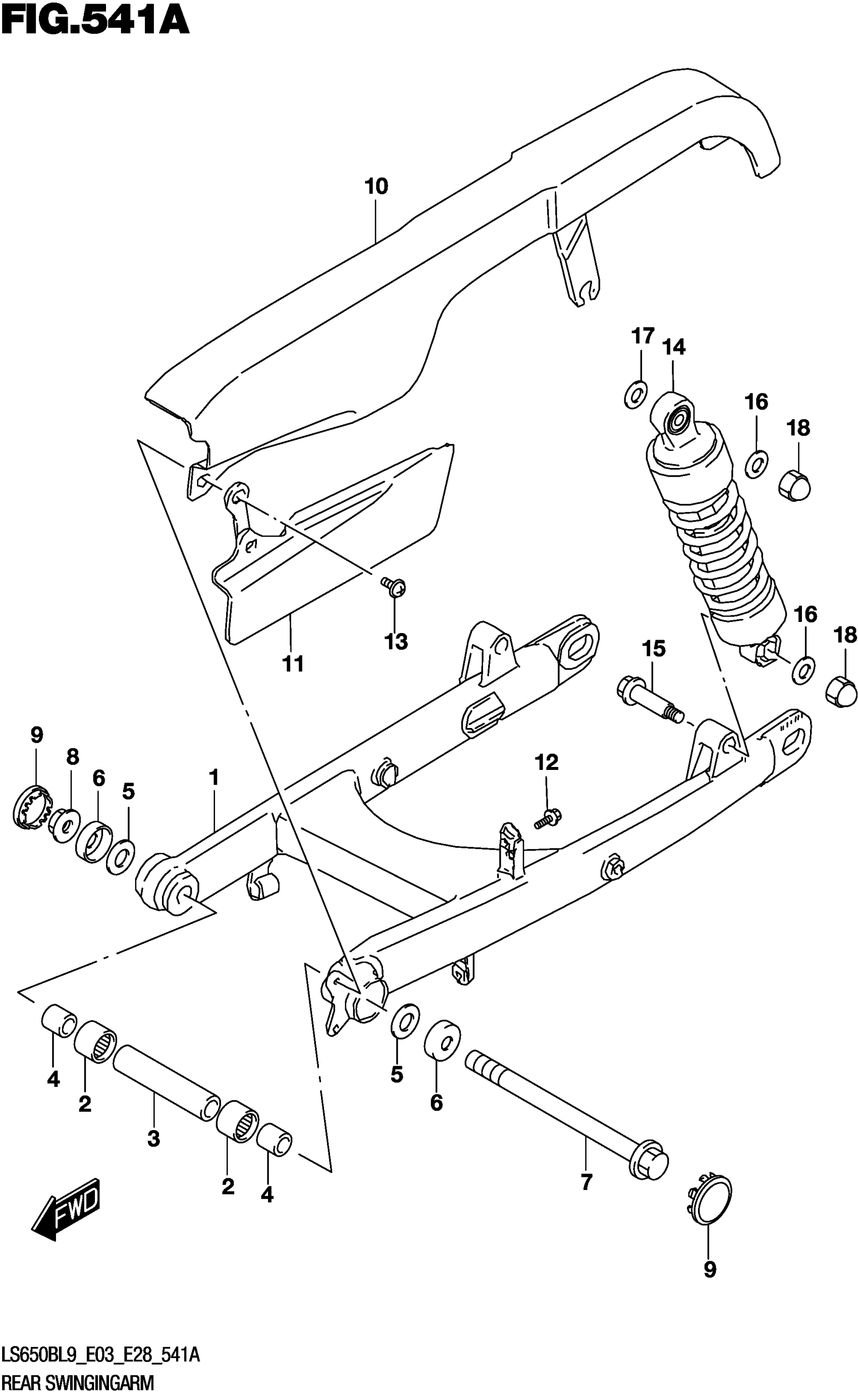

Suzuki LS650BL9 (2019) REAR SWINGINGARM Diagram

#

Description
Price

1

SWINGING ARM

61100-24B03-019

Unavailable

2

.BEARING (22X29X30)

09263-22017

$20.38

3

SPACER

61282-24B01

Unavailable

3

SPACER

61282-24B01

Unavailable

4

SPACER

61251-24B00

$23.08

4

SPACER

61251-24B00

$23.08

5

WASHER

08211-14341

$3.72

6

DUST SEAL

61262-45002

$7.51

6

DUST SEAL

61262-45002

$7.51

7

SHAFT

61211-24B00

Unavailable

8

NUT

08319-3114A

$8.84

9

CAP

61222-38A01

$15.07

10

BELT CASE

61310-24B10

$398.95

11

BELT CASE

61320-24B10

$198.77

12

BOLT

01550-0612A

$1.97

13

SCREW

02112-7612B

$3.10

14

SHOCK ABSORBER ASSY

62100-24B00

$397.75

15

BOLT

62313-24B00

$13.50

15

BOLT

62313-24B00

$13.50

16

WASHER (10.5X28X2.3)

09160-10035

$1.80

17

WASHER,14.5X29X2.3 (14.5X29X2

09160-14009

$2.80

18

NUT

08313-10107

$2.53
