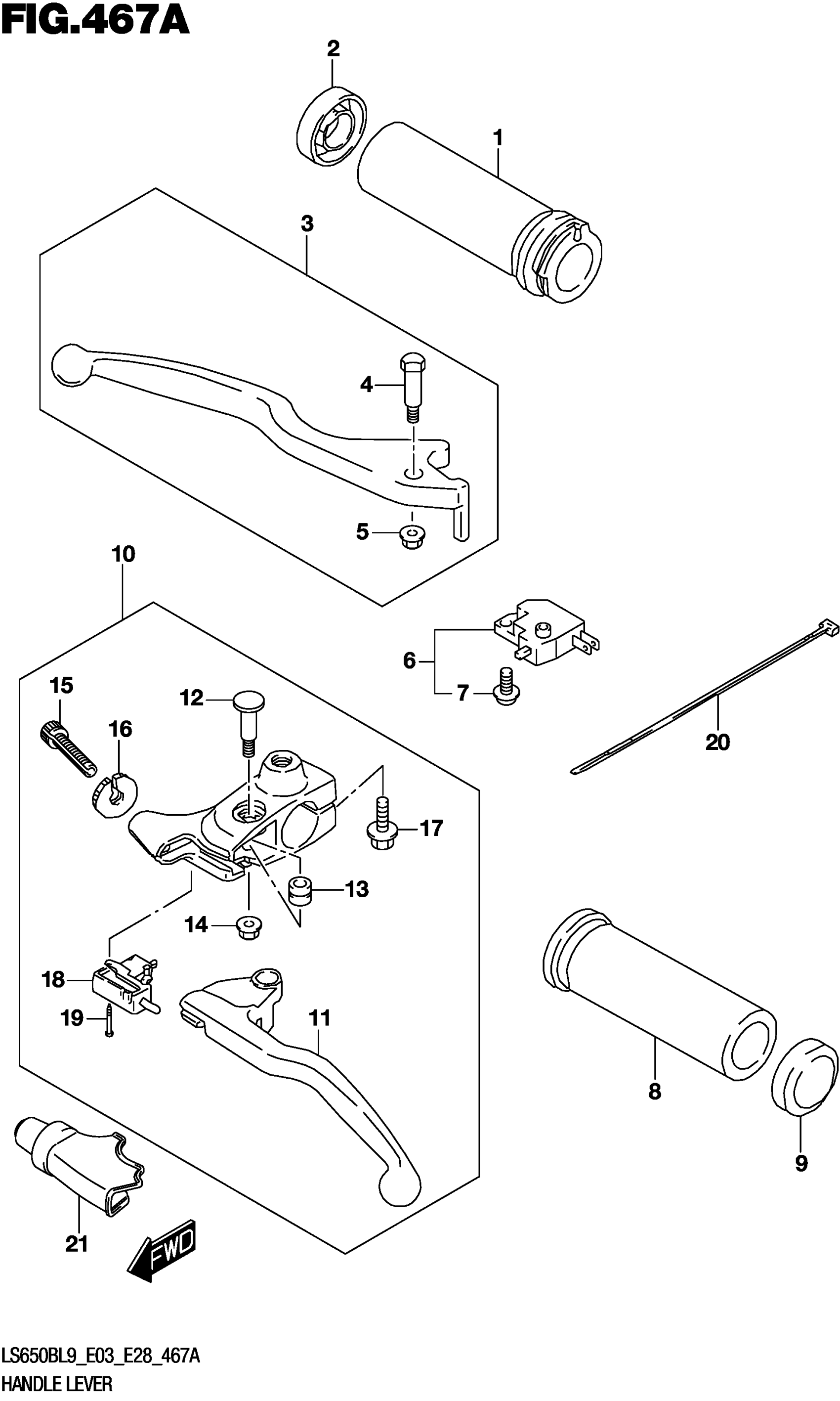

Suzuki LS650BL9 (2019) HANDLE LEVER Diagram

#

Description
Price

1

GRIP COMP,THROT This part replaces 57110-26D00.

57110-26D01

$53.63

2

CAP,GRIP,END

57216-38A00

$6.91

3

LEVER ASSY

57300-24BA0

$32.10

4

.BOLT

57431-38A10

$10.42

5

.NUT

08319-2106A

$1.97

6

SWITCH ASSY,FR BRAKE This part replaces 57460-14J01.

57460-14J02

$36.79

7

.SCREW,WITH WASHER (4X12)

57465-17C00

$2.37

8

GRIP,L This part replaces 57210-26D00.

57210-26D01

$28.92

9

CAP,GRIP,END

57216-38A00

$6.91

10

LEVER ASSY,CLUT This part replaces 57500-24BA0.

57500-24BA1

$54.50

11

.LEVER

57620-24BA0

$31.45

12

.BOLT

57531-24B00

$9.97

13

.SPACER

57623-24B00

$6.00

14

.NUT

08319-2106A

$1.97

15

.ADJUSTER, WIRE This part replaces 57441-45C00.

57441-45C01

$8.67

16

.NUT, LOCK This part replaces 57442-45C00.

57442-45C01

$8.27

17

.BOLT

07130-06207

$2.88

18

.SWITCH,CLUTCH

57560-05A00

$11.63

19

.SCREW

02112-0320B

$4.61

20

CLAMP (L:250)

09407-25402

$4.32

21

COVER,CLUTCH LE This part replaces 57661-48E00.

57661-48E01

$10.92
