1981 Yamaha LC50 (LC50H) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1981 Yamaha LC50 (LC50H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

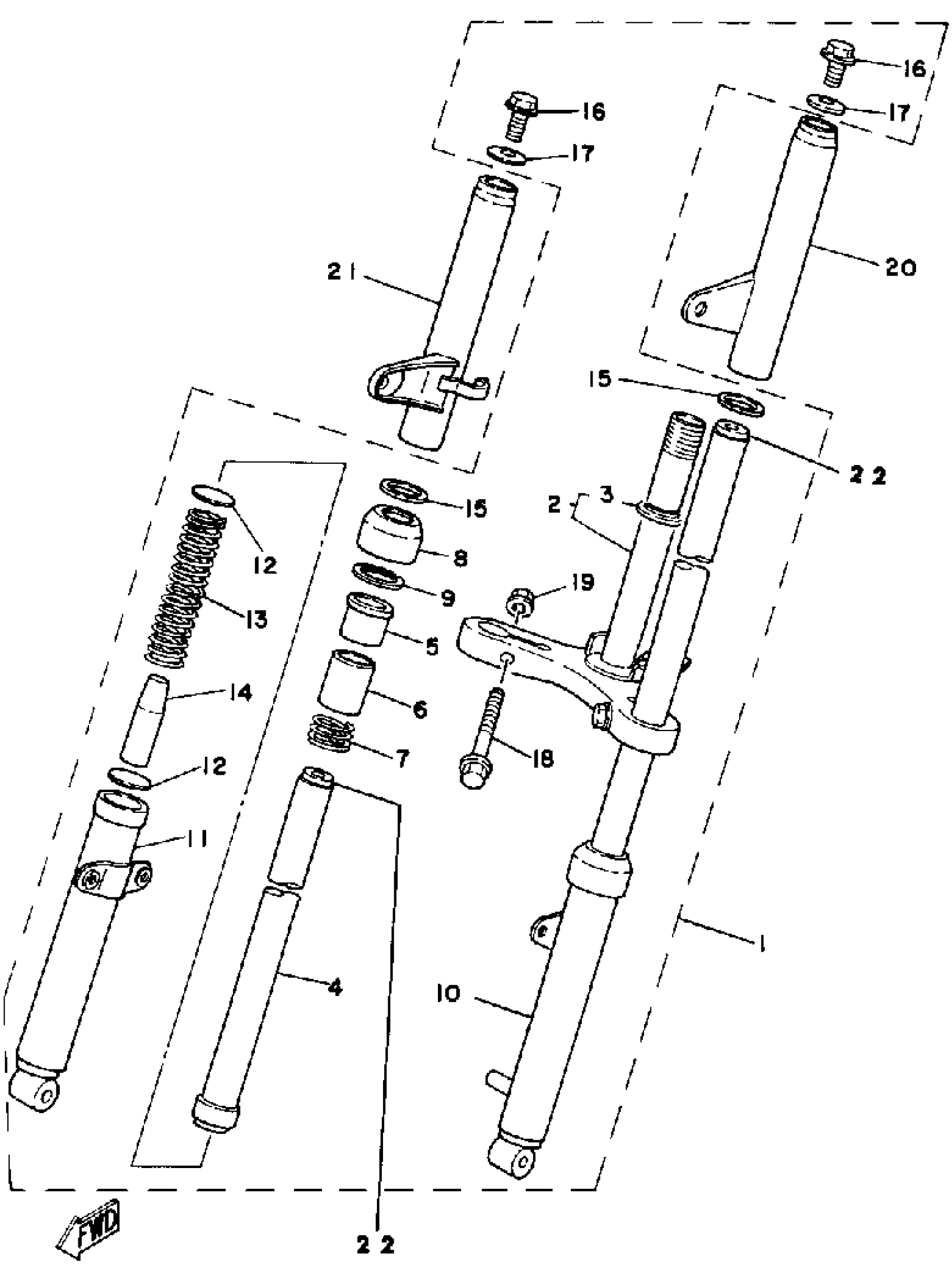

1981 Yamaha LC50 (LC50H) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

3L9-23101-00-00

1
Out of stock

2

UNDER BRACKET

(3L6-23340-00-35)

1
Out of stock

3

RACE, BALL 4

3YJ-23414-00-00

1

$5.46

In stock

4

INNER TUBE 1

(18U-23110-00-00)

1
Out of stock

5

METAL, SLIDE 1

(3L6-23125-00-00)

1
Out of stock

6

COLLAR

(3L6-23113-00-00)

1
Out of stock

7

SPRING, REBOUND

(3L6-23151-01-00)

1
Out of stock

8

SEAL, DUST

(3L6-23144-00-00)

1
Out of stock

9

CIRCLIP, INNER

(93450-34064-00)

1
Out of stock

10

. OUTER TUBE LH

3L6-23106-00-35

1
Out of stock

11

OUTER TUBE RH

(3L6-23107-00-35)

1
Out of stock

12

. SEAT, SPRING LOWER

3L6-23143-00-00

1
Out of stock

13

SPRING, FRONT FORK

(3L6-23141-02-00)

1
Out of stock

14

RUBBER

3L6-23195-01-00

1
Out of stock

15

GUIDE, COVER UPPER

(5U4-23115-00-00)

1
Out of stock

16

BOLT 1222345100

90105-10006-00

—

$9.17

In stock

17

WASHER PLATE (3L6)

90201-10742-00

—

$6.80

In stock

18

BOLT, FLANGE

95817-08055-00

—

$2.82

In stock

19

NUT, FLANGE

95704-08500-00

—
Out of stock

20

COVER, UPPER 1

(3L9-23121-01-4G)

1
Out of stock

20

COVER, UPPER 1

(3L9-23121-01-E1)

1
Out of stock

21

COVER, UPPER 2

(3L9-23131-01-4G)

1
Out of stock

21

COVER, UPPER 2

(3L9-23131-01-E1)

1
Out of stock

22

UNAVAILABLE IN PRICE BOOK

4K7-23175-00-00

1
Out of stock
