1981 Yamaha LC50 (LC50H) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1981 Yamaha LC50 (LC50H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

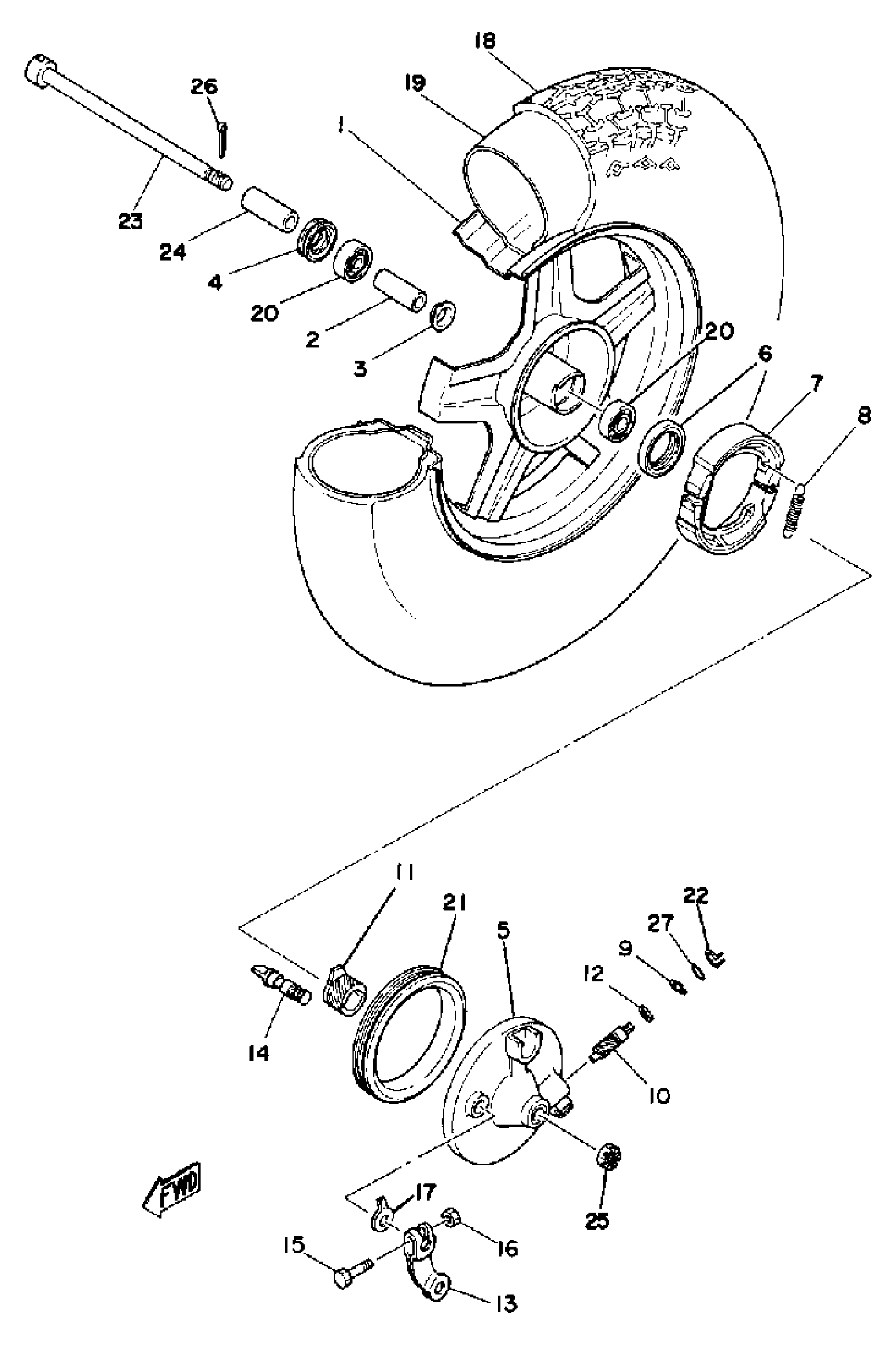

1981 Yamaha LC50 (LC50H) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, FRONT

(3L6-25180-01-35)

1
Out of stock

2

SPACER 451251170000

90560-10103-00

1

$15.43

In stock

3

FLANGE, SPACER 2

2E9-25116-00-00

1

$6.38

In stock

4

OIL SEAL (2E9)

93106-17015-00

1

$9.71

In stock

5

PLATE, BRAKE SHOE

(3L6-25121-01-35)

1
Out of stock

6

OIL SEAL(2JA)

93109-34057-00

1

$4.20

In stock

7

BRAKESHOE SET-2PCS

451-W2535-00-00

1
Out of stock

8

1

$7.51

In stock

9

RING, STOP

2T4-25137-00-00

—

$3.15

In stock

10

GEAR, METER

(5G3-25138-00-00)

1
Out of stock

11

GEAR, DRIVE

3L6-25135-00-00

1
Out of stock

12

WASHER,PLATE (2JA)

90201-064L6-00

—

$4.11

In stock

13

LEVER, CAMSHAFT 1

(3L6-25155-00-00)

1
Out of stock

14

CAMSHAFT

4K5-25351-00-00

1
Out of stock

15

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

16

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

17

INDICATOR

3L8-2513A-00-00

—

$6.38

In stock

18

350-10 ML3-A

94135-106M2-00

1
Out of stock

19

TUBE

94235-10142-00

1
Out of stock

20

BEARING (3R0)

93306-20009-00

—

$38.79

In stock

21

RING 2

(2T4-25336-00-00)

1
Out of stock

22

RING (STOP)

2E9-25137-01-00

—

$6.46

In stock

23

AXLE, WHEEL KIT

99999-02216-00

1
Out of stock

24

COLLAR

90387-10728-00

1
Out of stock

25

NUT 3532518200

90171-10004-00

—

$5.32

In stock

26

PIN, COTTER

91490-20025-00

—

$1.31

In stock

27

O-RING (611)

93210-10096-00

—

$3.11

In stock
