1981 Yamaha LC50 (LC50H) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1981 Yamaha LC50 (LC50H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

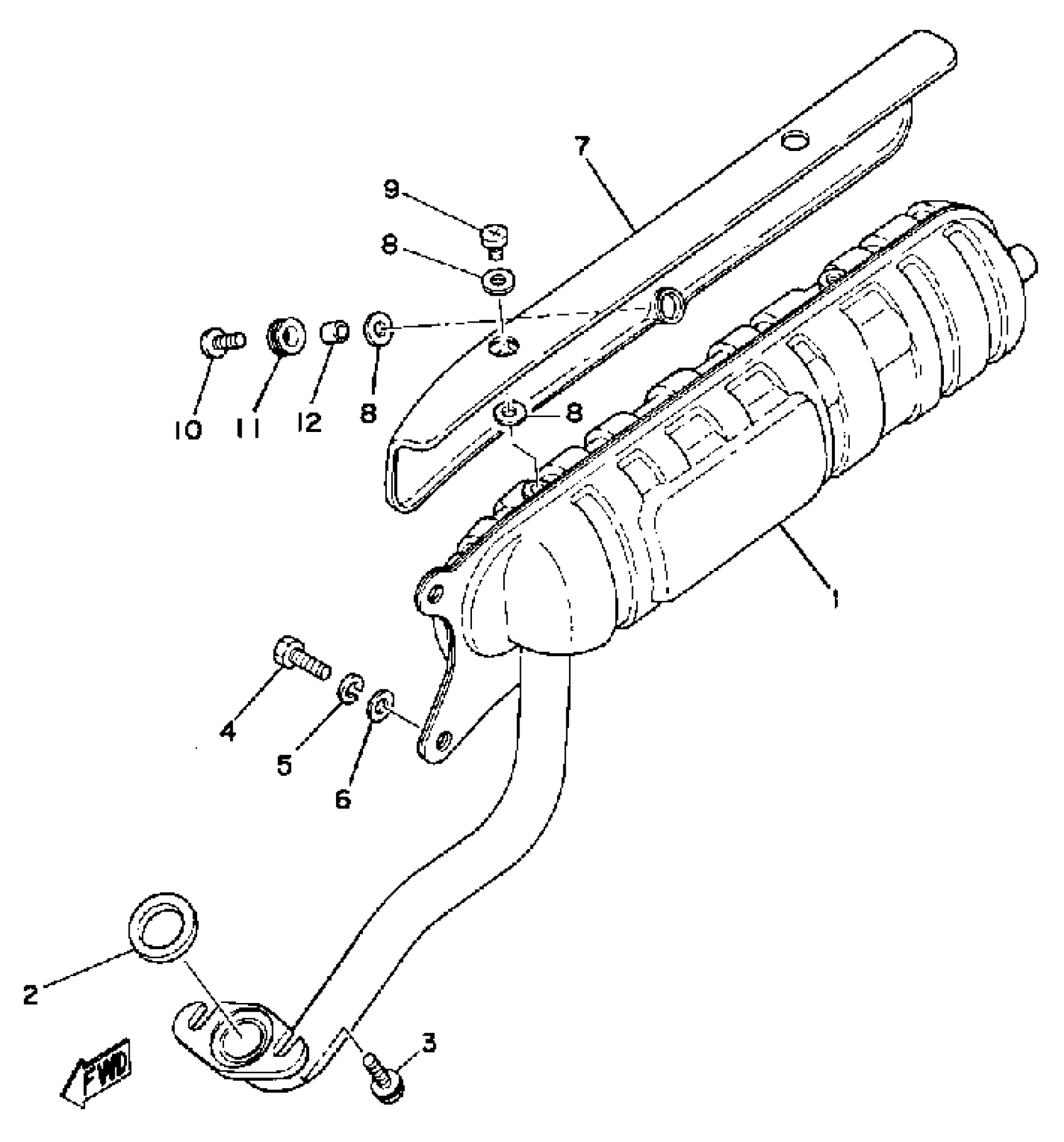

1981 Yamaha LC50 (LC50H) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASY L

18U-14610-00-00

1
Out of stock

2

GASKET, EXHAUST PIPE

2E9-14613-10-00

1

$7.34

In stock

3

SCREW, HEXAGON(1YU)

90153-06061-00

1

$6.18

In stock

4

BOLT, HEXAGON

97013-08020-00

1

$1.54

In stock

5

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

6

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

7

PROTECTOR, MUFF 1

3L6-14718-00-93

1
Out of stock

8

WASHER, PLATE(3AJ)

90202-05191-00

1

$6.01

In stock

9

SCREW PAN HEAD

98580-06010-00

1

$6.17

In stock

10

SCREW, BIND(J45)

98980-06012-00

1

$4.70

In stock

11

GROMMET (2T4)

90480-12237-00

1

$1.95

In stock

12

COLLAR 8121444900

90387-06023-00

1

$7.66

In stock
