1981 Yamaha LC50 (LC50H) Cylinder Diagram

← All diagrams

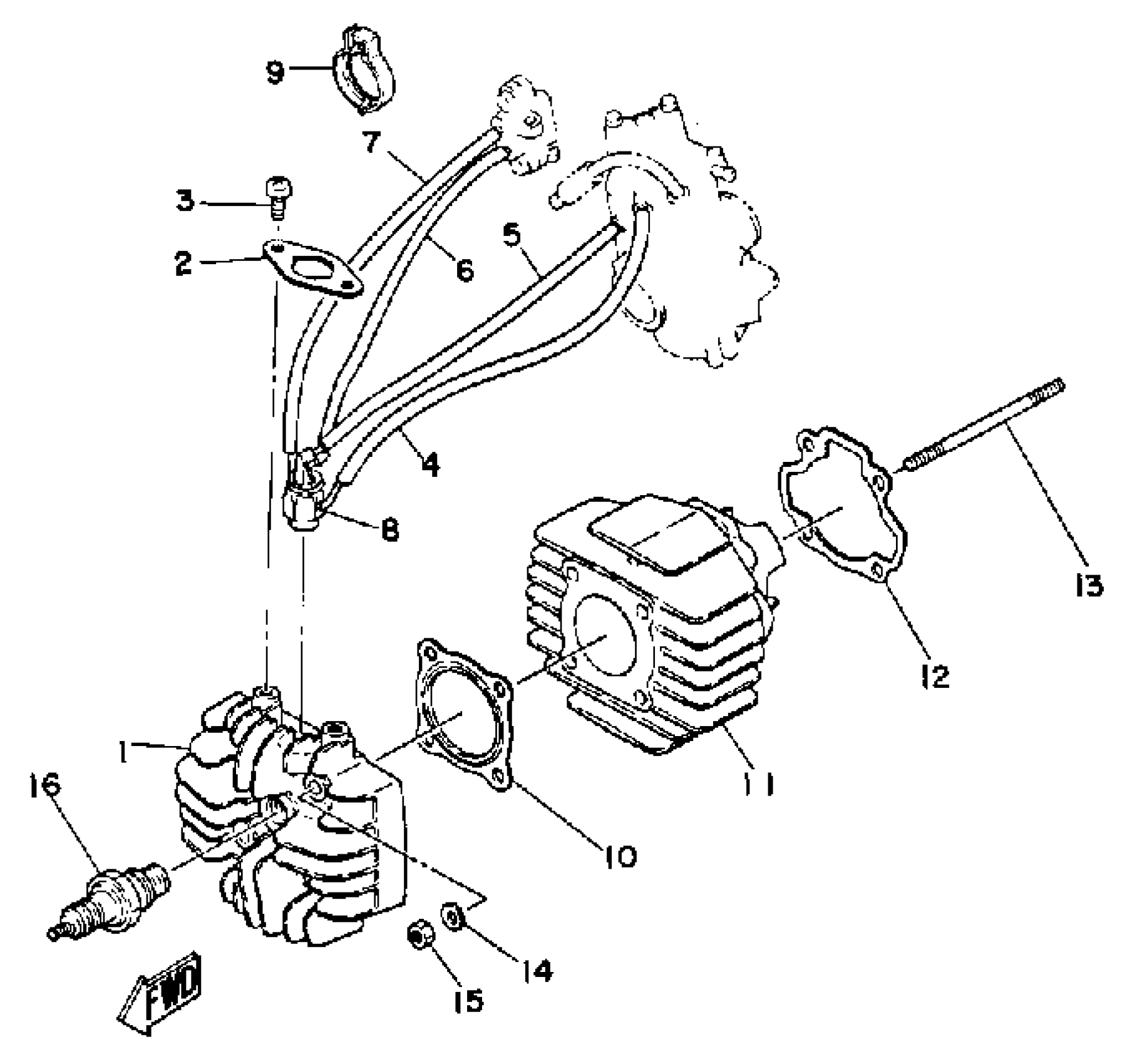

Find the part on the Cylinder diagram for your 1981 Yamaha LC50 (LC50H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha LC50 (LC50H) Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD, CYLINDER 1

(3L6-11111-00-00)

1
Out of stock

2

PLATE

2T4-1111F-00-00

1
Out of stock

3

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

4

HOSE (L400)

90445-082A9-00

1
Out of stock

5

HOSE (L400)

90445-082A9-00

1
Out of stock

6

HOSE (L400)

90445-082A9-00

1
Out of stock

7

HOSE (L400)

90445-082A9-00

1
Out of stock

8

VALVE, BIMETAL (3L6-14399-02-00)

3L6-14399-02-00

1
Out of stock

9

CLAMP

(90464-16035-00)

1
Out of stock

10

GASKET, CYLINDER HEAD 1

517-11181-01-00

1

$5.60

In stock

11

CYLINDER 1

3L6-11311-01-00

1
Out of stock

12

GASKET, CYLINDER

3PT-11351-00-00

1

$8.70

In stock

13

BOLT, STUD

90116-06269-00

1
Out of stock

14

WASHER, PLATE

90201-06045-00

1

$6.18

In stock

15

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

16

BPR4HS NGK SPLUG 10PK

BPR-4HS00-00-00

1

$3.89

In stock
