1981 Yamaha LC50 (LC50H) Crankcase Diagram

← All diagrams

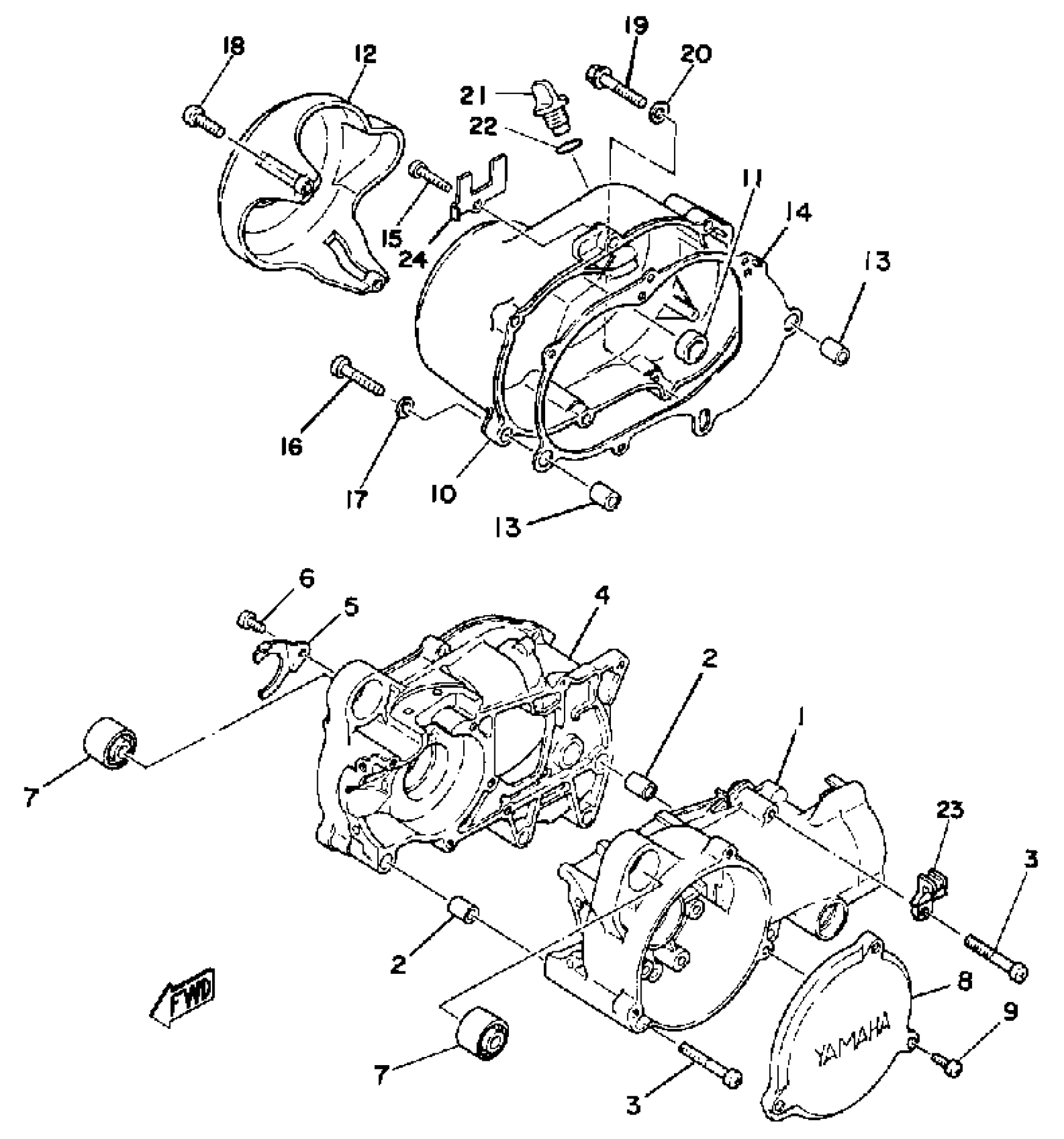

Find the part on the Crankcase diagram for your 1981 Yamaha LC50 (LC50H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha LC50 (LC50H) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE 1

(3L9-15111-00-00)

1
Out of stock

2

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

3

SCREW PAN HEAD

98580-06545-00

1

$5.78

In stock

4

CRANKCASE 2

3L5-15121-00-00

1
Out of stock

5

HOLDER

3L5-15128-00-00

—

$3.20

In stock

6

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

7

DAMPER, ENG MOUNT 1

(3L6-15316-00-00)

1
Out of stock

8

BUSH 1

3L5-17112-02-00

1

$14.26

In stock

9

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

10

COVER, CRANKCASE R

(3L6-15421-00-00)

1
Out of stock

11

BUSH 1

3L5-17112-02-00

1

$14.26

In stock

12

PROTECTOR

(3L6-15491-00-00)

1
Out of stock

13

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

14

GASKET, CRANKCASE COVER 1

3L5-15451-12-00

1

$17.02

In stock

15

SCREW, PAN HEAD(6H4)

97885-06035-00

1

$6.38

In stock

16

SCREW, PAN HEAD(6H4)

97885-06035-00

1

$6.38

In stock

17

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

18

SCREW, PAN HEAD (76T)

98517-06025-00

—

$3.12

In stock

19

BOLT, FLANGE

95817-08035-00

—

$6.68

In stock

20

WASHER, PLATE 3411117500

90201-08087-00

—

$3.13

In stock

21

PLUG, OIL

4J2-15363-10-00

—

$3.78

In stock

22

O-RING (26H)

93210-14579-00

—

$5.69

In stock

23

CLAMP

(90462-10050-00)

1
Out of stock

24

CLAMP 2

(3L6-15484-00-00)

1
Out of stock
