1981 Yamaha LC50 (LC50H) Carburetor Diagram

← All diagrams

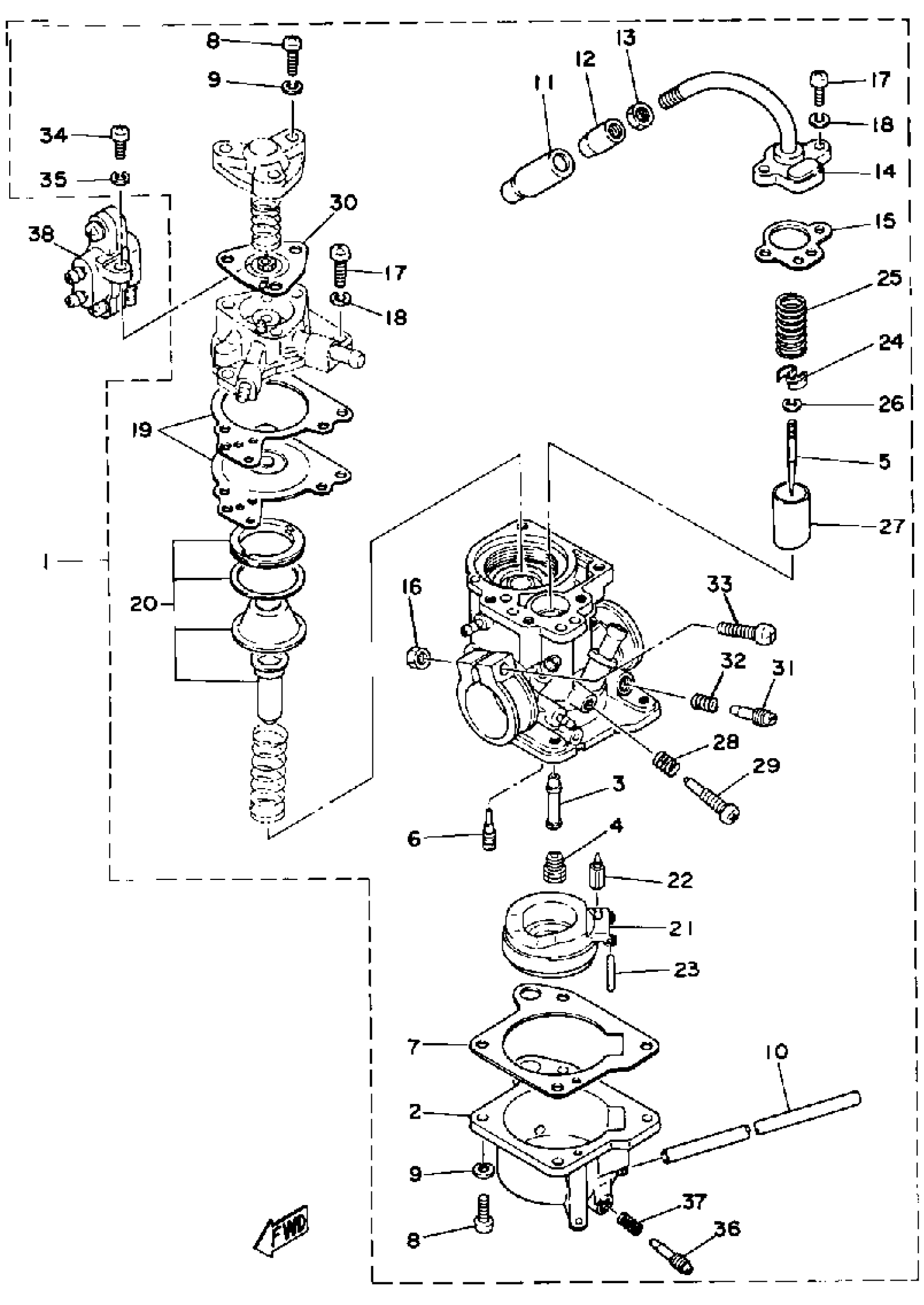

Find the part on the Carburetor diagram for your 1981 Yamaha LC50 (LC50H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha LC50 (LC50H) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

4K7-14101-00-00

1
Out of stock

2

BODY, FLOAT CHMBR 1

(3L6-14181-07-00)

1
Out of stock

3

. NOZZLE, MAIN

3L7-14141-10-00

1
Out of stock

4

JET, MAIN (# 75)

620-14231-15-00

1
Out of stock

4

JET, MAIN (# 80)

620-14231-16-00

—

$9.75

In stock

4

.. JET, MAIN #1325

620-14231-99-A0

1
Out of stock

5

NEEDLE SET

36R-1490J-00-00

1

$23.86

In stock

6

. JET, PILOT #20

3L6-14142-20-00

1
Out of stock

7

. JET, PILOT #20

3L6-14142-20-00

1
Out of stock

8

SCREW, PAN HEAD(GA5)

98580-04014-00

1

$2.78

In stock

9

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

10

PIPE

23F-14197-00-00

1

$24.11

In stock

11

CAP

1R0-14169-00-00

1

$7.58

In stock

12

CABLE ADJUST SCREW SET

17L-14106-00-00

1

$6.86

In stock

13

NUT, WIRE ADJUSTING

127-14161-00-00

1

$7.20

In stock

14

TOP, MIXING CHAMBER

(3L6-14158-00-00)

1
Out of stock

15

GASKET

(3L6-14198-00-00)

1
Out of stock

16

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

17

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

18

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

19

. DIAPHRAGM

3L6-24471-01-00

1
Out of stock

20

PLUNGER KIT

(3L6-W0018-00-00)

1
Out of stock

21

FLOAT

3L6-14185-01-00

—

$57.25

In stock

22

NEEDLE VALVE ASSY

3L5-14190-01-00

—

$31.67

In stock

23

PIN, FLOAT

603-14186-00-00

—

$7.09

In stock

24

. SEAT, SPRING

3L6-14136-01-00

1
Out of stock

25

SPRING, THRTL VALVE

(3L6-14131-00-00)

1
Out of stock

26

CLIP

127-14137-00-00

—

$5.11

In stock

27

VALVE, THROTTLE (CA4.0)

3L5-14112-40-00

—

$76.62

In stock

28

. SPRING, THRTL STOP

3L6-14133-00-00

1
Out of stock

29

THROTTLE SCREW SET

36R-14103-00-00

—

$25.12

In stock

30

. DIAPHRAGM ASSEMBLY

3L6-14940-00-00

1
Out of stock

31

AIR SCREW SET

36R-14104-00-00

—

$8.77

In stock

32

. SPRING, AIR ADJUSTING

3F7-14134-00-00

1
Out of stock

33

SCREW, PAN HEAD

98517-05030-00

—

$7.92

In stock

34

SCREW, PAN HEAD

98507-04018-00

—
Out of stock

35

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

36

AIR SCREW SET

36R-14104-00-00

—

$8.77

In stock

37

. SPRING, AIR ADJUSTING

3F7-14134-00-00

1
Out of stock

38

VALVE, CHECK SEAT

3L6-14272-01-00

1
Out of stock
