1981 Yamaha LC50 (LC50H) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1981 Yamaha LC50 (LC50H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

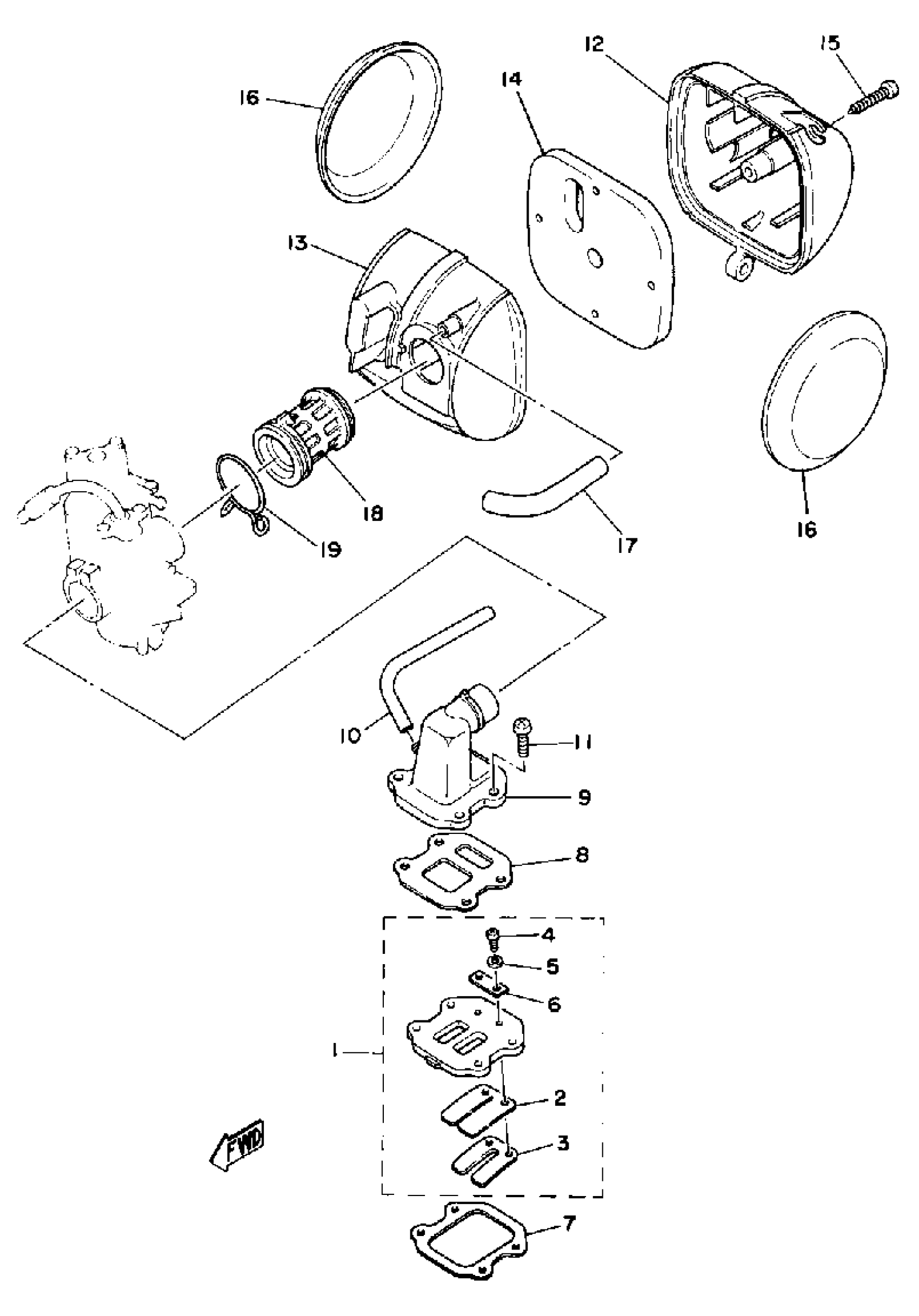

1981 Yamaha LC50 (LC50H) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSY

3L5-13610-00-00

1

$69.08

In stock

2

REED VALVE

3L5-13613-00-00

1

$37.52

In stock

3

STOPPER, REED VALVE

3L5-13616-00-00

1

$8.78

In stock

4

SCREW PAN HEAD

98580-03010-00

1

$6.68

In stock

5

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

6

PLATE, REED VALVE

3L5-13624-00-00

—

$6.38

In stock

7

GASKET, VALVE SEAT

3HK-13621-00-00

1

$17.52

In stock

8

GASKET, VALVE SEAT

3L5-13622-10-00

1

$24.83

In stock

9

MANIFOLD, INTAKE

(3L6-13555-00-00)

1
Out of stock

10

HOSE (L200)

90445-07176-00

1

$7.11

In stock

11

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

12

CASE, CLEANER 1

3L6-W1441-00-00

1
Out of stock

13

CAP, CLEANER CASE 1

(3L6-14412-00-00)

1
Out of stock

14

ELEMENT, AIR CLNR

3L6-14451-00-00

1
Out of stock

15

—

$5.77

In stock

16

COVER, CLNR CASE 1

3L6-1441A-00-00

1
Out of stock

17

PIPE, SUCTION 1

3L6-14423-00-00

1
Out of stock

18

JOINT, AIR CLNR 1

3L6-14453-00-00

1
Out of stock

19

CLIP 296144550000

90467-20023-00

—

$3.55

In stock
