1981 Yamaha LC50 (LC50H) Fuel Tank Diagram

← All diagrams

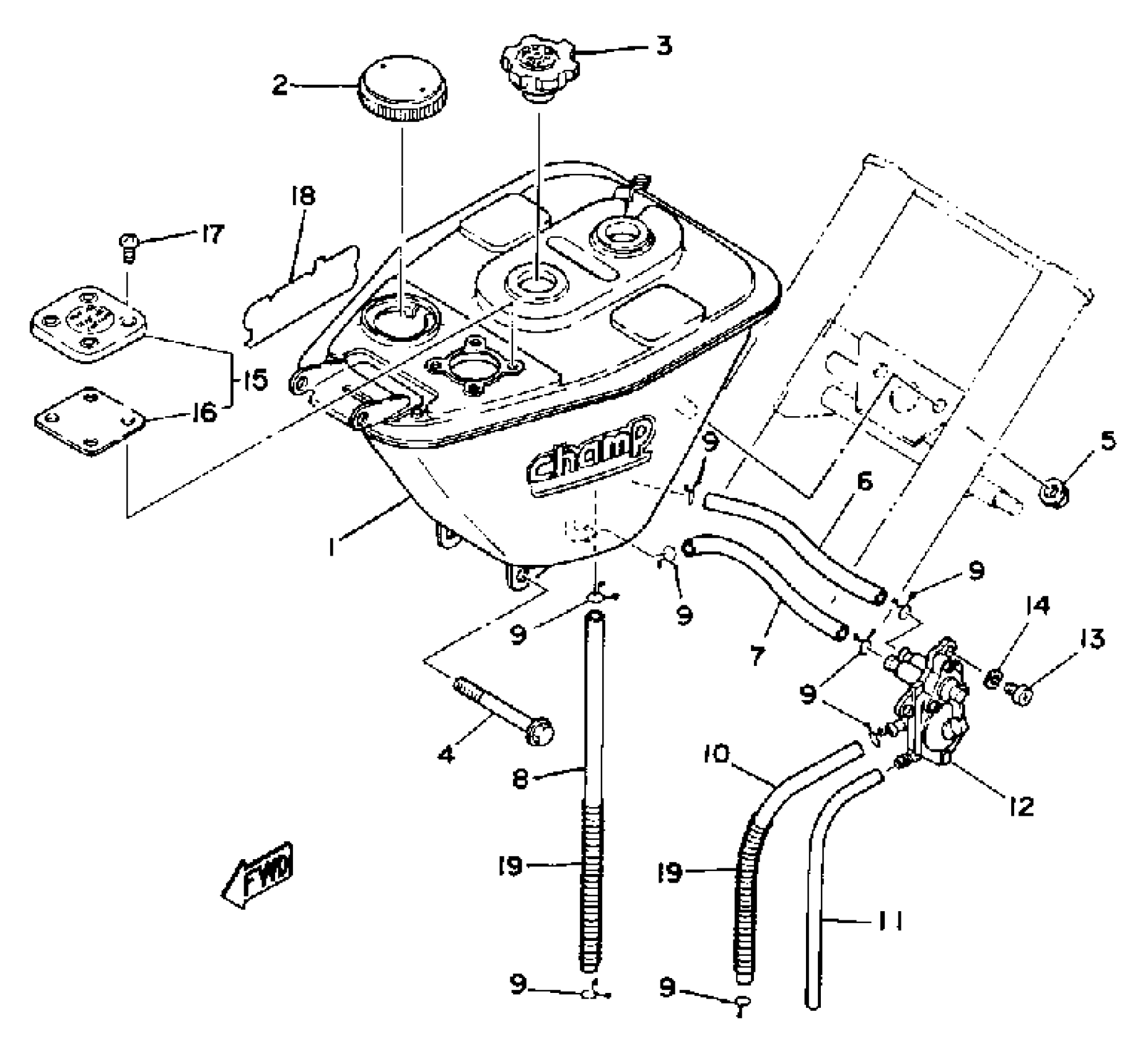

Find the part on the Fuel Tank diagram for your 1981 Yamaha LC50 (LC50H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha LC50 (LC50H) Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

(3L6-24110-00-4G)

1
Out of stock

1

FUEL TANK

3L6-24110-00-E1

1
Out of stock

2

CAP ASSY

22F-24610-10-00

—
Out of stock

3

. OIL TANK CAP ASSY

52W-21770-00-00

1
Out of stock

4

BOLT, FLANGE(JN5)

95817-08070-00

1
Out of stock

5

NUT, FLANGE

95704-08500-00

1
Out of stock

6

HOSE (L420)

90445-092K1-00

1
Out of stock

7

HOSE (L420)

90445-092K1-00

1
Out of stock

8

HOSE (L420)

90445-092K1-00

1
Out of stock

9

CLIP 101235600

90467-08003-00

1
Out of stock

10

HOSE (L420)

90445-092K1-00

1
Out of stock

11

HOSE (L200)

90445-07176-00

1
Out of stock

12

FUEL COCK ASSEMBLY 1

3L9-24500-00-00

1
Out of stock

13

SCREW, PAN HEAD(62J)

97885-06012-00

1
Out of stock

14

WASHER, SPRING

92995-06100-00

1
Out of stock

15

CAP ASSEMBLY

3L8-24610-00-00

1
Out of stock

16

GASKET, FUEL METER

(3L5-24268-00-00)

1
Out of stock

17

BOLT, WITH WASHER

90119-05071-00

—
Out of stock

18

EMBLEM 1

(3L9-24231-00-00)

1
Out of stock

19

SPRING, COMPRESSION

90504-06023-00

1
Out of stock
