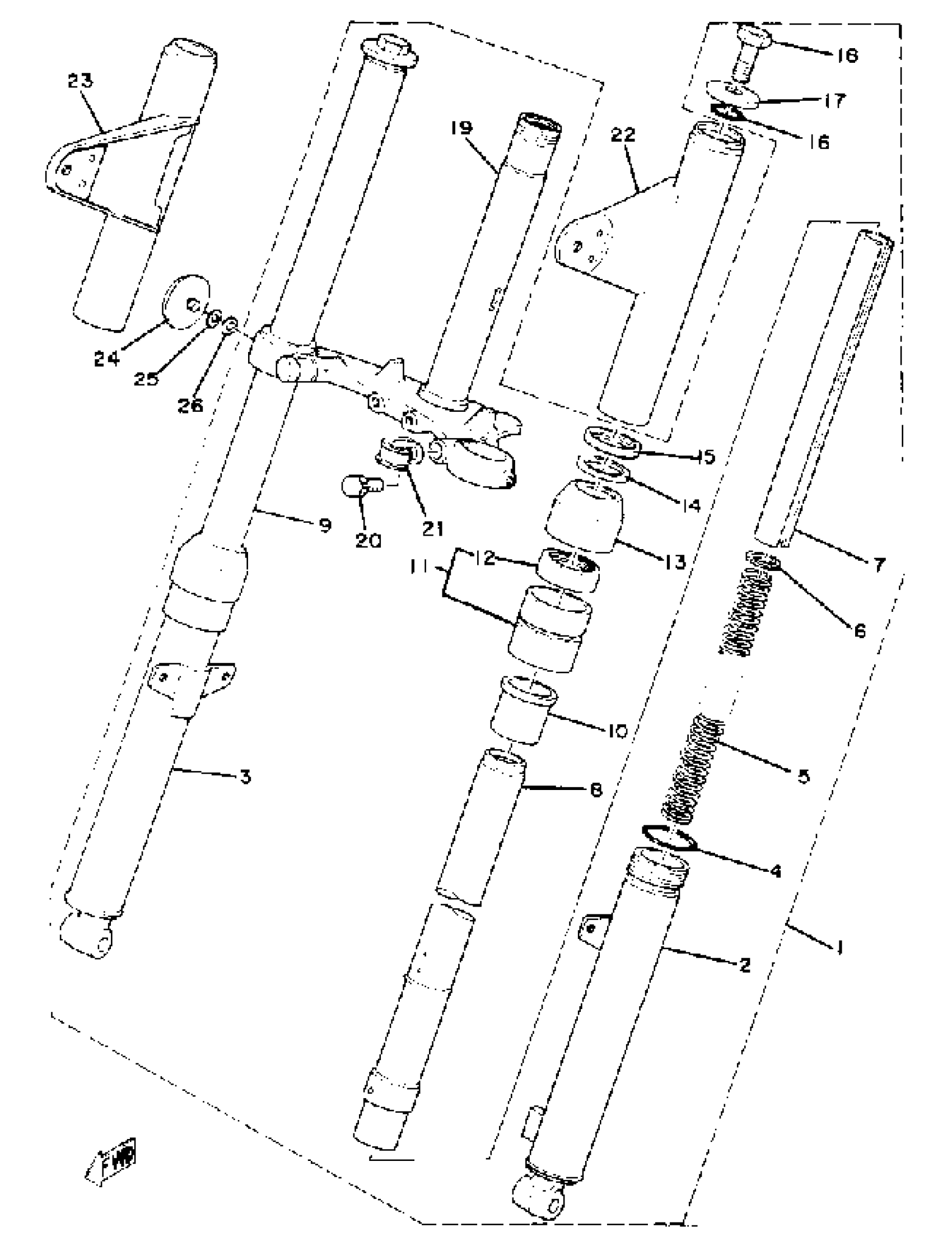

Find the part on the Front Fork diagram for your 1976 Yamaha LB802A (LB802AC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha LB802A (LB802AC) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(439-23101-02-35)

1
Out of stock

2

TUBE, OUTER 1

(439-23126-00-35)

1
Out of stock

3

TUBE, OUTER 2

(439-23136-00-35)

1
Out of stock

4

O-RING

207-23147-00-00

1

$10.29

In stock

5

SPRING, FRONT FORK

367-23141-60-00

1
Out of stock

6

WASHER, SPRING UPR

(290-23149-00-00)

1
Out of stock

7

SPACER, OIL LOCK

(367-23166-60-00)

1
Out of stock

8

TUBE, INNER 1

(164-23124-00-00)

1
Out of stock

9

TUBE,INNER 2

439-23134-00-00

1
Out of stock

10

. METAL, SLIDE 1

109-23125-00-00

1
Out of stock

11

. OUTER NUT

290-23150-01-00

1
Out of stock

12

OIL SEAL

109-23145-01-00

1

$26.86

In stock

13

SEAL, DUST

290-23144-00-00

1

$20.26

In stock

14

PACKING(LAMP STAY)

164-23163-00-00

1

$6.46

In stock

15

GUIDE, COVER UPPER

(354-23115-90-00)

1
Out of stock

16

GASKET

307-23114-00-00

—
Out of stock

17

WASHER, CAP

207-23112-00-00

—

$21.37

In stock

18

. BOLT, CAP

395-23111-00-00

1
Out of stock

19

. UNDER BRACKET

2T5-23340-00-33

1
Out of stock

20

BOLT 1

(1M3-23346-00-00)

1
Out of stock

21

. HOLDER, CABLE 1

260-23318-40-00

1
Out of stock

22

COVER, UPPER 1

439-23121-00-K9

1
Out of stock

23

COVER, UPPER 2

439-23131-00-K9

1
Out of stock

24

REFLECTOR, FRONT 1

355-85111-01-00

—
Out of stock

25

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

26

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock
